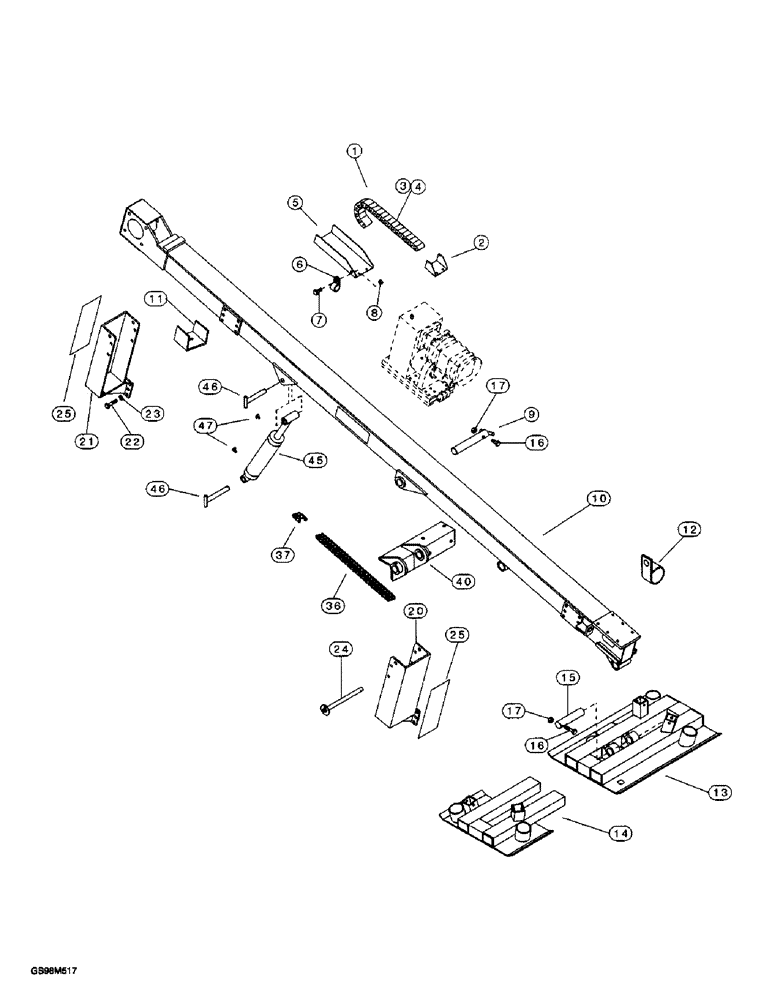

Запчасти Case 400TX (9-14) - BOOM

TX401290

TUBE

ASSEMBLY - power, Includes: Ref. 1 - 4

1шт.

1

01290011

TUBE

- power, 12 inch section

1шт.

2

01290111

TUBE

BRACKET - power tube (Set of 2)

1шт.

3

TX401291

WASHER

- nylatron, 1/8 x 3/4 x 7/32 inch

1шт.

4

93121330

SCREW,#8 - 32 x 3", Aluminum

- special

1шт.

5

TX440120

BRACKET

- power tube, lower

1шт.

6

00266818

CLIP

CLAMP - hose, 7/8 inch

1шт.

7

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

8

NSS

NOT SOLD SEPARAT

NUT - hex lock, 3/8 inch NC

1шт.

9

TX440115

PIN

- boom pivot

1шт.

10

TX440107

BOOM

- thrust

1шт.

11

TX440163

CLAMP

- hose

7шт.

12

0033118

CLAMP

- hanger, 2 inch

1шт.

13

TX440137

PAD, RUBBER

PAD - front stabilizer, left-hand fixed, 3 inch auger hole

1шт.

13

85040348

PAD

- front stabilizer, left-hand fixed, 4-1/2 inch auger hole

1шт.

14

TX440142

PAD, RUBBER

PAD - front stabilizer, right-hand removable, 3 inch auger hole

1шт.

14

85040351

PAD, RUBBER

PAD - front stabilizer, right-hand removable, 4-1/2 inch auger hole

1шт.

15

30120122

PIN

- hold down

1шт.

16

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

2шт.

17

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

2шт.

20

TX440353

RACK

- rod, front

1шт.

21

TX440352

RACK

- rod, rear

1шт.

22

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

12шт.

23

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

24

TX440165

PIN

- drill rod retaining

2шт.

25

291671A1

DECAL

- model, 400TX

2шт.

36

TX408020

CHAIN (AG)

CHAIN - roller

1шт.

37

00110112

CONNECTING LINK

LINK - connector, chain

2шт.

40

TX440101

BRACKET

- boom pivot

1шт.

45

00450010

CYLINDER ASSY.

CYLINDER - boom pivot

1шт.

46

TX452112

PIN

- attaching

2шт.

47

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, 7/16-20 inch flare x adj O-ring boss, Includes: Ref. 48

2шт.

48

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.
