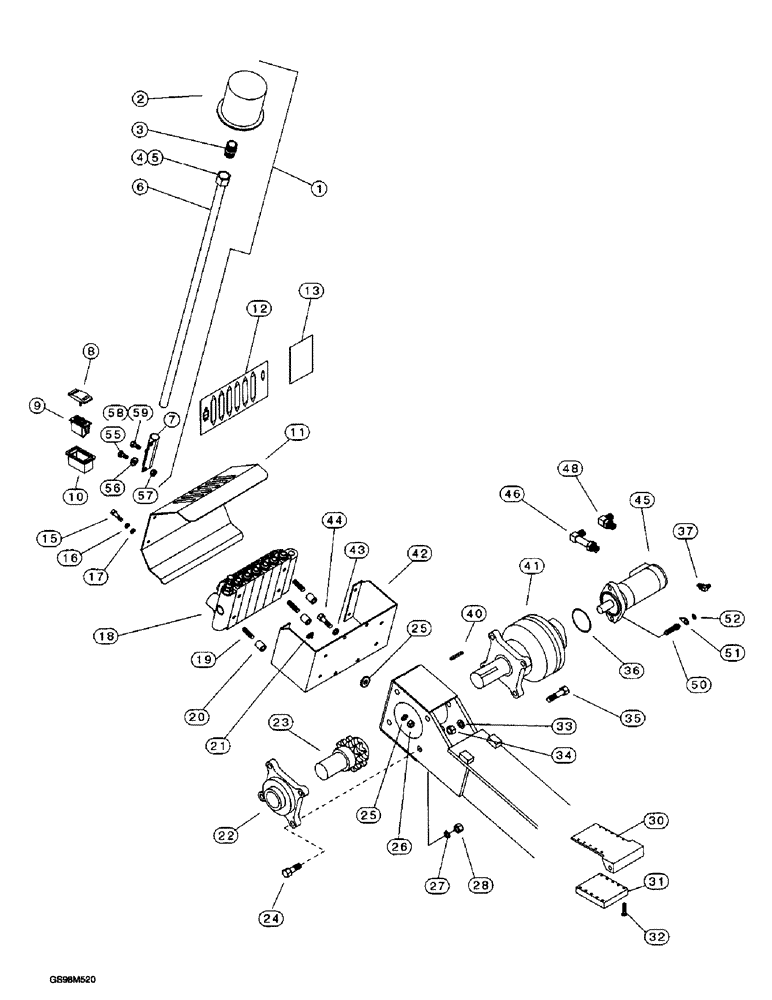

Запчасти Case 400TX (9-10) - TRANSPORT CONTROL CENTER

1

TX410022

ASSEMBLY

LAMP ASSEMBLY - strobe, Includes: Ref. 2 - 6

1шт.

2

00410013

END FITTING

LAMP - strobe

1шт.

3

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

CONNECTOR - straight, 1-5/16-12 flare x 1 inch PT

1шт.

4

218-368

SLEEVE,37 Degree, 1" Tube

- 1 inch tube OD

1шт.

5

218-348

TUBE NUT,37 Degree, 1 5/16"-12, Type B

NUT - hex, 1-5/16 inch NF

1шт.

6

328368A1

TUBE,25.4 mm ID, 1220 mm Length

ASSEMBLY - strobe lamp support, 12 inch

1шт.

7

TX440170

SOCKET

- strobe lamp mounting

1шт.

8

TX444361

ACTUATOR

- switch

1шт.

9

TX444324

SWITCH

- on/off/on, DPDT, momentary, throttle control

1шт.

10

TX444382

PANEL, SIDE

BOX - switch mounting

1шт.

11

TX440106

COVER

- valve

1шт.

12

TX407514

DECAL

- control panel

1шт.

13

TX407614

DECAL

- power beyond

1шт.

15

461-33116

HEX SOC SCREW,5/16"-18 x 1"

BOLT - hex socket, 5/16 NC x 1 inch, grade 8

4шт.

16

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

17

496-81002

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

- flat, 3/8 x 7/8 x 3/32 inch, hardened

4шт.

18

TX400121A

VALVE

- transport control, 6 spool

1шт.

19

328367A1

STUD - mounting, 3/8 NC x 1-1/2 inch

4шт.

20

NSS

NOT SOLD SEPARAT

SPACER - mounting

4шт.

21

NSS

NOT SOLD SEPARAT

NUT - speed, 5/16 inch NC

4шт.

22

15012416

THRUST BEARING

- thrust sprocket shaft

1шт.

23

TX408002

SPROCKET ASSY.

SPROCKET - thrust

1шт.

Ref. 23 is for 80 size chain. P/N TX 404621 is for 60 chain.

1шт.

24

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

4шт.

25

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

26

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

4шт.

27

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 5/8 inch

4шт.

28

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

4шт.

30

TX440331

CHAIN (AG)

PLATE - pressure, thrust chain

1шт.

31

TX440333

PAD

- pressure, thrust chain

1шт.

32

TX440332

BOLT,Flat

SCREW - flat head, 1/4 NF x 3/4 inch

10шт.

33

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 5/8 inch

4шт.

34

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

4шт.

35

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

4шт.

36

TX406486

O-RING

- planetary

1шт.

37

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, 7/16-20 inch flare x adj O-ring boss, Includes: Ref. 38

1шт.

40

M0150022

KEYWAY

KEY - 1/2 x 1/2 x 2-3/4 inch

1шт.

41

TX406485

PLANETARY REDUCER

MOTOR - thrust drive, 2 speed

1шт.

42

TX440105

BRACKET

- valve mounting

1шт.

43

492-11038

LOCK WASHER,3/8"

4шт.

44

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

45

TX402023

MOTOR, HYDRAULIC

MOTOR - hydraulic, thrust drive, 2 speed

1шт.

46

6801LL8-10

ELBOW

- 90 degree, long, 3/4-16 flare x 7/8-14 inch adj O-ring boss, Includes: Ref. 47

1шт.

47

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

48

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adj O-ring boss, Includes: Ref. 49

1шт.

49

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 to 1/2 inch reducing

1шт.

50

00015018

BOLT - 12 point, 1/2 NC x 1-3/4 inch

2шт.

51

00015007

LOCK WASHER

- lock tab, 12point, 1/2 inch

2шт.

52

00019050

CLIP

- bolt

2шт.

55

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

56

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

57

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

2шт.

58

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

59

425-146

JAM NUT,3/8" - 16, Gr 5

1шт.

38

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.
