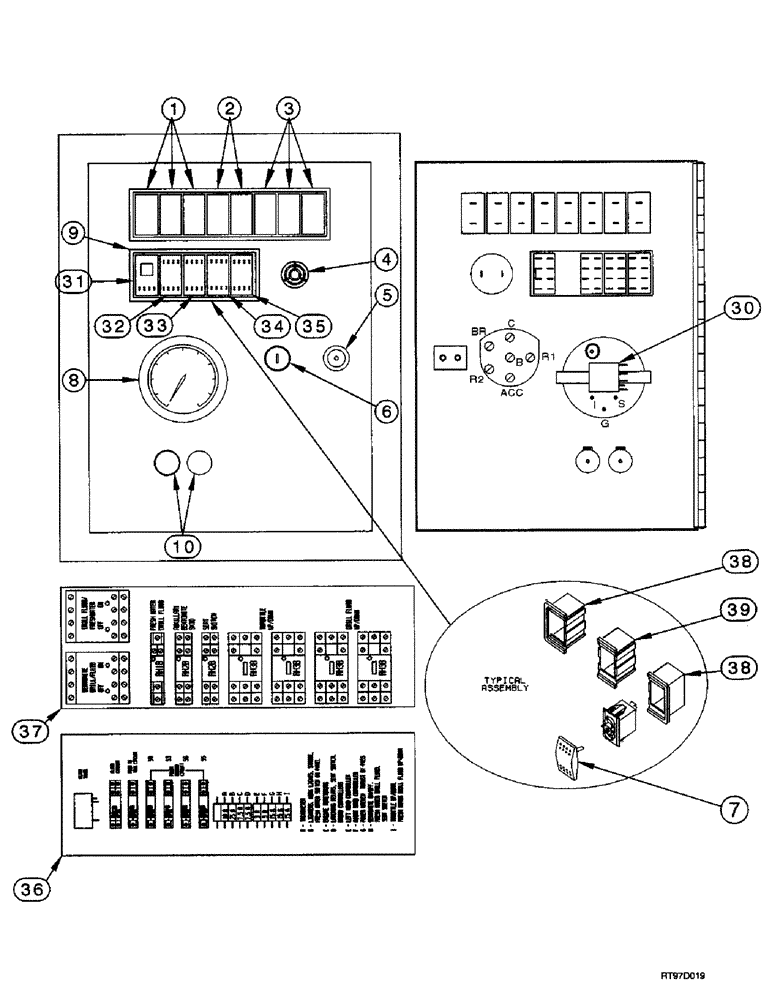

Запчасти Case 400TX (9-40) - ELECTRICAL COMPONENTS - COVER

1

TX402114

LIGHT

- indicator, red

3шт.

2

TX402214

LIGHT

- indicator, amber

2шт.

3

TX452251

LIGHT

- indicator, blue

3шт.

4

TX406428

ALARM

- warning, audible

1шт.

5

TX400140

DIPSTICK

INDICATOR - glow plug

1шт.

6

TX408231

SWITCH

- key

1шт.

7

TX444361

ACTUATOR

- switch

4шт.

8

TX401038

METER

TACHOMETER - engine

1шт.

9

TX444363

CLUSTER, INSTR.

ACTUATOR - switch, black, amber light

1шт.

10

TX405350

OUTLET

- power

1шт.

30

TX400231

RELAY

- starter

1шт.

31

TX444305

SWITCH

- on/off, SPST, with light

1шт.

32

TX444326

SWITCH

- on/off/on, DPDT

1шт.

33

TX444321

SWITCH

- on/off, DPST

1шт.

34

TX444321

SWITCH

- on/off, DPST

1шт.

35

TX444302

SWITCH

- on/off, SPST

1шт.

36

TX400559

DECAL

- fuse location

1шт.

37

TX400560

DECAL

- relay location

1шт.

38

TX444383

CONTROL PANEL

BOX - switch and light mounting, end

4шт.

39

TX444384

CONTROL PANEL

BOX - switch and light mounting, center

9шт.
