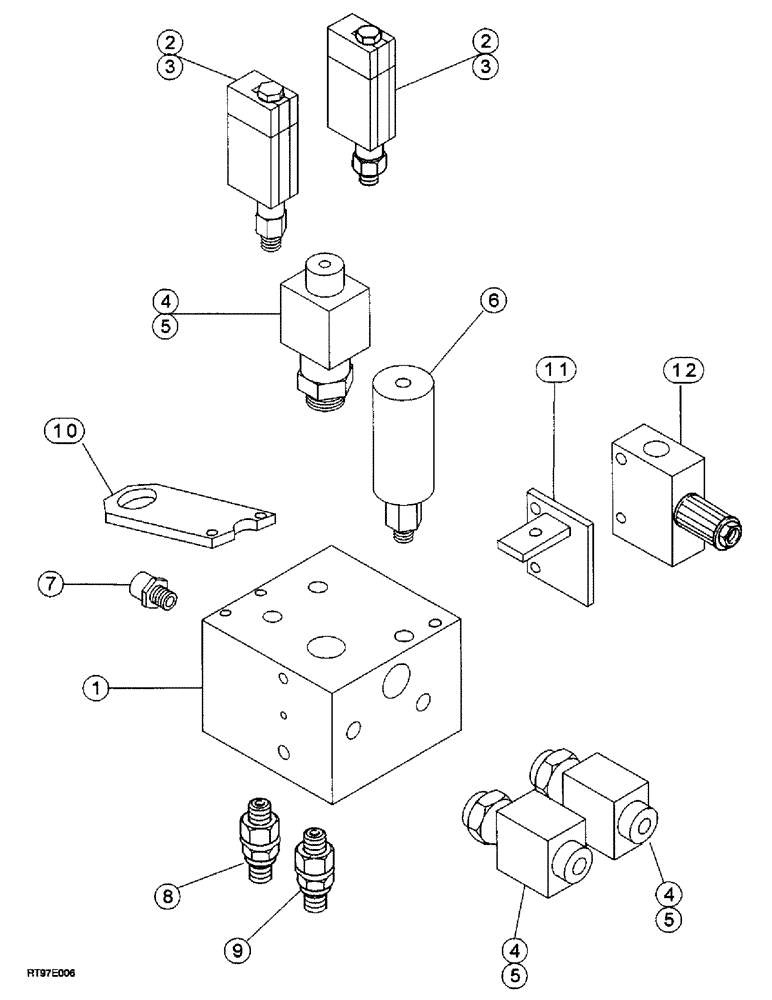

Запчасти Case 400TX (9-32) - MANIFOLD ASSEMBLY

TX404034

MANIFOLD

ASSEMBLY - hydraulic, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

MANIFOLD - hydraulic

1шт.

2

TX404034E

SOLENOID

VALVE - solenoid

2шт.

3

TX404034H

COIL

- solenoid valve

2шт.

4

TX404034C

SOLENOID

VALVE - solenoid

3шт.

5

TX404034D

SOLENOID

COIL - solenoid valve

3шт.

6

TX404034A

CONTROL

VALVE - motorized

1шт.

7

TX404034B

VALVE

- priority flow divider

1шт.

8

TX404034F

VALVE

- relief, 1800 PSI

1шт.

9

TX404034G

VALVE

- relief, 3200 PSI

1шт.

10

TX440175

SUPPORT

BRACKET - bulkhead

1шт.

11

TX440395

BRACKET

- mounting, 2 speed valve

1шт.

12

15083011

VALVE, CONTROL

VALVE - solenoid , 3 way, 12 volt DC

1шт.
