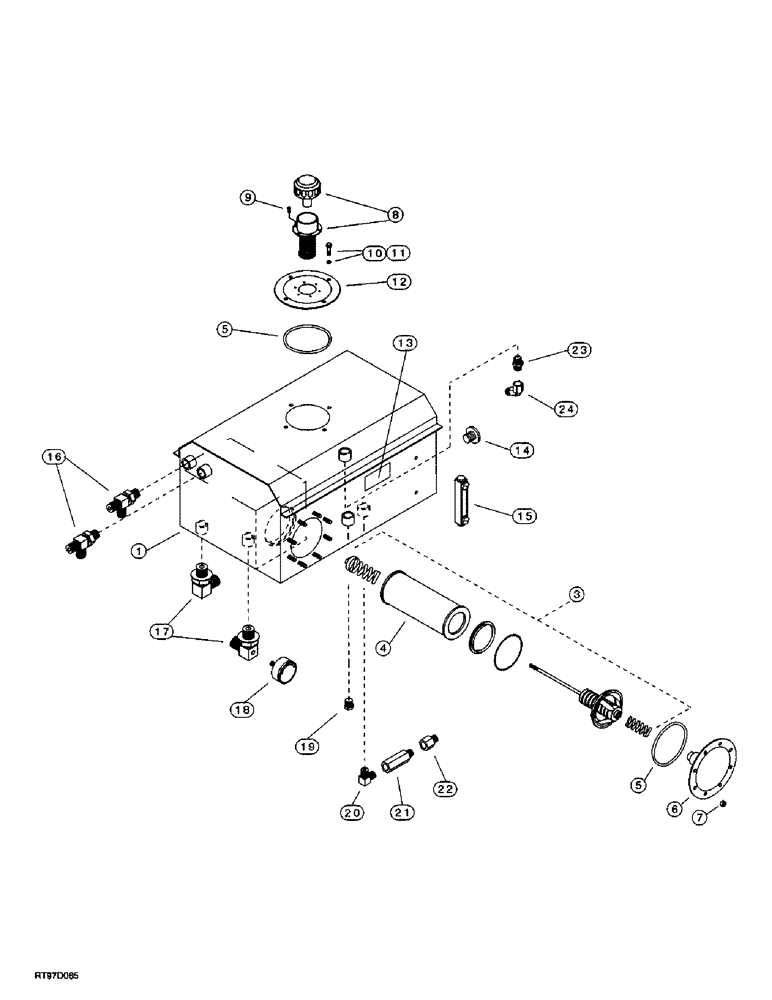

Запчасти Case 400TX (9-28) - HYDRAULIC RESERVOIR AND FILTER

1

294920A1

TANK

RESERVOIR - hydraulic oil

1шт.

3

TX405252

FILTER ASSY

FILTER ASSEMBLY - hydraulic oil, Includes: Ref. 4

1шт.

4

TX405250

ELEMENT

- hydraulic filter

1шт.

5

TX405225

O-RING

GASKET - access plate

2шт.

6

TX400023

CAP

COVER - hydraulic filter

1шт.

7

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

8шт.

8

TX405715

FILLER CAP

CAP - filler

1шт.

9

276-24512

SELF-TAP SCREW,Hex Hd, #10 x 3/4"

SCREW - self tapping

6шт.

10

461-33112

HEX SOC SCREW,5/16" - 18 x 3/4"

BOLT - hex socket, 5/16 NC x 1 inch

4шт.

11

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

12

TX440178

LARGE PLATE

PLATE - access, oil reservoir

1шт.

13

00940806

DECAL

- oil temperature

1шт.

14

TX407518

PLUG

- magnetic

1шт.

15

00370015

GAUGE

- sight, oil with thermometer

1шт.

CASE PART # 00370015 oil sight / thermometer (Thermostat reads 0 - 250 Degrees F)

1шт.

16

218-5189

TEE,1-7/8" - 12 Male JIC x 1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

- 1-7/8-12 inch adj O-ring branch x flare x flare

2шт.

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk

1шт.

17

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adj O-ring boss

2шт.

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

18

TX405066

GAUGE

- vacuum

1шт.

19

217-410

PLUG,Hex Hd, 1/2" - 14 NPT

1шт.

20

217-1226

ELBOW,90 Degree, 1/2"-14 Male

- 90 degree, 1/2-14 inch NPT

1шт.

21

TX405025

VALVE

- relief

1шт.

22

218-1035

HYD CONNECTOR,3/4"-16, 37 Degree x 1/2"-14, Fem Pipe

ADAPTER - straight, 3/4-16 flare x 1/2 inch female PT

1шт.

23

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight, 1-1/16-12 inch flare x O-ring boss

1шт.

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

24

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

- 45 degree, 1-1/16-12 inch flare x swivel

1шт.
