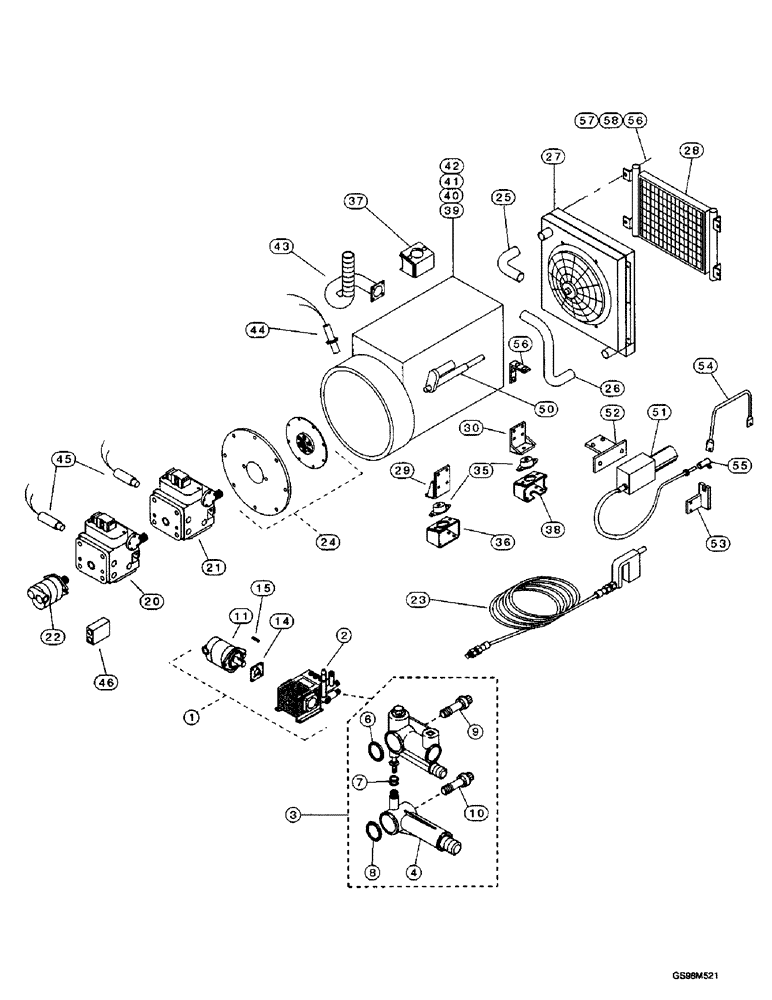

Запчасти Case 400TX (9-26) - ENGINE, WATER PUMP AND HYDRAULIC PUMPS

1

TX400161

ASSEMBLY

PUMP ASSEMBLY - water, Includes: Ref. 2 - 15

1шт.

2

30041512

PUMP, WATER

PUMP - water, Includes: Ref. 3 - 10

1шт.

3

30490011

VALVE

UNLOADER ASSEMBLY - water pump, Includes: Ref. 4 - 8

1шт.

4

1265890

PROTECTION

HOUSING - manifold

1шт.

00490111

KIT

- repair, unloader, Includes: Ref. 6 - 8

1шт.

6

720030

O-RING

- water pump

1шт.

7

770140

O-RING

- housing

2шт.

8

1180140

O-RING

- water pump

1шт.

9

01260580

BOLT

- special, unloader, 3/8 inch

1шт.

10

01260550

BOLT

- special, unloader, 1/2 inch

1шт.

11

36001211

LOAD HOOK

MOTOR - hydraulic, water pump

1шт.

36001211C

SEAL

- motor

1шт.

36001211B

RING

- retaining

1шт.

14

10065322

LARGE PLATE

PLATE - adapter water, Serial Range: pump-frame

1шт.

15

36001311

KEY

- 3/16 x 3/4 inch, undersized

1шт.

20

TX404211

PUMP

- hydrostatic, rear

1шт.

21

TX404210

PUMP, HYDRAULIC

PUMP - hydrostatic, front

1шт.

22

TX400214

PUMP

- gear

1шт.

23

TX429318

SPRAY

WAND - pressure washer

1шт.

24

TX412344

PUSH-PULL COUPLING

COUPLING -, Serial Range: flywheel-pump

1шт.

25

TX400031I

HOSE

- radiator, upper

1шт.

26

TX440303

RADIATOR HOSE

Lower

1шт.

27

328085A1

RADIATOR

- engine coolant

1шт.

28

TX401012

COOLER

- hydraulic oil

1шт.

29

TX440111

BRACKET

- mounting, engine, upper rear

2шт.

30

TX440112

BRACKET

- mounting, engine, upper front

2шт.

35

TX425641

MOUNTING PARTS

ISOLATOR - engine, shock

4шт.

36

TX440180

BRACKET

- mounting, engine, lower rear

2шт.

37

TX440287

BRACKET

- mounting, engine, front lower left

1шт.

38

TX440292

BRACKET

- mounting, engine, front lower right

1шт.

39

TX400040

ENGINE ASSEMBLY

ENGINE - diesel 40 HP

1шт.

40

TX476062

SWITCH

- engine oil pressure

1шт.

41

00010012

FILTER, ENGINE OIL

FILTER - engine oil

1шт.

IN 200TX AND 400TX BOOK PART SHOULD READ TX400031C

1шт.

42

TX400031B

FILTER, FUEL

FILTER - diesel fuel

1шт.

43

TX401652

PIPE

- exhaust

1шт.

44

TX471544

SENSOR

- magnetic

1шт.

45

TX401150

SWITCH

- charge pressure

2шт.

46

TX401071

VALVE

- load holding

1шт.

50

TX401217

CLUSTER, INSTR.

ACTUATOR - throttle, electric (Warner Electric) (No longer available order Ref. No. 51, 52, 53, 54 and 55)

1шт.

51

284848A1

ACTUATOR

CABLE - 3 inch stroke, 50 pound force

1шт.

284862A1

BOARD

- circuit, actuator, with gasket

1шт.

284864A1

GEAR

MOTOR - actuator, 12 VDC

1шт.

284866A1

CABLE

- actuator push/pull

1шт.

284872A1

GASKET

- cover

1шт.

52

284236A1

BRACKET

- actuator mounting

1шт.

53

284235A1

BRACKET

- throttle cable, mounting

1шт.

54

284234A1

LINKAGE

LINK - throttle actuator

1шт.

55

H327494

JOINT TURNING

STOP - wire

1шт.

56

TX440164

BRACKET

- fuel filter mounting

1шт.

57

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

58

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

1шт.

59

231-1445

NUT,5/16"-18, GB

NUT - 5/16-18

1шт.
