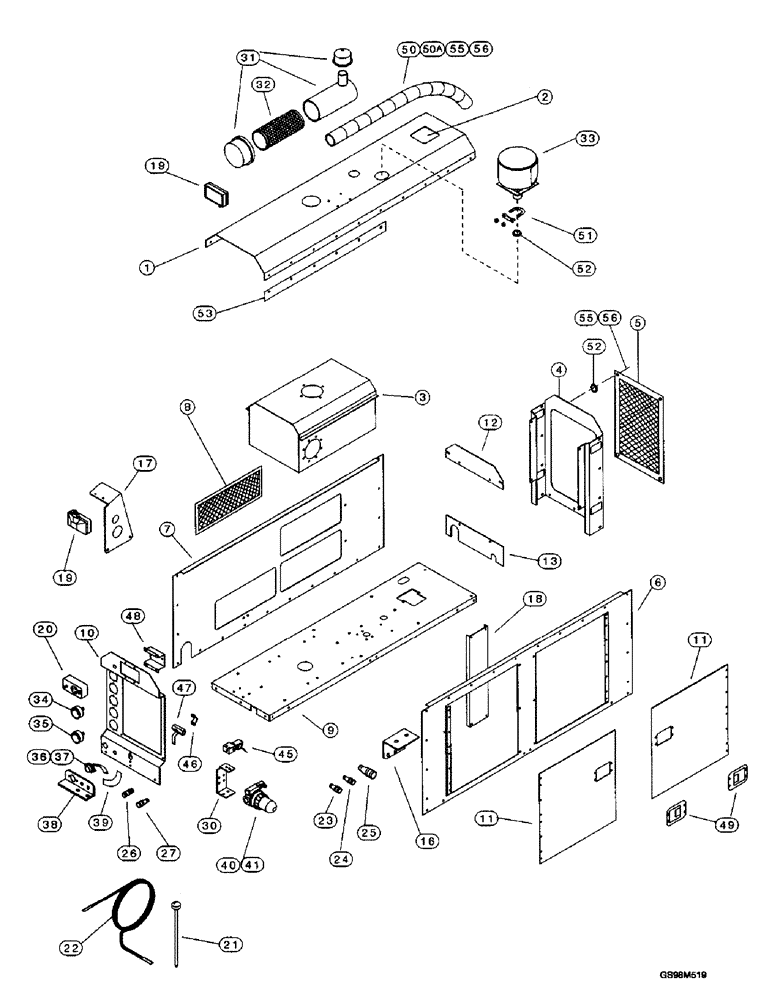

Запчасти Case 400TX (9-24) - ENGINE ENCLOSURE

1

TX440159

FRAME

HINGE - access door

1шт.

2

TX423235

LATCH

- access door

1шт.

3

REF

INSTRUCTION

RESERVOIR - hydraulic oil (See figure 9-28)

1шт.

4

TX440300

MOUNTING PARTS

ENCLOSURE - radiator

1шт.

5

TX440305

CONTROL PANEL

GUARD - radiator

1шт.

6

TX440154

PANEL

- outside, right

1шт.

7

TX440161

PANEL

- inside

1шт.

8

TX440167

FRAME

PANEL - side access

3шт.

9

TX440179

PLATE

- base, enclosure

1шт.

10

TX440139

CONSOLE

PANEL - instrumentation

1шт.

11

TX440577

PANEL

DOOR - enclosure

2шт.

12

TX400924

SHROUD

- upper

1шт.

13

TX400923

SHROUD

- lower

1шт.

16

TX440172

SUPPORT

BULKHEAD - coupler mounting

1шт.

17

TX440601

PLATE

BRACKET - mounting, power tube, upper

1шт.

18

TX440608

FRAME

POST - channel

1шт.

19

TX906453

LAMP, WORK

LAMP - work

2шт.

20

00071215

ALARM

- electrical strike, Includes: Ref. 21 and 22

1шт.

21

NSS

NOT SOLD SEPARAT

STAKE - electrical strike

1шт.

22

301974A1

CABLE

- electrical strike

1шт.

23

10020211

COUPLING

COUPLER ASSEMBLY - self sealing, male and female half

1шт.

24

15041312

FITTING

COUPLER ASSEMBLY - self sealing, male and female half

1шт.

25

15041312

FITTING

COUPLER ASSEMBLY - self sealing, male and female half

1шт.

26

00400511

COUPLING

FITTING - quick disconnect female

1шт.

26

00400512

NIPPLE, LUBE

COUPLER - self sealing, male half (Stainless steel)

1шт.

27

10010311

COUPLING

FITTING - quick disconnect female

1шт.

Bulkhead fitting for part #27 has 6MP (3/8-18) to 6MJ (JIC #6 37 Degree flare) or 9/16-18, Case part number is 2706-LN-06

1шт.

27

10010312

NIPPLE, LUBE

FITTING - quick disconnect male

1шт.

30

TX440131

BRACKET

- charge filter

1шт.

31

NSS

NOT SOLD SEPARAT

FILTER ASSEMBLY - air, Includes: Ref. 32

1шт.

32

TX400031A

FILTER

ELEMENT - air filter

1шт.

33

TX440306

MUFFLER

- exhaust, custom, low decibel, Includes: Ref. 33A, 33B and 33C

1шт.

33a

TX422235

MUFFLER, diesel

1шт.

33b

TX440920

BRACKET, muffler

1шт.

33c

TX422236

TUBE, exhaust

1шт.

34

TX472183

GAUGE

- pressure, 3000 PSI

1шт.

For the bentonite system and does ae the seal on the back. The seal is NSS per the vendor

1шт.

Per bincheck this does have some type of cylindrical valve or something attached to back. Per vendor this Ref. is nss.

1шт.

35

TX472185

GAUGE

- pressure, 5000 PSI

4шт.

For the hydraulic system and does not have the seal or diaphragm on the back. The seal is NSS per the vendor.

1шт.

TX400043

SOCKET

ASSEMBLY - electrical, Includes: Ref. 36 and 37

1шт.

36

02360213

CONTROL

SOCKET - electrical

1шт.

37

TX401806

HARNESS

- socket

1шт.

38

TX440186

SUPPORT

BRACKET - socket and coupler mounting

1шт.

39

30051014

DECAL

- drill fluid

1шт.

40

TX405012

FILTER

ASSEMBLY - hydraulic oil, Includes: Ref. 41

1шт.

41

TX405010

ELEMENT

- hydraulic filter

1шт.

45

TX400227

SOLENOID

VALVE - solenoid, thrust bypass

1шт.

46

15011032

BRACKET

- mounting, ball valve

1шт.

47

01400111

BALANCE VALVE

VALVE - ball, shut-off

1шт.

48

TX440130

BRACKET

- mounting, alarm

1шт.

49

TX401115

LATCH

- door, lockable paddle with key

2шт.

50

TX482101

INTAKE AIR HOSE,44.50 mm ID, 50.80 mm ID x 970.00 mm, SAE J200

HOSE - air filter intake

1шт.

50a

D43713

BAND

- mounting A, air cleaner

2шт.

51

33200

CLAMP

- muffler mounting, 2inch

1шт.

52

99153414

ANCHOR

ISOLATOR - rubber

5шт.

53

TX440174

BAR

- stiffener

2шт.

54

40645S

HINGE

2шт.

55

461-73112

HEX SOC SCREW,Btn Hd, 5/16"-18 x 3/4"

SCREW - hex socket, 5/16 NC

12шт.

56

231-1445

NUT,5/16"-18, GB

NUT - 5/16 inch

12шт.

57

440-1066

SCREW,Cross Pan Hd, #6-32 x 3/8"

- PHD 6-32 x .375 inch

15шт.

58

348408A

BOLT - button head, 3/8 NC

2шт.

59

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

2шт.
