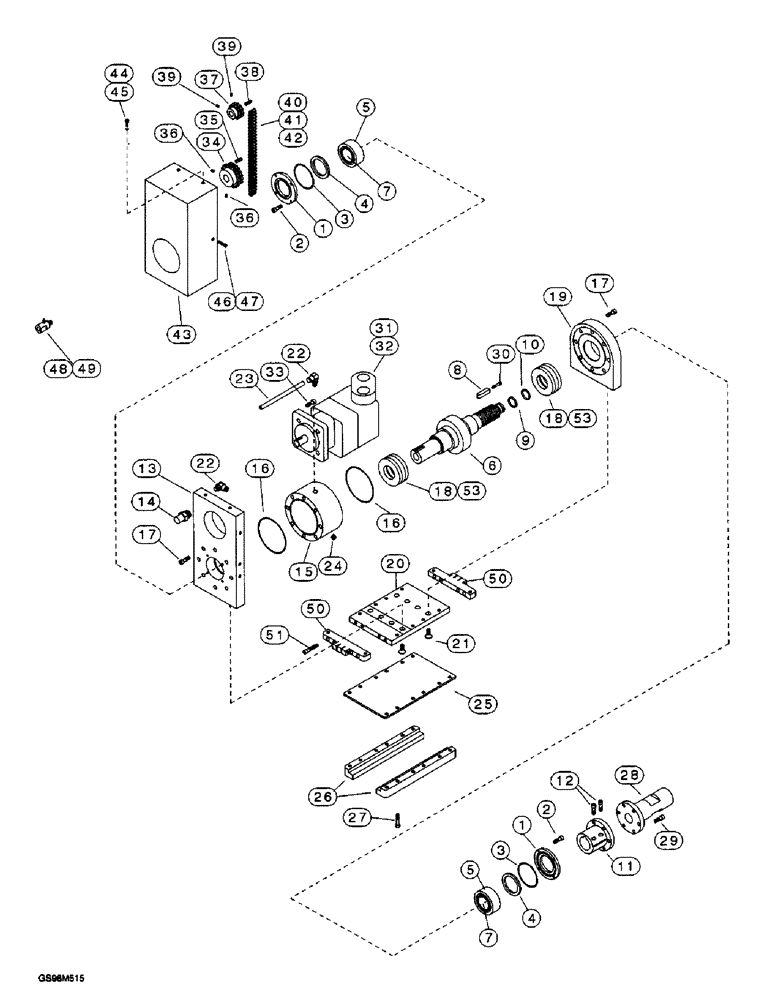

Запчасти Case 400TX (9-22) - DRILL DRIVE

TX410044

DRIVE ASSY.

HEAD ASSEMBLY - drill drive, Includes: Ref. 1 - 24

1шт.

1

00010222

CAP

- end

2шт.

2

61-32512

HEX SOC SCREW,1/4 - 20 x 3/4"

SCREW, , grade 8 Hex Soc Hd, 1/4"-20 x 3/4"

8шт.

3

00030017

O-RING,3.359" ID x 3.637" OD x 0.139"

- end cap

2шт.

4

00040017

OIL SEAL

- end cap

2шт.

5

00050016

BEARING, NEEDLE

BEARING - needle

2шт.

TX410442

SHAFT ASSY.

SHAFT ASSEMBLY - drill drive, Includes: Ref. 6 - 12

1шт.

6

50010423

SHAFT

- drill drive

1шт.

7

00050116

RACE

- needle bearing

2шт.

8

00140122

KEY

- drill drive shaft

1шт.

9

00021617

BACK-UP RING

RING - back-up

1шт.

10

00021618

O-RING,1.109" ID x 1.387" OD x 0.139"

- drive shaft

1шт.

11

00010124

ADAPTER

- spindle

1шт.

12

NSS

NOT SOLD SEPARAT

BOLT - hex socket, 5/16 NC x 1 inch, grade 8

2шт.

13

50010722

PLATE

- end, drill head

1шт.

14

00100011

BREATHER

- housing

1шт.

15

00010522

HOUSING

- drill drive

1шт.

16

238-5251

O-RING,0.139" Thk x 5.109" ID, -251, Cl 5, 75 Duro

Housing (Replaces 00025110) -251, 70 Duro, 5.109" ID x .139" Thk

2шт.

17

61-35028

HEX SOC SCREW,1/2"-13 x 1 3/4"

BOLT - hex socket, 1/2 NC x 1-3/4 inch, grade 8

16шт.

18

00060016

THRUST BEARING

BEARING - thrust

2шт.

19

00010322

PLATE

- end, drill head

1шт.

20

TX410932

BASE

PLATE - base, drill head

1шт.

21

NSS

NOT SOLD SEPARAT

SCREW - flat head, 5/8 NC x 1-3/4 inch

8шт.

22

00080011

FITTING

- hose

2шт.

23

00090011

HOSE

- breather, 6 inch

1шт.

24

217-407

PLUG,Hex Hd, 3/8" - 18 NPT

1шт.

25

30011422

PLATE

- wear, drill head slide

1шт.

26

30011122

SLIDE

- drill head

2шт.

27

61-33828

HEX SOC SCREW,3/8"-16 x 1 3/4"

BOLT - hex socket, 3/8 NC x 1-3/4 inch, grade 8

12шт.

28

40010123

MANDREL

ADAPTER - drill rod

1шт.

29

NSS

NOT SOLD SEPARAT

BOLT - hex, 1/2-13 x 1-1/2 inch hex socket

6шт.

30

NSS

NOT SOLD SEPARAT

BOLT - hex

1шт.

31

05020011

MOTOR, HYDRAULIC

MOTOR - hydraulic, drill drive

1шт.

32

50020111

SEAL KIT

- seal, drill drive motor

1шт.

33

NSS

NOT SOLD SEPARAT

BOLT - hex socket, 1/2 NC x 1-3/4 inch, grade 8

4шт.

34

50120012

SPROCKET ASSY.

SPROCKET - driven

1шт.

35

50150022

KEY

- driven sprocket

1шт.

36

483-15012

SET SCREW,Hex Soc, 1/2"-13 x 3/4"

SCREW - set, 1/2 NC x 3/4 inch

2шт.

37

50130012

SPROCKET ASSY.

SPROCKET - drive

1шт.

38

50140022

KEY

- drive sprocket, 5/16 x 5/16 x 1-3/4 inch

1шт.

39

83-2318

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW - set, 5/16 NC x 1/2 inch

2шт.

40

50110012

CHAIN (AG)

CHAIN - double roller

1шт.

41

50110112

LINK

- chain connecting

1шт.

42

50110212

OFFSET LINK

LINK - half, chain

1шт.

43

50010832

COVER

GUARD - drill drive

1шт.

44

NSS

NOT SOLD SEPARAT

BOLT - hex, 1/2 NC x 3/4 inch

4шт.

45

231-1448

NUT,1/2"-13, GB

WASHER - lock, 1/2 inch

4шт.

46

348407A1

BOLT

- hex, 1/4 NC x 1/2 inch

2шт.

47

496-21028

WASHER,.281" x 5/8" x .075", HDN

- lock, 1/4 inch

2шт.

48

15050011

PIVOT

SWIVEL - drill drive

1шт.

49

15050011R

KIT

- swivel repair

1шт.

50

30011022

BLOCK

- thrust chain attaching

2шт.

51

61-33828

HEX SOC SCREW,3/8"-16 x 1 3/4"

BOLT - hex socket, 3/8 NC

8шт.

52

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

5108-200

RING - snap

2шт.
