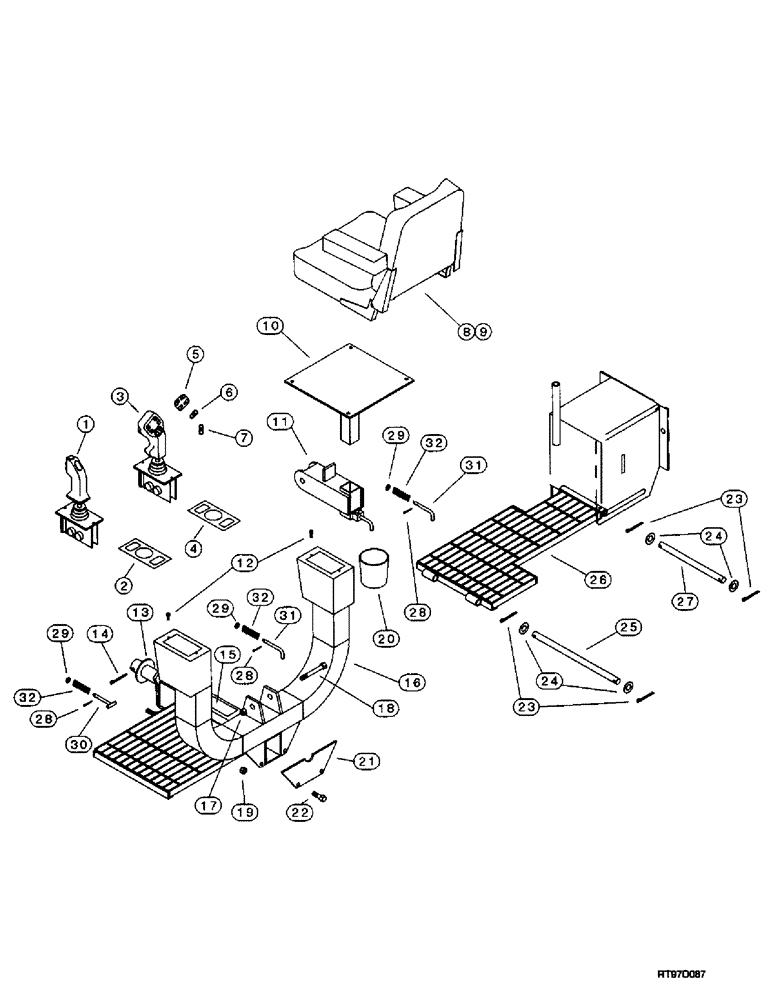

Запчасти Case 400TX (9-20) - OPERATOR CONTROL CENTER
№
Артикул
Название
Примечание
Количество
TX404112
CONTROL
LER ASSEMBLY - hand, thrust (New), Includes: Ref. 1 and 2
1шт.
TX401871
HANDLE
CONTROLLER ASSEMBLY - hand, thrust (Re-manufactured), Includes: Ref. 1 and 2
1шт.
1
TX404111
CONTROL
LER - hand, thrust
1шт.
2
TX407414
DECAL
- thrust
1шт.
TX401863
CONTROL
LER ASSEMBLY - hand, rotation (New), Includes: Ref. 3 - 7
1шт.
TX401872
HANDLE
CONTROLLER ASSEMBLY - hand, rotation (Re-manufactured), Includes: Ref. 3 - 7
1шт.
3
TX401862
CONTROL
LER - hand, rotation
1шт.
4
TX407314
DECAL
- rotation
1шт.
5
TX407014
DECAL
- power wrench
1шт.
6
TX407114
DECAL
- throttle
1шт.
7
TX407214
DECAL
- flow up/down
1шт.
8
300752A1
SEAT
- operators
1шт.
Ref. 8 = .300752A1 = complete seat with switch in gray
1шт.
320974A1 = seat cushion with switch in gray
1шт.
TX402016 = complete seat with switch in brown
1шт.
TX402014 = seat cushion with switch in brown
1шт.
9
TX402016
CUSHION
- seat with switch
1шт.
10
TX440183
PLATE
- seat mounting
1шт.
11
TX440126
TUBE
- seat mount
1шт.
12
461-35032
HEX SOC SCREW,1/2"-13 x 2"
BOLT - hex
4шт.
13
496-21041
WASHER,13/32" x 13/16" x .089", HDN
1шт.
14
432-1232
COTTER PIN,3/16" OD x 2" L
PIN, SPLIT (COTTER) 3/16" x 2"
1шт.
15
TX478714
TREAD
- no skid (Set)
1шт.
16
TX440125
FRAME
- console
1шт.
17
NSS
NOT SOLD SEPARAT
NUT - hex
1шт.
18
NSS
NOT SOLD SEPARAT
BOLT - hex
1шт.
19
NSS
NOT SOLD SEPARAT
NUT - hex
2шт.
20
TX405912
CUP
HOLDER - cup
1шт.
21
294239A1
COVER
- console
1шт.
22
NSS
NOT SOLD SEPARAT
BOLT - hex
2шт.
23
432-1232
COTTER PIN,3/16" OD x 2" L
3/16" x 2"
4шт.
24
496-21081
WASHER,13/16" x 1 1/2" x .179", HDN
4шт.
25
TX440147
PIN
- grate pivot
1шт.
26
TX440124
GRATING
- remote seat
1шт.
27
TX440148
PIN
- remote seat
1шт.
28
432-820
COTTER PIN,1/8" x 1 1/4"
PIN, SPLIT (COTTER), 1/8" x 1-1/4"
2шт.
29
496-21081
WASHER,13/16" x 1 1/2" x .179", HDN
2шт.
30
TX440173
PIN
- seat console
1шт.
31
TX440145
PIN
- seat
2шт.
32
TX400173
SPRING
- return
3шт.
Выбрано товаров: 40
