Запчасти Case 300CM (9-22) - POWER WRENCH

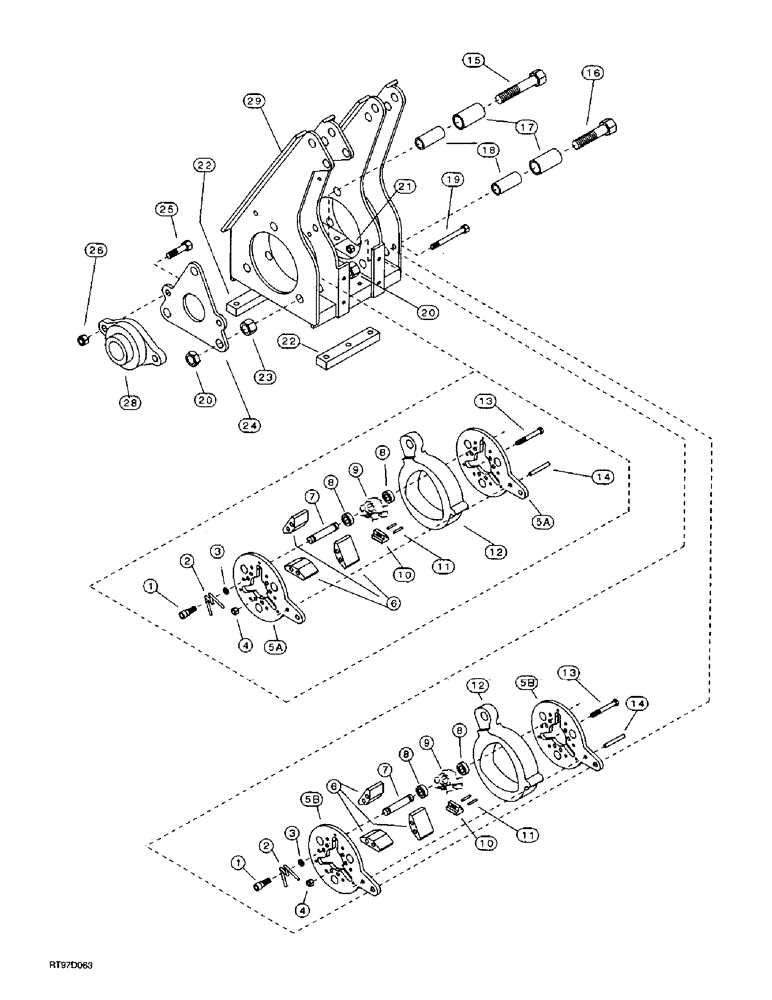

Схема запчастей Case 300CM - (9-22) - POWER WRENCH
5a
1
19
22
12
5a
5a
7
2
10
8
17
16
13
5b
24
9
11
20
6
13
8
8
3
28
23
3
26
6
29
7
21
20
12
10
2
1
14
11
14
4
18
8
25
22
15
4
9

Артикул

Название

Примечание

Количество

1

73091259

BOLT

- hex socket, shoulder, 1/2 NC x 1/2 inch

12шт.

2

73009287

SPRING

- torsion

12шт.

3

NSS

NOT SOLD SEPARAT

WASHER - lock, 3/8 inch

12шт.

4

NSS

NOT SOLD SEPARAT

NUT - hex, lock, 7/16 inch

12шт.

5a

73040307

RIGID TUBE,0.75" OD, 9.875" Length

PLATE - jaw, front wrench

2шт.

5b

73040116

LARGE PLATE

PLATE - jaw, rear wrench

2шт.

6

73025025

BLOCK

- thrust

6шт.

7

73026025

PIN

- attaching, cam follower

6шт.

8

73016227

CAM

ROLLER - cam

12шт.

9

73041676

CARRIER

HOLDER - jaw

6шт.

10

73040252

JAW

- power wrench

6шт.

11

73031676

PIN

- retaining, jaw

12шт.

12

73040117

CAMSHAFT

CAM - power wrench

2шт.

13

73040181

BOLT

- hex, 7/16 NC x 3-3/4 inch

12шт.

14

TX440189

PIN

- stop

2шт.

15

NSS

NOT SOLD SEPARAT

BOLT - hex, 1 NC x 4-1/2 inch, rear wrench

3шт.

NSS - is 292712A1 bolt.

1шт.

16

NSS

NOT SOLD SEPARAT

BOLT - hex, 1 NC x 5-1/2 inch, front wrench

3шт.

NSS - is 292711A1 bolt.

1шт.

17

73016225

BEARING, THRUST,35.3 mm ID, 44.4 mm OD, 76 mm Length

TUBE - bearing

6шт.

18

73016222

BRONZE BUSHING

BEARING - bronze

6шт.

292713A1.

1шт.

19

NSS

NOT SOLD SEPARAT

BOLT - hex, 1/2 NC x 4-1/2 inch

2шт.

20

NSS

NOT SOLD SEPARAT

NUT - hex, jam, 1 inch

6шт.

21

NSS

NOT SOLD SEPARAT

NUT - hex, lock, 1/2 inch

2шт.

22

TX440686

BAR

- shim, power wrench

2шт.

SUBS TO A 313423A1 AND IS HELD ON BY BOLT WITH P/N 413-828 PER TECH.

1шт.

23

NSS

NOT SOLD SEPARAT

NUT - hex, 1 inch

3шт.

24

51200196

LARGE PLATE

PLATE - bearing, rod guide

1шт.

25

NSS

NOT SOLD SEPARAT

BOLT - hex, 5/8 NC x 2 inch

2шт.

26

NSS

NOT SOLD SEPARAT

NUT - hex, lock, 5/8 inch

2шт.

28

30647822

GUIDE

BEARING - rod guide, 2-1/8 inch

1шт.

CONFIRMED WITH SUPPLIER THAT ID ON THIS PART IS 2.25". NOT 2.125"

1шт.

29

73040594

SUPPORT

FRAME - power wrench

1шт.

Выбрано товаров: 34
