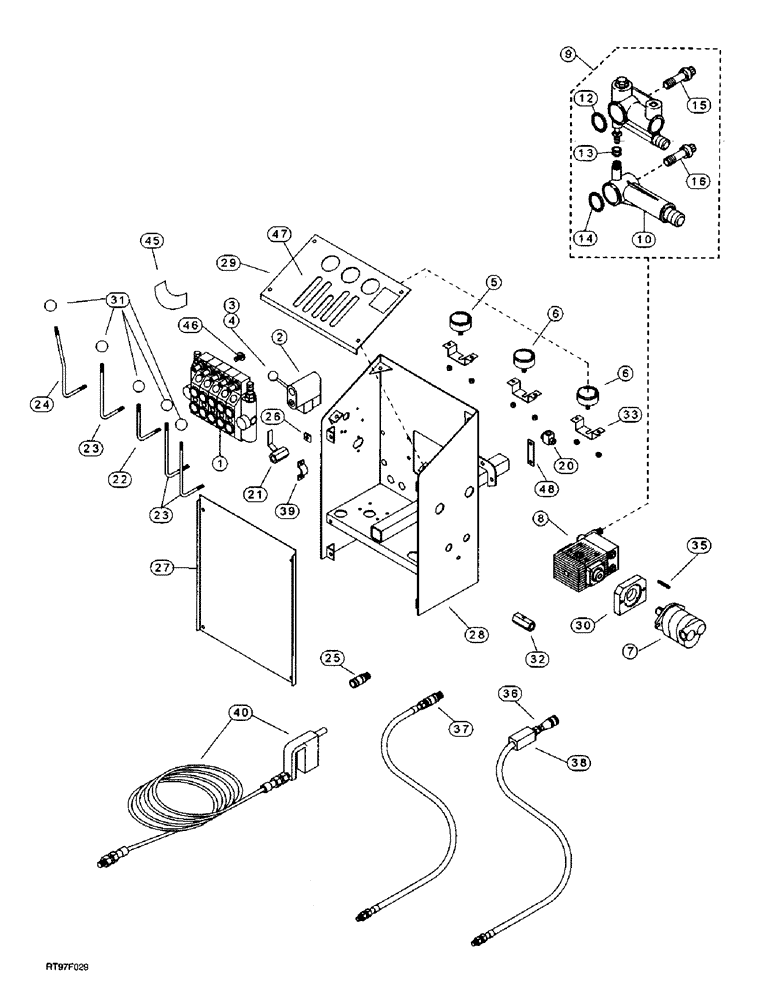

Запчасти Case 300CM (9-16) - CONTROL CONSOLE - 300CM

1

30012013

VALVE

- control

1шт.

10068311D

VALVE

INLET - control valve

1шт.

10068311A

VALVE

SECTION - control valve, thrust and rotate

2шт.

15068311C

VALVE

SECTION - control valve, drill fluid and power wrench

3шт.

TX440152

DETENT

- stop

1шт.

15068311A

VALVE

OUTLET - control valve

1шт.

NSS

NOT SOLD SEPARAT

KIT - tie bolt

1шт.

2

02300011

CONTROL

VALVE - flow control

1шт.

3

30604618

KNOB

- control lever

1шт.

4

30091218

LEVER

- flow control

1шт.

5

00031411

GAUGE

- pressure, 3000 PSI

1шт.

6

00031511

GAUGE

- pressure, 5000 PSI

2шт.

7

36003611

MOTOR, HYDRAULIC

MOTOR - hydraulic, water pump

1шт.

8

30041512

PUMP, WATER

PUMP - water

1шт.

9

30490011

VALVE

UNLOADER ASSEMBLY - water pump, Includes: Ref. 10 - 16

1шт.

10

NLS

NO LONGER SERVICED

HOUSING - manifold

1шт.

00490111

KIT

- repair, unloader, Includes: Ref. 12 - 14

1шт.

12

720030

O-RING

- water pump

1шт.

13

770140

O-RING

- housing

2шт.

14

1180140

O-RING

- water pump

1шт.

15

01260580

BOLT

- special, unloader, 3/8 inch

1шт.

16

01260550

BOLT

- special, unloader, 1/2 inch

1шт.

20

10012211

VALVE

- shuttle

1шт.

21

01400111

BALANCE VALVE

VALVE - ball, 1/2 inch PT

1шт.

22

30050318

LEVER

- drill fluid control

1шт.

23

30050418

LEVER

- rotation control and power wrench

3шт.

24

30050518

LEVER

- thrust control

1шт.

25

M0122011

VALVE, CHECK

VALVE - check

1шт.

26

00948518

NUT

- speed, 1/8 inch NC

8шт.

27

30020149

CONSOLE

PANEL - console, front

1шт.

28

30020150

CONSOLE

- control

1шт.

29

295992A1

PANEL

- console, top

1шт.

30

10065322

LARGE PLATE

PLATE - adapter

1шт.

31

30604518

KNOB

- control lever

5шт.

32

00375011

VALVE, CHECK

VALVE - check

1шт.

33

13271112

BRACKET

- gauge mounting

3шт.

35

36001311

KEY

- square

1шт.

36

143431A1

COUPLING, QUICK, FEM

COUPLING - quick disconnect, female, return

1шт.

37

122180A1

COUPLING, BREAK AWAY

COUPLING - quick disconnect, male, pressure

1шт.

38

10075012

VALVE, CHECK

VALVE - check

1шт.

39

15011032

BRACKET

- mounting, ball valve

1шт.

40

10029318

WASHER

WAND ASSEMBLY - pressure washer

1шт.

00259311

WASHER

WAND - pressure washer

1шт.

01321311

NOZZLE INJECTION

NOZZLE - wand, 1/8 inch

1шт.

45

30051014

DECAL

- drill fluid

1шт.

46

NSS

NOT SOLD SEPARAT

BOLT - hex

3шт.

47

30050514

DECAL

- control console, 300CM

1шт.

48

30026121

CLAMP

- mounting

1шт.

OUTPUT SHAFT SEAL AND RETAINING RING FOR REF 7 MOTOR ARE 36001211B RING, 36001211C SEAL PER ANSWER TO CAM CASE# 543591.

1шт.
