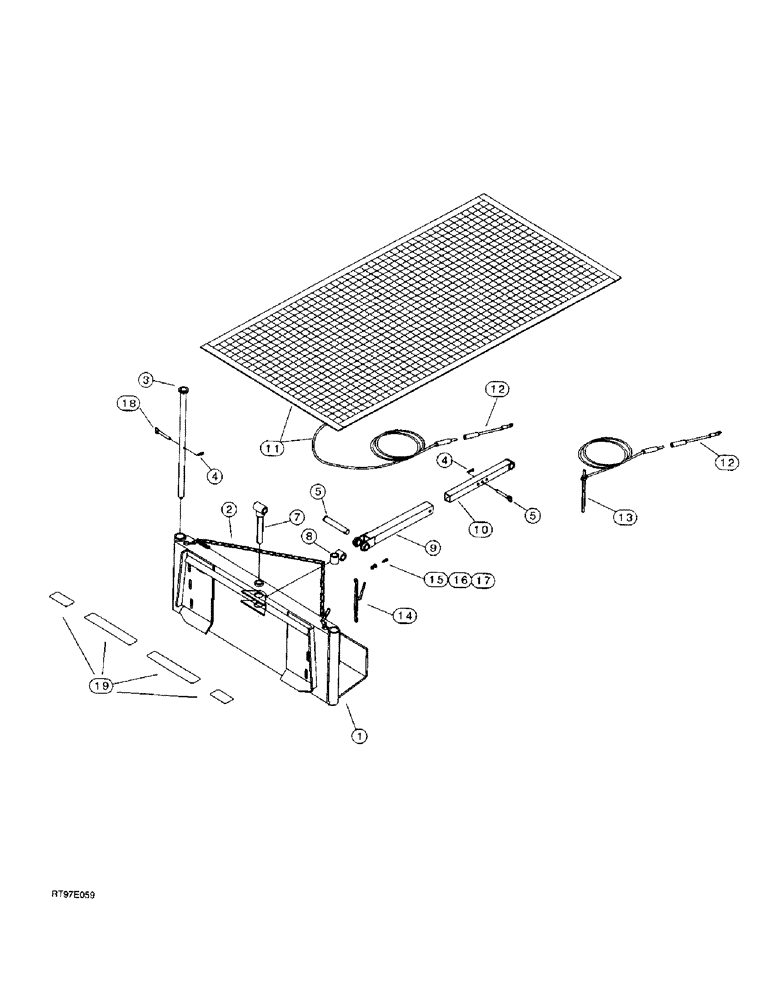

Запчасти Case 300CM (9-06) - ROD CARRIER AND GROUNDING MAT

1

10560022

CARRIER

- drill rod (Used on 150CM only)

1шт.

1

30060022

CARRIER

- drill rod (Used on 300CM only)

1шт.

2

50266712

CHAIN (AG)

CHAIN - tether, 84 inch

1шт.

3

30199032

PIN

- hold down

2шт.

4

NSS

NOT SOLD SEPARAT

PIN - hair, 1/8 inch

2шт.

5

30023318

PIN

- attaching

2шт.

6

10066322

PIN

- attaching

1шт.

7

30011222

PIN

- pivot

1шт.

8

30060322

STEERING KNUCKLE

KNUCKLE - pivot

1шт.

9

30060122

TUBE,52.4 mm ID

- adjusting, female

1шт.

10

30060222

TUBE

- adjusting, male

1шт.

11

10060643

MAT

- grounding

1шт.

12

10060743

CABLE

PIGTAILS - grounding mat

2шт.

13

D52296

SEAL

ROD - grounding

1шт.

14

02803215

BINDER

- load

1шт.

15

NSS

NOT SOLD SEPARAT

BOLT - hex, 1/2 NC x 3/4 inch

1шт.

16

NSS

NOT SOLD SEPARAT

WASHER - lock, 1/2 inch

1шт.

17

NSS

NOT SOLD SEPARAT

WASHER - flat, 3/4 inch

1шт.

18

10060522

PIN

- handle

1шт.

19

33778714

TREAD

- no skid, 12 inch

1шт.
