(9-24) - POWER HAND AUGER - 300CM

Запчасти Case 300CM (9-24) - POWER HAND AUGER - 300CM

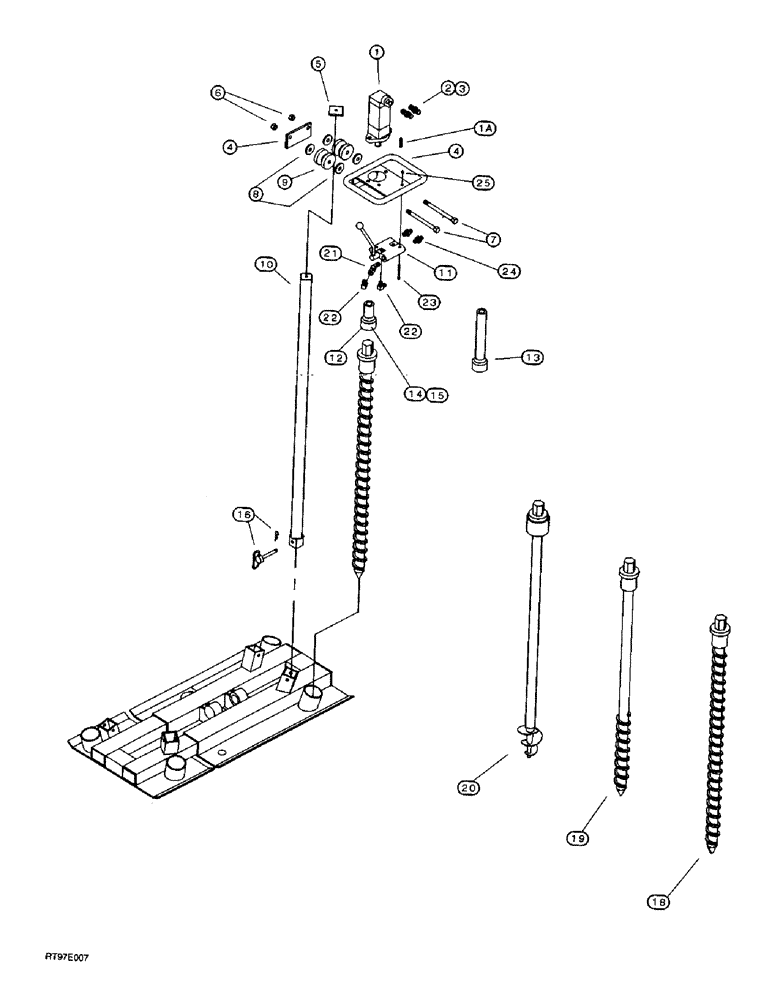

Схема запчастей Case 300CM - (9-24) - POWER HAND AUGER - 300CM
24
18
16
15
2
3
6
21
11
4
5
14
22
13
22
19
8
9
1a
25
10
12
23
20
1
7
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

10412211

MOTOR, HYDRAULIC

MOTOR - hydraulic, power hand auger

1шт.

1a

10502522

KEY

- square, 5/16 x 5/16 x 1-1/4 inch

1шт.

2

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring, Includes Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

85010043

FUNNEL

FRAME - roller

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - end, guide bar

1шт.

6

NSS

NOT SOLD SEPARAT

NUT - hex, lock

2шт.

7

85040157

BOLT

- hex, with grease tap

2шт.

8

85010418

WASHER

- special

4шт.

9

85010618

ROLLER

- guide bar

2шт.

10

85004752

POST

BAR - guide

1шт.

11

85030911

VALVE, CONTROL

VALVE - control, power hand auger

1шт.

12

85036811

SOCKET/RECEPTACLE

SOCKET - auger, short

1шт.

13

85017552

EXTENSION

SOCKET - auger, long

1шт.

14

NSS

NOT SOLD SEPARAT

BOLT - hex

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - lock

1шт.

16

10060522

PIN

- hitch

1шт.

18

85036052

PIN

- auger with flighting

8шт.

19

85037052

PIN

- auger with 13 inch flighting

8шт.

20

85038052

PIN

- auger with cast flighting, sand point (Used with stabilizer pads with 4-1/2 inch auger hole)

8шт.

21

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

- 45 degree, 9/16-18 inch flare x swivel

1шт.

22

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss

2шт.

23

NSS

NOT SOLD SEPARAT

BOLT - hex, 1/4 NC x 2-1/4 inch

2шт.

24

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

2шт.

25

NSS

NOT SOLD SEPARAT

NUT - hex, lock

2шт.

NSS

NOT SOLD SEPARAT

HOSE ASSEMBLY - power auger (Includes hoses, quick couplers and hose sock) (Not shown)

1шт.

122180A1

COUPLING, BREAK AWAY

COUPLING - quick disconnect, male (Not shown)

1шт.

143431A1

COUPLING, QUICK, FEM

COUPLING - quick disconnect, female (Not shown)

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
