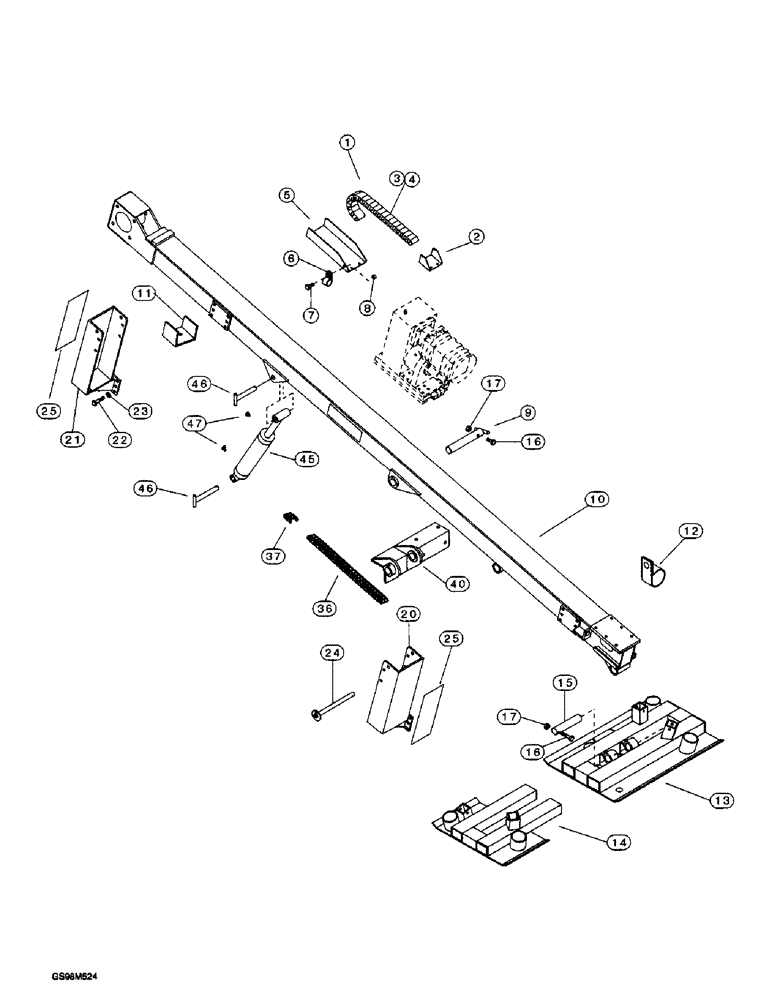

Запчасти Case 200TX (9-14) - BOOM
№
Артикул
Название
Примечание
Количество
TX401290
TUBE
ASSEMBLY - power, Includes: Ref. 1 - 4
1шт.
1
01290011
TUBE
- power, 12 inch section
1шт.
2
01290111
TUBE
BRACKET - power tube (Set of 2)
1шт.
3
TX401291
WASHER
- nylatron, 1/8 x 3/4 x 7/32 inch
1шт.
4
93121330
SCREW,#8 - 32 x 3", Aluminum
- special
1шт.
5
TX440120
BRACKET
- power tube, lower
1шт.
6
00266818
CLIP
CLAMP - hose, 7/8 inch
1шт.
7
413-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
1шт.
8
NSS
NOT SOLD SEPARAT
NUT - hex lock, 3/8 inch NC
1шт.
9
TX440115
PIN
- boom pivot
1шт.
10
TX440107
BOOM
- thrust
1шт.
11
TX440163
CLAMP
- hose
7шт.
12
00331118
CLAMP
- hanger, 2 inch
1шт.
13
TX440137
PAD, RUBBER
PAD - front stabilizer, left-hand fixed, 3 inch auger hole
1шт.
13
85040348
PAD
- front stabilizer, left-hand fixed, 4-1/2 inch auger hole
1шт.
14
TX440142
PAD, RUBBER
PAD - front stabilizer, right-hand removable, 3 inch auger hole
1шт.
14
85040351
PAD, RUBBER
PAD - front stabilizer, right-hand removable, 4-1/2 inch auger hole
1шт.
15
30120122
PIN
- hold down
1шт.
16
413-652
BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5
2шт.
17
231-1446
NUT,3/8" - 16, Gr 5
NUT, LOCK, 3/8"-16, GB
2шт.
20
TX440353
RACK
- rod, front
1шт.
21
TX440352
RACK
- rod, rear
1шт.
22
413-1020
BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5
12шт.
23
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
12шт.
24
TX440165
PIN
- drill rod retaining
2шт.
25
TX202514
DECAL
- model, 200TX
2шт.
36
TX406030
CHAIN (AG)
CHAIN - roller
1шт.
REF. 36 is 439 pitch or 439 links.
1шт.
37
05603112
LINK
- connector, chain
2шт.
40
TX440101
BRACKET
- boom pivot
1шт.
45
00450010
CYLINDER ASSY.
CYLINDER - boom pivot
1шт.
46
TX452112
PIN
- attaching
2шт.
47
218-5103
90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB
- 90 degree, 7/16-20 inch flare x adj O-ring boss, Includes: Ref. 48
2шт.
48
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
4-1, 90 Duro, .351" ID x .072" Thk
1шт.
Выбрано товаров: 34
