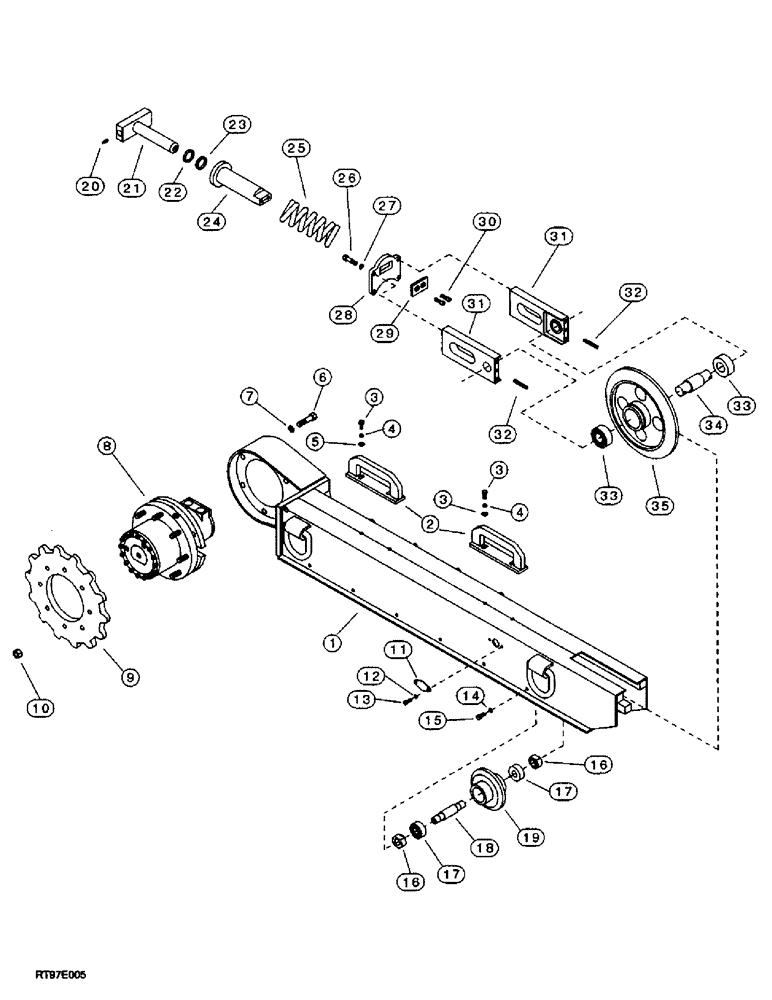

Запчасти Case 200TX (9-08) - TRACK SYSTEM

1

TX440214

FRAME

TRACK - right-hand tunnel

1шт.

1

TX440213

TRACK CHAIN

TRACK - left-hand tunnel

1шт.

2

TX440210

GUIDE

- track

8шт.

3

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

4

492-11038

LOCK WASHER,3/8"

8шт.

5

496-81002

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

- flat, 3/8 x 7/8 x 3/32 inch, hardened

8шт.

6

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

12шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

12шт.

8

TX202604

MOTOR, HYDRAULIC

PLANETARY - track drive

2шт.

9

TX440221

SPROCKET ASSY.

SPROCKET - track drive

2шт.

10

G49041

WHEEL NUT

- wheel, special, 9/16 inch NF

16шт.

11

TX440215

COVER

- tension cylinder adjustment

2шт.

12

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, WASHER, LOCK, 1/4"

4шт.

13

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

24шт.

15

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

24шт.

16

TX440201

SPACER

BUSHING - idler wheel

24шт.

17

TX401023

ROLLER BEARING

BEARING - roller

24шт.

18

TX440202

SHAFT

- idler wheel

12шт.

19

TX440200

FRONT IDLER

WHEEL - idler

12шт.

20

219-66

LUBE NIPPLE,1/8"-27 NPT, Dustproof

FITTING - grease, straight, with cap, 1/8 PT x 1 inch

2шт.

21

TX440204

SHAFT

- tensioner (Also order TX440209)

2шт.

22

TX401021

SEAL

WIPER - rod

2шт.

23

TX401022

SEAL

SEAL - poly, 1-1/4 x 1-1/2 x 3/16 inch

2шт.

24

TX440209

CYLINDER

- track tension (Also order TX440204), Includes: Ref. 24A and 24B

2шт.

24a

40805S

CAP - cylinder

1шт.

24b

40804S

TUBE - cylinder

1шт.

25

TX401025

COMPRESSION SPRING

SPRING - track tensioning

2шт.

26

461-33816

HEX SOC SCREW,3/8"-16 x 1"

BOLT - hex socket head, 3/8 NC x 1 inch

8шт.

27

492-11038

LOCK WASHER,3/8"

8шт.

28

TX440205

FLANGE

- tension spring

2шт.

29

TX440208

LARGE PLATE

PLATE - cylinder end

2шт.

30

461-43116

HEX SOC SCREW,Flat Hd, 5/16"-18 x 1"

BOLT - hex socket, 5/16 NC x 1 inch

4шт.

31

TX440212

BRACKET

- idler wheel

4шт.

32

TX401026

PIN, ROLL

PIN - roll

4шт.

33

TX401024

BALL BEARING,29.995 mm ID x 61.993 mm OD x 15.936 mm

BEARING - roller

4шт.

34

TX440203

SHAFT

- idler wheel

2шт.

35

TX440207

WHEEL

- idler, Includes: Ref. 35A and 35B

2шт.

35a

40826S

HUB - idler wheel

1шт.

35b

40825S

WHEEL, idler

1шт.
