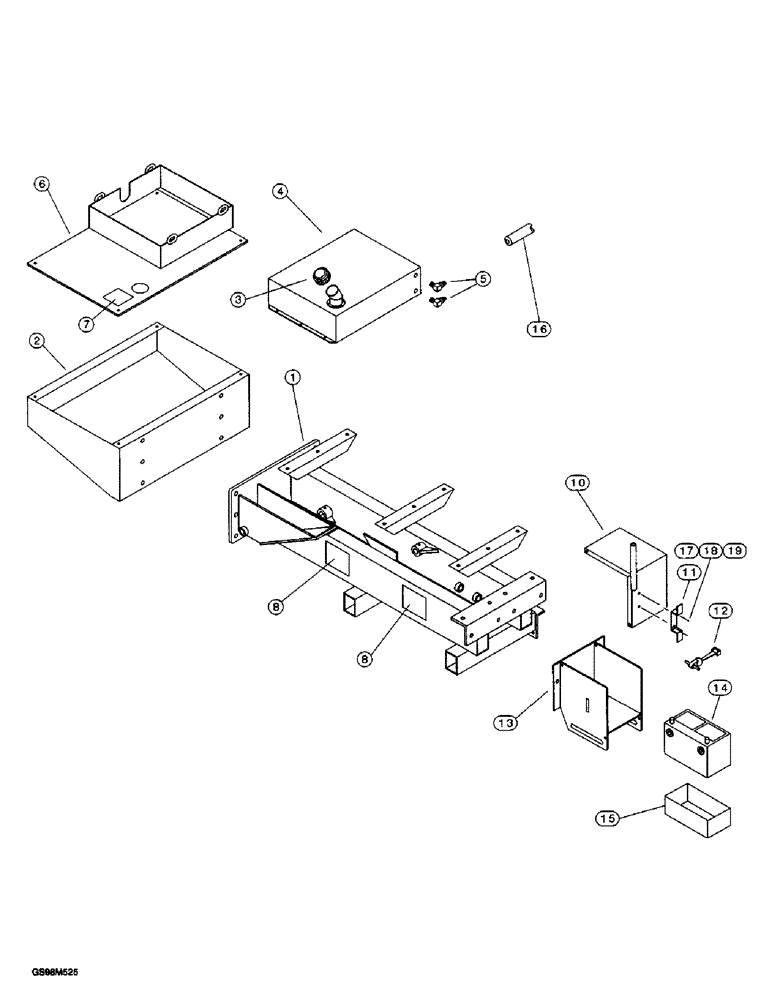

Запчасти Case 200TX (9-06) - FRAME, FUEL TANK AND BATTERY BOX

1

TX440100

FRAME

- drill

1шт.

2

TX440129

SUPPORT

- rear

1шт.

3

TX460001

CAP

- fuel tank

1шт.

4

TX440128

FUEL TANK

TANK - fuel

1шт.

5

TX402200

FITTING

- barbed hose

2шт.

6

TX440146

MOUNTING PARTS

SUPPORT - water tank

1шт.

7

00931378

DECAL

- diesel fuel

1шт.

8

283609A1

DECAL

- Warning, pinch point hazard

2шт.

10

TX440133

COVER

- battery box

1шт.

11

TX440134

CONDUIT

BRACKET - cord warp

1шт.

12

TX407900

LATCH

- rubber T-handle

1шт.

13

TX440121

BATTERY BOX

BOX - battery

1шт.

14

40341215

BATTERY

- electrical supply, 12 volt

1шт.

15

TX400205

TRAY

- battery

1шт.

16

328012A1

HOSE - fuel, 1/4 ID x 12 inch

8шт.

17

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

18

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

19

231-14110

LOCK NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

2шт.
