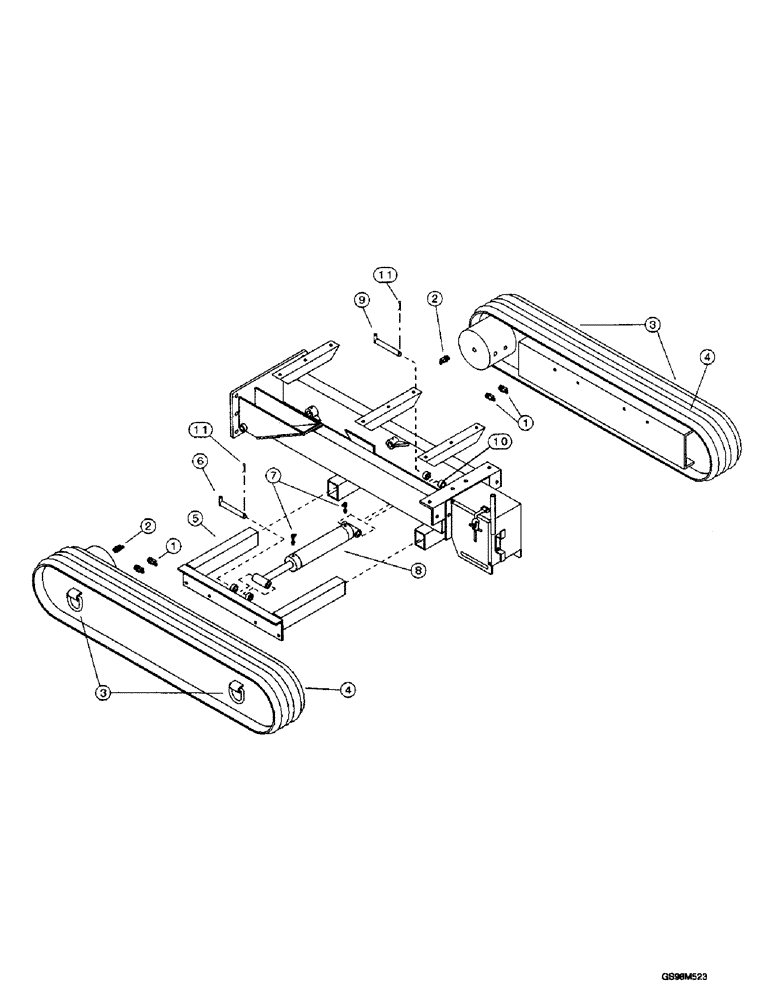

Запчасти Case 200TX (9-04) - UNDERCARRIAGE

1

218-5342

ELBOW,45 Degree, 9/16"-18, 37 Degree x 7/8"-14, O-Ring

- 45 degree, 9/16-18 flare x 7/8-14 inch adj O-ring boss

4шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

2

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, 7/16-20 inch flare x adj O-ring boss

2шт.

3

TX404018

RING

- lashing

4шт.

4

TX200112

RUBBER

TRACK - rubber

2шт.

5

TX440123

FUNNEL

UNDERCARRIAGE - expandable

1шт.

6

TX452112

PIN

- attaching

1шт.

7

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, 7/16-20 inch flare x adj O-ring boss

2шт.

8

00450011

CYLINDER ASSY.

CYLINDER - undercarriage

1шт.

9

00520012

PIN

- attaching

1шт.

10

328272A1

BUSHING

4шт.

11

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

2шт.

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.
