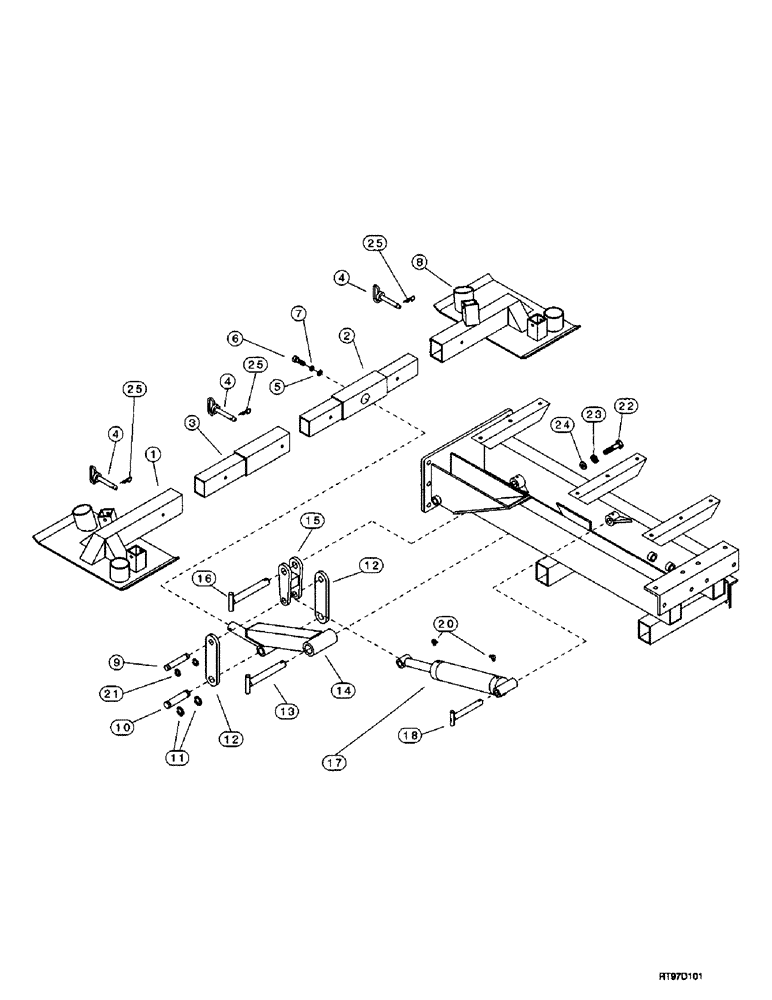

Запчасти Case 200TX (9-02) - REAR STABILIZERS

1

TX440140

PAD, RUBBER

PAD - rear stabilizer, right-hand, 3 inch auger hole

1шт.

1

85040349

PAD

- rear stabilizer, right-hand, 4-1/2 inch auger hole

1шт.

2

TX440138

TUBE

- cross stabilizer

1шт.

3

TX440132

TUBE,22.5" L

EXTENSION - rear stabilizer

1шт.

4

30023318

PIN

- clevis tube lock

3шт.

5

TX440144

WASHER

- special

1шт.

6

413-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

- hex

1шт.

7

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

1шт.

8

TX440141

PAD, RUBBER

PAD - rear stabilizer, left-hand, 3 inch auger hole

1шт.

8

85040350

PAD, RUBBER

PAD - rear stabilizer, left-hand, 4-1/2 auger hole

1шт.

9

TX440114

PIN

- stabilizer, middle

1шт.

10

TX440113

PIN

- stabilizer, lower

1шт.

11

TX498410

RING, SNAP

RING - snap, 1-1/8 inch

2шт.

12

TX440103

LINK

- stabilizer, lower

2шт.

13

TX440171

PIN

- stabilizer pivot

1шт.

14

TX440104

ARM

- stabilizer

1шт.

15

TX440102

LINK

- stabilizer, upper

1шт.

16

TX440116

PIN

- attaching

1шт.

17

00450012

CYLINDER ASSY.

CYLINDER - rear stabilizers with stop

1шт.

18

TX440117

PIN

- anchor, cylinder

1шт.

20

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, 7/16-20 inch flare x adj O-ring boss

2шт.

21

01539812

RING, SNAP

RING - snap, 1 inch

2шт.

22

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

24

TX402804

WASHER

- special

1шт.

25

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

3шт.

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.
