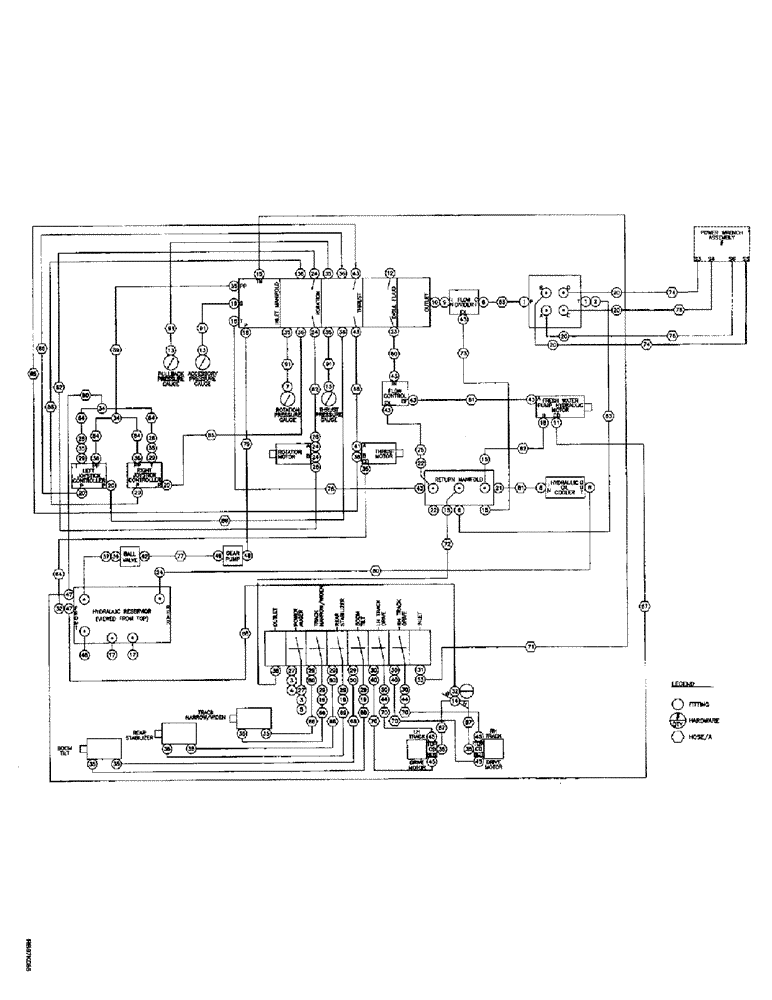

Запчасти Case 200TX (9-42) - HYDRAULIC CIRCUIT FITTINGS

1

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

2шт.

2

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

- 45 degree, 9/16-18 inch flare x swivel

1шт.

3

80308057

FITTING

NIPPLE - pipe, 1/2 x 3-1/2 inch

2шт.

4

15050212

NIPPLE, LUBE

COUPLER - self sealing, male

1шт.

5

15050112

COUPLING

COUPLER - self sealing, female

1шт.

6

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss

2шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

7

218-1032

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, Fem Pipe

ADAPTER - straight, 7/16-20 flare x 1/4 inch female PT

1шт.

8

218-1046

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF

- 90 degree, 1-1/16-12 flare x 1 inch PT

2шт.

9

234788A1

CONNECTOR, ELEC

ADAPTER - straight, swivel, special

1шт.

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

10

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, 1-1/16-12 flare x 1-5/16-12 inch adj O-ring boss

1шт.

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

11

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, 7/16-20 flare x 1/4 inch PT

1шт.

12

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

- hex, 1-1/16-12 inch O-ring boss

1шт.

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

13

218-1072

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/4"-18, Fem NPTF

- 90 degree, 7/16-20 flare x 1/4 inch female PT

3шт.

14

218-1235

TEE,7/16"-20, 37 Degree, Blkhd

- 7/16-20 inch flare branch x flare x bulkhead flare

1шт.

218-1252

BHD LOCK NUT,Blkhd, 7/16"-20

NUT - hex, lock, bulkhead, 7/16 inch NF

1шт.

15

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

4шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

16

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 45 degree, 1-1/16-12 inch flare x adj O-ring boss

1шт.

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

17

217-410

PLUG,Hex Hd, 1/2" - 14 NPT

2шт.

18

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

2шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

19

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER - straight, 7/16-20 flare x O-ring boss

5шт.

20

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

ADAPTER - straight, 7/16-20 flare x 9/16-18 inch O-ring boss

8шт.

21

218-5553

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree long, 1-1/16-12 inch flare x O-ring boss

1шт.

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

22

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree, 3/4-16 inch flare x adj O-ring boss

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

23

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 3/4-16 flare x 1-1/16-12 inch O-ring boss

1шт.

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

24

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss

5шт.

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

25

214389

PLUG,3/4" - 16 ORB

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

26

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16-12 inch flare x swivel

2шт.

27

D-39471

ADAPTER - straight, 1/2 inch O-ring boss x 1/2 inch female PT

2шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

28

218-5170

ELBOW,45 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Female JIC

2шт.

29

218-5339

ADAPTER - straight, 3/4-16 O-ring boss x 7/16-20 inch female O-ring boss

8шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

30

218-5314

ADAPTER,1/2" NPT Male x 1/2" Fem ORB

- straight, 3/4-16 O-ring boss x 9/16-18 inch female O-ring boss

4шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

31

218-5261

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

- straight, 7/8-14 male O-ring boss x 3/4 inch female

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

32

218-5228

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

- 90 degree, 7/16-20 inch flare x swivel

2шт.

33

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

34

218-841

TEE,37 Degree, 7/16"-20 x 7/16"-20, Fem Sw Br

- 7/16-20 inch swivel branch x flare x flare

2шт.

35

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, 7/16-20 inch flare x adj O-ring boss

15шт.

36

218-5283

ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

- 90 degree, 7/16-20 flare x 9/16-18 inch adj O-ring boss

6шт.

37

315-178A1

ELBOW - 90 degree, 1-5/16-12 adj O-ring x 1 inch female PT

1шт.

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

38

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adj O-ring boss

2шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

39

218-1074

ELBOW

NIPPLE - hex, 1 PT x 2-11/32 inch

1шт.

40

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss

2шт.

41

218-5340

ELBOW - 90 degree, long, 3/4-16 flare x 7/8-14 inch adj O-ring boss

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

42

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

ADAPTER - straight, 1-5/16-12 flare x 1 inch PT

1шт.

43

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, 3/4-16 flare x 1-1/16-12 inch adj O-ring boss

8шт.

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

44

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, 9/16-18 inch flare x adj O-ring boss

2шт.

45

218-5342

ELBOW,45 Degree, 9/16"-18, 37 Degree x 7/8"-14, O-Ring

- 45 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss

4шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

46

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss

1шт.

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

47

218-5189

TEE,1-7/8" - 12 Male JIC x 1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

- 1-7/8-12 inch adj O-ring branch x flare x flare

2шт.

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk

1шт.

48

273916

PLUG,Hex, 1-5/16" - 12 ORB

1шт.

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

49

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adj O-ring boss

1шт.

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

50

218-5133

ELBOW,45 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 45 degree, 7/16-20 inch flare x adj O-ring boss

3шт.

218-1252

BHD LOCK NUT,Blkhd, 7/16"-20

NUT - hex lock, bulkhead, 7/16 inch NF

1шт.

60

TX200621

HOSE ASSY.

HOSE - 419 mm (16-1/2 inch) long, control valve to flow control IN

1шт.

61

TX200721

HOSE ASSY.

HOSE - 1066 mm (42 inch) long, flow control CF to fresh water pump hydraulic motor A

1шт.

62

TX200921

HOSE ASSY.

HOSE - 3607 mm (142 inch) long, control valve to rotation motor A and B

2шт.

63

TX201021

HOSE ASSY.

HOSE - 254 mm (10 inch) long, flow divider CF to power wrench valve P

1шт.

64

TX201121

HOSE ASSY.

HOSE - 3353 mm (132 inch) long, thrust motor, Serial Range: CD-reservoir

1шт.

65

TX201221

HOSE ASSY.

HOSE - 3048 mm (120 inch) long, control valve to thrust motor A and B

2шт.

66

TX401311

HOSE ASSY.

HOSE - 3120 mm (122-3/4 inch) long, control valve to track cylinder and control valve to stabilizer cylinder

3шт.

67

TX201421

HOSE ASSY.

HOSE - 800mm (31-1/2 inch) long, fresh water pump hydraulic motor, Serial Range: CD-reservoir

1шт.

68

TX401511

HOSE ASSY.

HOSE - 1900 mm (74-3/4 inch) long, control valve to boom tilt cylinder

2шт.

69

TX401811

HOSE ASSY.

HOSE - 2890 mm (136-3/4 inch) long, control valve to stabilizer cylinder

1шт.

70

TX401911

HOSE ASSY.

HOSE - 3890 mm (153 inch) long, control valve to track drive motors

4шт.

71

TX202021

HOSE ASSY.

HOSE - 3226 mm (127 inch) long, control valve inlet to inlet manifold TM

1шт.

72

TX402011

HOSE ASSY.

HOSE - 3120 mm (123 inch) long, control valve outlet to return manifold

1шт.

73

TX202221

HOSE ASSY.

HOSE - 368 mm (14-1/2 inch) long, flow divider EX to return manifold

1шт.

74

TX202321

HOSE ASSY.

HOSE - 2235 mm (88 inch) long, power wrench control valve B and D to power wrench manifold S3 and S5

2шт.

75

TX202421

HOSE ASSY.

HOSE - 559 mm (22 inch) long, flow control EX to return manifold

1шт.

76

303524A1

HOSE ASSY.

HOSE - 2159 mm (85 inch) long, power wrench control valve A and C to power wrench manifold S4 and S6

2шт.

77

TX202821

HOSE ASSY.

HOSE - 140 mm (5-1/2 inch) long, ball valve to gear pump

1шт.

78

TX203021

HOSE ASSY.

HOSE - 216 mm (8-1/2 inch) long, inlet manifold T to return manifold

1шт.

79

TX203121

HOSE ASSY.

HOSE - 419 mm (16-1/2 inch) long, inlet manifold P to gear pump

1шт.

80

TX203221

HOSE ASSY.

HOSE - 1029 mm (40-1/2 inch) long, oil cooler, Serial Range: OUT-reservoir

1шт.

81

TX203821

HOSE ASSY.

HOSE - 1651 mm (65 inch) long, oil cooler IN to return manifold

1шт.

82

TX203921

HOSE ASSY.

HOSE - 279 mm (11 inch) long, fresh water pump hydraulic motor B return manifold

1шт.

83

TX204021

HOSE ASSY.

HOSE - 838 mm (33 inch) long, power wrench control valve T to return manifold

1шт.

84

TX204421

HOSE ASSY.

HOSE - 699 mm (27-1/2 inch) long, tee to left and right joystick

4шт.

85

TX204621

HOSE ASSY.

HOSE - 2438 mm (96 inch) long, left and right joystick P to control valve

2шт.

86

TX204721

HOSE ASSY.

HOSE - 2083 mm (82 inch) long, left and right joystick P to control valve

2шт.

87

TX405211

HOSE ASSY.

HOSE - 1380 mm (54-3/8 inch) long, tee to track drive motors CD

2шт.

88

TX205321

HOSE ASSY.

HOSE - 635 mm (25 inch) long, Serial Range: bulkhead-reservoir

1шт.

89

TX205421

HOSE

- 1651 mm (65inch) long, tee to inlet manifold PP

1шт.

90

TX205521

HOSE

- 1930 mm (76 inch) long, Serial Range: tee-reservoir

1шт.

91

TX404511

HYDRAULIC HOSE

- 840 mm (33 inch) long, Control, Serial Range: valve-gauges

4шт.

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
