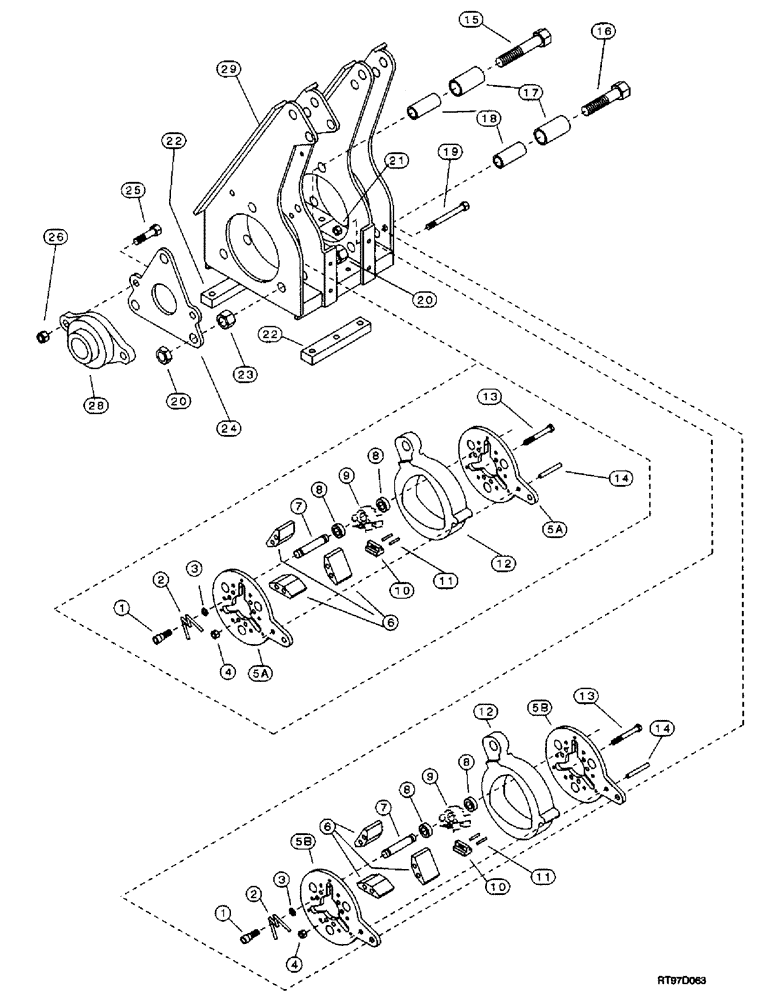

Запчасти Case 200TX (9-38) - POWER WRENCH

1

73091259

BOLT

- hex socket, shoulder, 1/2 NC x 1/2 inch

12шт.

2

73009287

SPRING

- torsion

12шт.

3

492-11038

LOCK WASHER,3/8"

12шт.

4

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

12шт.

5a

73040307

RIGID TUBE,0.75" OD, 9.875" Length

PLATE - jaw, front wrench

2шт.

5b

73040116

LARGE PLATE

PLATE - jaw, rear wrench

2шт.

6

73025025

BLOCK

- thrust

6шт.

7

73026025

PIN

- attaching, cam follower

6шт.

8

73016227

CAM

ROLLER - cam

12шт.

9

73041676

CARRIER

HOLDER - jaw

6шт.

10

73040252

JAW

- power wrench

6шт.

11

73031676

PIN

- retaining, jaw

12шт.

12

73040117

CAMSHAFT

CAM - power wrench

2шт.

13

73040181

BOLT

- hex, 7/16 NC x 3-3/4 inch

12шт.

14

TX440189

PIN

- stop

2шт.

15

292712A1

BOLT

- hex, 1 NC x 4-1/2 inch, rear wrench (replaces 413-1672)

3шт.

16

292711A1

BOLT

- hex, 1 NC x 5-1/2 inch, front wrench (replaces 413-1688)

3шт.

17

73016225

BEARING, THRUST,35.3 mm ID, 44.4 mm OD, 76 mm Length

TUBE - bearing

6шт.

18

73016222

BRONZE BUSHING

BEARING - bronze

6шт.

19

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

- hex, 1/2 NC x 4-1/2 inch

2шт.

20

425-1416

JAM NUT,Jam, 1"-8, G5

- hex, jam, 1 inch

6шт.

21

231-1448

NUT,1/2"-13, GB

- hex, lock, 1/2 inch

2шт.

22

A313423A1

BAR - shim, power wrench (replaces TX440686)

2шт.

HELD ON BY BOLT WITH P/N 413-828

1шт.

23

231-14416

LOCK NUT,1"-8, GB

NUT - hex, 1 inch

3шт.

24

73040119

GASKET

PLATE - bearing, rod guide

1шт.

25

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

2шт.

26

231-14412

LOCK NUT,3/4"-10, GB

NUT - hex, lock, 5/8 inch

2шт.

28

30647822

GUIDE

BEARING - rod guide, 2-1/8 inch (option)

1шт.

28

00647800

FLANGED BEARING,60mm ID x 149.7mm OD x 69.1mm

BEARING - rod guide, 2-3/8 inch (standard)

1шт.

CONFIRMED WITH SUPPLIER THAT ID ON THIS PART IS 2.25". NOT 2.125".

1шт.

29

73040594

SUPPORT

FRAME - power wrench

1шт.
