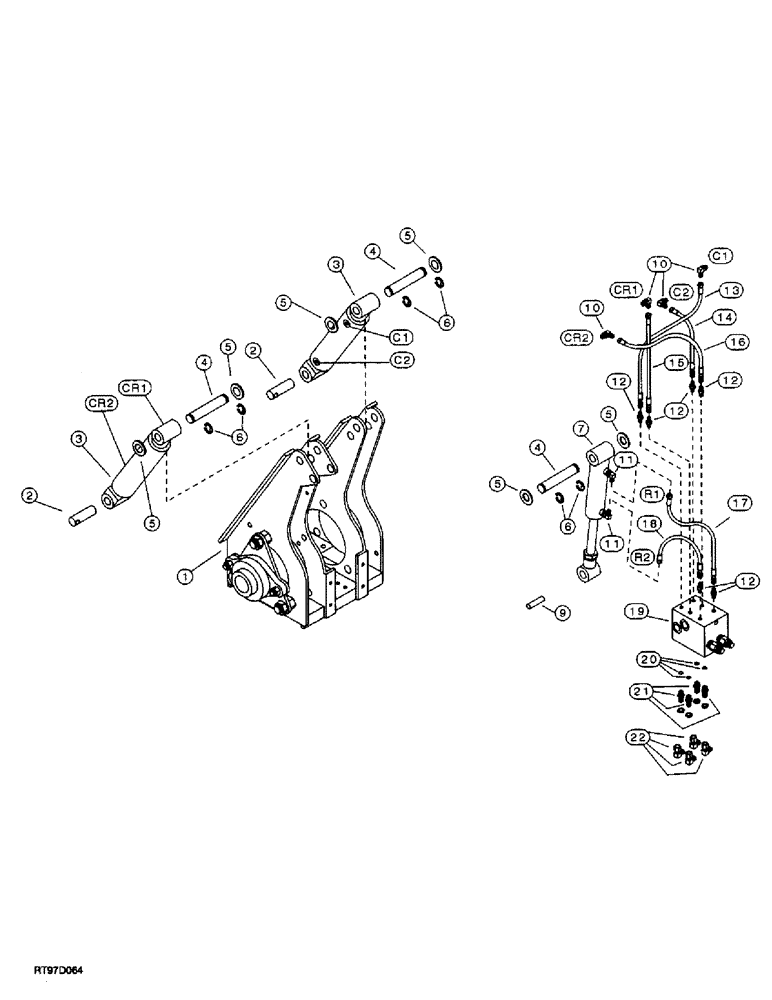

Запчасти Case 200TX (9-36) - POWER WRENCH HYDRAULICS

1

REF

INSTRUCTION

FRAME - power wrench (See Fig. 9-38)

1шт.

2

73040199

PIN

- attaching

3шт.

3

73042496

CYLINDER ASSY.

CYLINDER - clamping

2шт.

4

73040143

PIN

- attaching

2шт.

5

TX400038

WASHER

- special

6шт.

6

01539812

RING, SNAP

RING - retaining

6шт.

7

73042396

CYLINDER

- rotation

1шт.

9

73040367

PIN

- attaching, 1 x 3 inch

1шт.

10

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, 7/16-20 inch flare x adj O-ring boss

4шт.

11

6801-4-ORF

ELBOW

- 90 degree, orificed

2шт.

12

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR - straight, 7/16-20 flare x O-ring boss

6шт.

13

73004053

HOSE ASSY.

HOSE - 470 mm (18-3/8 inch) long, power wrench C1

1шт.

14

73004054

HOSE ASSY.

HOSE - 290 mm (11-3/8 inch) long, power wrench C2

1шт.

15

73004053

HOSE ASSY.

HOSE - 470 mm (18-3/8 inch) long, power wrench CR1

1шт.

16

73004056

HOSE ASSY.

HOSE - 340 mm (13-3/8 inch) long, power wrench CR2

1шт.

17

73004051

HOSE ASSY.

HOSE - 420 mm (16-3/8 inch) long, power wrench R1

1шт.

18

73004052

HOSE ASSY.

HOSE - 640 mm (25-3/8 inch) long, power wrench R2

1шт.

19

73004249

SUCTION PIPE

MANIFOLD - power wrench, Includes: Ref. 19A and 19B

1шт.

19a

73004249A

MANIFOLD

- power wrench, without sequence valve

1шт.

19b

73004249B

VALVE, CONTROL

VALVE - sequence cartridge

2шт.

21

218-671

FITTING,Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

ADAPTER - straight, 7/16-20 inch flare x bulkhead flare

4шт.

218-1252

BHD LOCK NUT,Blkhd, 7/16"-20

NUT - hex, lock, bulkhead, 7/16 inch NF

4шт.

22

218-5228

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

- 90 degree, 7/16-20 inch flare x swivel

4шт.

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

20

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

4шт.
