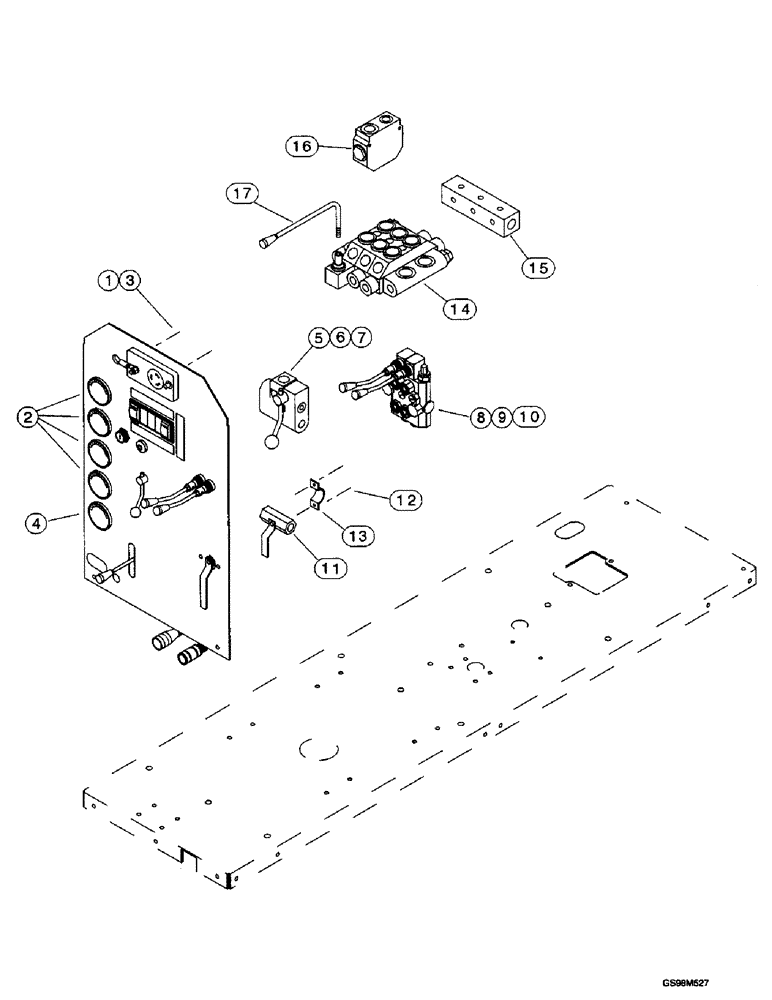

Запчасти Case 200TX (9-34) - CONTROL VALVES

1

440-1066

SCREW,Cross Pan Hd, #6-32 x 3/8"

- PHD, 6-32 x 3/8

12шт.

2

TX472185

GAUGE

- pressure, 5000 PSI

4шт.

3

440-1066

SCREW,Cross Pan Hd, #6-32 x 3/8"

- PHD, 6-32 x 3/8

12шт.

4

TX472183

GAUGE

- pressure, 3000 PSI

1шт.

5

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

7

02300011

CONTROL

VALVE - flow control

1шт.

8

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

9

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

10

TX203000

VALVE, CONTROL

VALVE - control, 2 spool

1шт.

11

01400111

BALANCE VALVE

VALVE - ball, 1/2 inch PT

1шт.

12

344873A1

BOLT - 3/8-16 x 1 inch, button head cap

2шт.

13

15011032

BRACKET

- mounting, ball valve

1шт.

14

TX206000

VALVE

- control, 3 spool

1шт.

TX404034C

SOLENOID

VALVE - solenoid

1шт.

TX404034D

SOLENOID

COIL - solenoid valve

1шт.

TX404034G

VALVE

- relief, 3200 PSI

1шт.

15

TX200308

SUCTION PIPE

MANIFOLD - return line

1шт.

16

M0412011

VALVE

- priority flow divider

1шт.

17

NSS

NOT SOLD SEPARAT

HANDLE - control valve

1шт.
