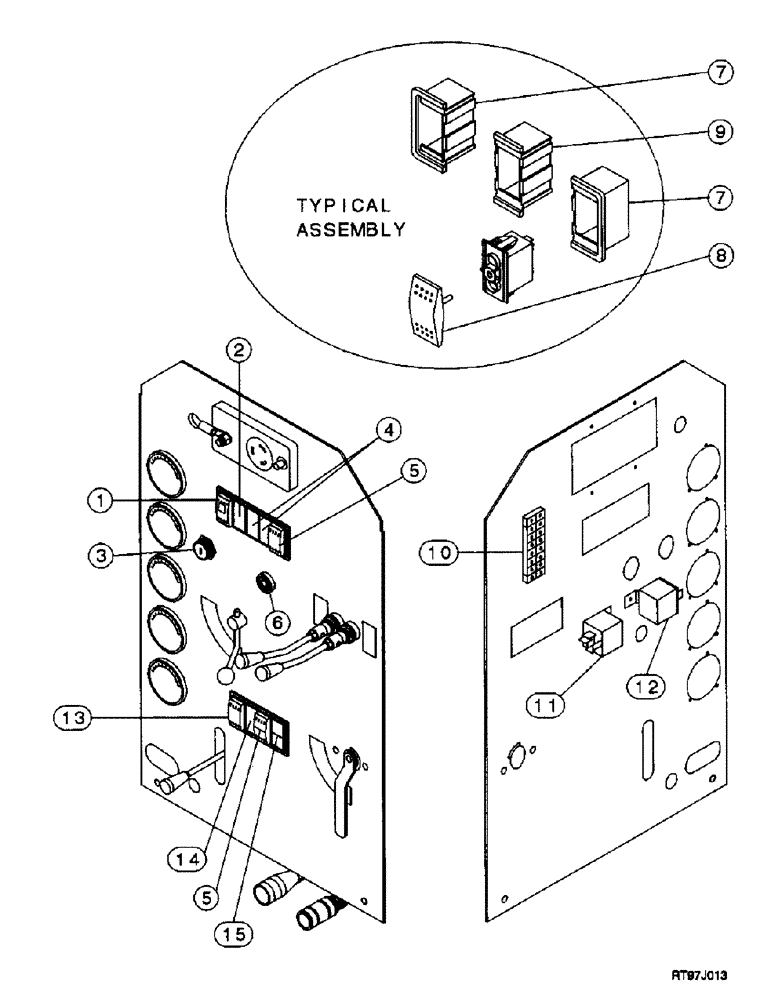

Запчасти Case 200TX (9-32) - ELECTRICAL CONTROLS

1

TX444326

SWITCH

- on/off/on, DPDT

1шт.

2

TX402214

LIGHT

- indicator, amber

1шт.

3

TX408231

SWITCH

- key

1шт.

KEY FOR NO. 3 IS TX400331.

1шт.

4

TX402114

LIGHT

- indicator, red

2шт.

5

TX444324

SWITCH

- on/off/on, DPDT, momentary

2шт.

6

TX400131

DIPSTICK

INDICATOR - glow plug

1шт.

7

TX444383

CONTROL PANEL

BOX - switch and light mounting, end

4шт.

8

TX444361

ACTUATOR

- switch

4шт.

9

TX444384

CONTROL PANEL

BOX - switch and light mounting, center

5шт.

10

12071513

BLOCK

- terminal, 8 pole

1шт.

11

TX445113

RELAY

- seat switch

1шт.

12

TX400231

RELAY

- starter

1шт.

13

TX444302

SWITCH

- on/off, SPST

1шт.

14

TX452251

LIGHT

- indicator, blue

1шт.

15

98052244

LIGHT

- indicator, dual green

1шт.
