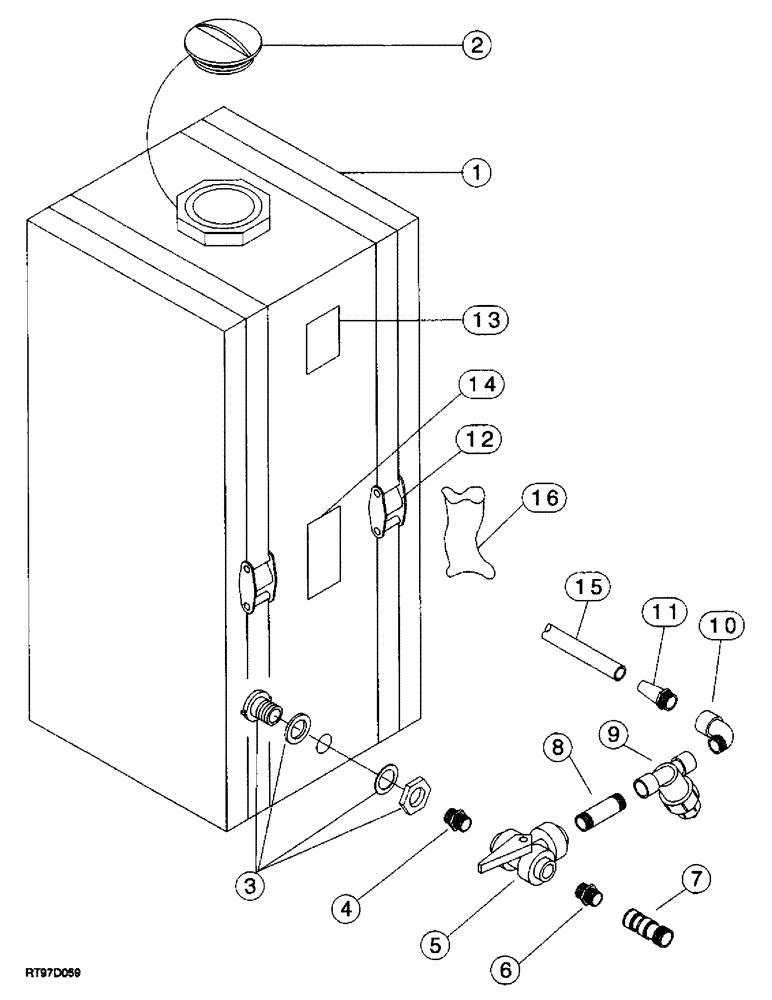

Запчасти Case 200TX (9-30) - WATER TANK

1

TX400055

RESERVOIR

TANK - water, 55 gallon, Includes: Ref. 2

1шт.

2

TX400155

CAP

- filler

1шт.

3

60401

FITTING

- bulkhead

1шт.

4

221-1211

FITTING

NIPPLE - straight, 3/4 PT x 1-3/8 inch

1шт.

5

52090011

VALVE

- ball, multi-port, 3/4 inch

1шт.

6

344834A1

FITTING

ADAPTER - straight, swivel

1шт.

7

11116311

COUPLING

COUPLER - garden hose

1шт.

8

NIP075-4

NIPPLE, LUBE

NIPPLE - pipe

1шт.

9

00758011

STRAINER ASSY.

STRAINER - water

1шт.

10

98759018

ELBOW

- street (replaces 315074A1)

1шт.

11

98750018

FITTING

- barb

1шт.

12

TX401085

STRAP

- tie down, 2 inch

2шт.

13

00940805

DECAL

- Caution, fresh water only

1шт.

14

00940804

DECAL

- Caution, flow path

1шт.

15

314617A1

HOSE

- 3/4 x 84 inch

1шт.

16

00056012

SOCKET

SOCK - hose, 12 inch

2шт.
