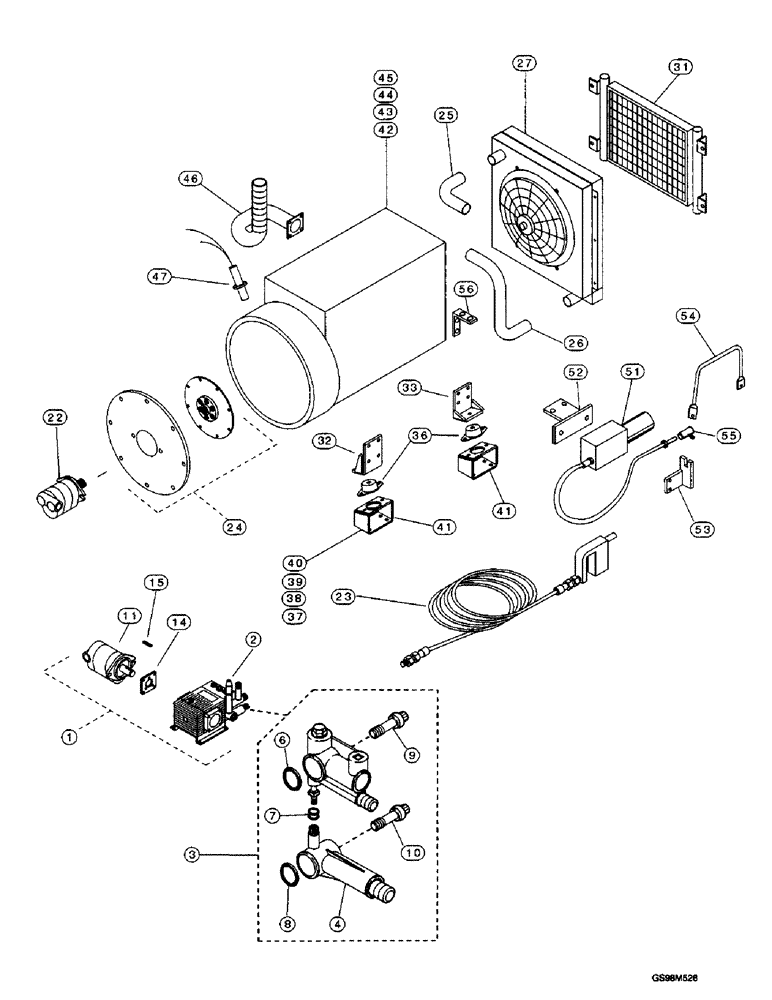

Запчасти Case 200TX (9-26) - ENGINE, WATER PUMP AND HYDRAULIC PUMP

1

TX400161

ASSEMBLY

PUMP ASSEMBLY - water, Includes: Ref. 2 - 15

1шт.

2

30041512

PUMP, WATER

PUMP - water, Includes: Ref. 3 - 10

1шт.

3

30490011

VALVE

UNLOADER ASSEMBLY - water pump, Includes: Ref. 4 - 8

1шт.

4

1265890

PROTECTION

HOUSING - manifold

1шт.

00490111

KIT

- repair, unloader

1шт.

6

720030

O-RING

- water pump

1шт.

7

770140

O-RING

- housing

2шт.

8

1180140

O-RING

- water pump

1шт.

9

01260580

BOLT

- special, unloader, 3/8 inch

1шт.

10

01260550

BOLT

- special, unloader, 1/2 inch

1шт.

11

36003611

MOTOR, HYDRAULIC

MOTOR - hydraulic, water pump

1шт.

36001211C

SEAL

- motor

1шт.

36001211B

RING

- retaining

1шт.

14

10065322

LARGE PLATE

PLATE - adapter

1шт.

15

36001311

KEY

- square

1шт.

22

TX211125

PUMP

- gear

1шт.

23

TX429318

SPRAY

WAND - pressure washer

1шт.

24

TX212334

COUPLING

-, Serial Range: flywheel-pump

1шт.

25

TX400311

HOSE ASSY.

HOSE - radiator, upper

1шт.

26

TX440303

RADIATOR HOSE

Lower

1шт.

27

328085A1

RADIATOR

- engine coolant

1шт.

28

231-1445

NUT,5/16"-18, GB

NUT - 5/16 PT, non-metallic

4шт.

29

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

8шт.

30

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

31

TX401012

COOLER

- hydraulic oil

1шт.

32

TX440111

BRACKET

- mounting, engine, upper rear

2шт.

33

TX440112

BRACKET

- mounting, engine, upper front

2шт.

34

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

- M10 x 25 class

2шт.

35

892-11010

LOCK WASHER,M10

Spring lock M10

16шт.

36

TX425641

MOUNTING PARTS

ISOLATOR - engine

4шт.

37

231-1448

NUT,1/2"-13, GB

- 1/2-13 PT, non-metallic

4шт.

38

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

4шт.

39

496-21053

WASHER,17/32" x 1 1/16" x .134"

- 3/8 inch

8шт.

40

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

41

TX440180

BRACKET

- mounting, engine, lower rear, and front

4шт.

42

TX400031

ENGINE ASSEMBLY

ENGINE - diesel 35 HP

1шт.

43

TX476062

SWITCH

- engine oil pressure

1шт.

44

00010012

FILTER, ENGINE OIL

FILTER - engine oil

1шт.

45

TX400031B

FILTER, FUEL

FILTER - diesel fuel

1шт.

46

TX201652

PIPE, EXHAUST SYSTEM

PIPE - exhaust

1шт.

47

TX471544

SENSOR

- magnetic

1шт.

51

284848A1

ACTUATOR

- throttle, electric

1шт.

284862A1

BOARD

- circuit, actuator, with gasket

1шт.

284864A1

GEAR

MOTOR - actuator, 12 VDC

1шт.

284866A1

CABLE

- actuator push/pull

1шт.

284872A1

GASKET

- cover

1шт.

52

284236A1

BRACKET

- actuator mounting

1шт.

53

300222A1

BRACKET

- throttle cable

1шт.

54

284234A1

LINKAGE

LINK - throttle actuator

1шт.

55

H327494

JOINT TURNING

STOP - wire

1шт.

56

TX440164

BRACKET

- fuel filter mounting

1шт.
