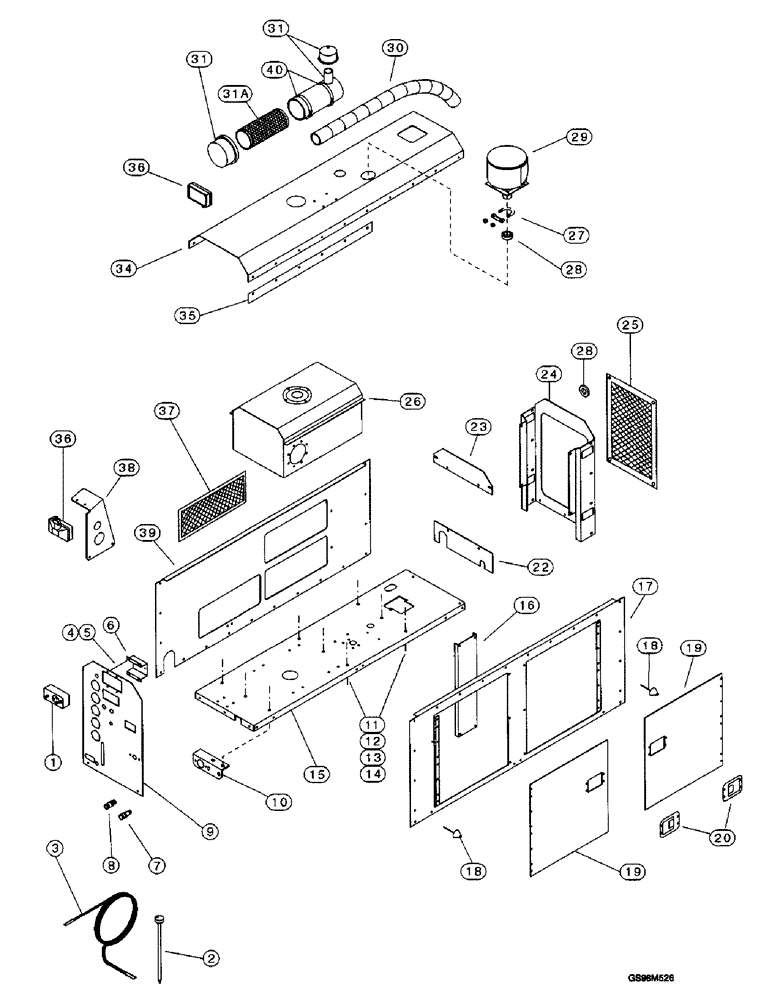

Запчасти Case 200TX (9-24) - ENGINE ENCLOSURE

1

00071215

ALARM

- electrical strike, Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

STAKE - electrical strike

1шт.

3

NSS

NOT SOLD SEPARAT

CABLE - electrical strike

1шт.

4

231-1445

NUT,5/16"-18, GB

NUT - 5/16 inch PT, non-metallic

4шт.

5

461-73112

HEX SOC SCREW,Btn Hd, 5/16"-18 x 3/4"

SCREW - hex socket, button head, 5/16 inch

1шт.

6

TX440130

BRACKET

- mounting, electrical strike

1шт.

7

10010311

COUPLING

COUPLER - self sealing, female half (Brass)

1шт.

7

10010312

NIPPLE, LUBE

COUPLER - self sealing, male half (Brass)

1шт.

8

00400511

COUPLING

COUPLER - self sealing, female half (Stainless steel)

1шт.

8

00400512

NIPPLE, LUBE

COUPLER - self sealing, male half (Stainless steel)

1шт.

9

TX240188

CONSOLE

PANEL - instrument

1шт.

10

TX440186

SUPPORT

BRACKET - socket and coupler mounting

1шт.

11

231-1448

NUT,1/2"-13, GB

- 1/2 PT, non- metallic

9шт.

12

496-21053

WASHER,17/32" x 1 1/16" x .134"

- 1/2 PT, non- metallic

14шт.

13

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Non- metallic Hex, 1/2"-13 x 1 1/2", G5, Full Thd

6шт.

14

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- - 1/2 PT, non- metallic

1шт.

15

TX440179

PLATE

- base, enclosure

1шт.

16

TX440608

FRAME

CHANNEL - support

1шт.

17

TX440154

PANEL

- side, enclosure

1шт.

18

NSS

NOT SOLD SEPARAT

BUMPER - rubber stop

2шт.

19

TX440577

PANEL

DOOR - enclosure

2шт.

20

TX401115

LATCH

- door, lockable paddle with key

2шт.

KEY FOR REF. 20 IS TX401116.

1шт.

22

TX400923

SHROUD

DEFLECTOR - air, lower

1шт.

23

TX400924

SHROUD

DEFLECTOR - air, upper

1шт.

24

TX440160

ANCHOR

ENCLOSURE - radiator

1шт.

25

TX440168

PANEL

GUARD - radiator

1шт.

26

REF

INSTRUCTION

RESERVOIR - hydraulic oil (See Fig. 9-28)

1шт.

27

33200

CLAMP

- muffler mounting, 2inch

1шт.

28

99153414

ANCHOR

ISOLATOR - rubber

4шт.

29

TX440306

MUFFLER

- exhaust, custom, low decibel

1шт.

30

TX482101

INTAKE AIR HOSE,44.50 mm ID, 50.80 mm ID x 970.00 mm, SAE J200

HOSE - air filter intake

1шт.

31

H152553

AIR CLEANER

FILTER ASSEMBLY - air, Includes: Ref. 31A

1шт.

31a

TX400031A

FILTER

ELEMENT - air filter

1шт.

34

TX440159

FRAME

COVER - engine enclosure

1шт.

35

TX440174

BAR

- stiffener (If used)

1шт.

36

TX906453

LAMP, WORK

LAMP - work

2шт.

37

TX440167

FRAME

PANEL - side access (replaces 327924A1)

3шт.

S/B TX440167. THE 327924A1 CATALOG IS SHOWING IS AN INSTALLATION DRAWING.

1шт.

38

TX440601

PLATE

BRACKET - mounting, power tube, upper

1шт.

39

TX440161

PANEL

- inside

1шт.

40

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

BAND - air filter mounting, 5-1/2 inch

2шт.
