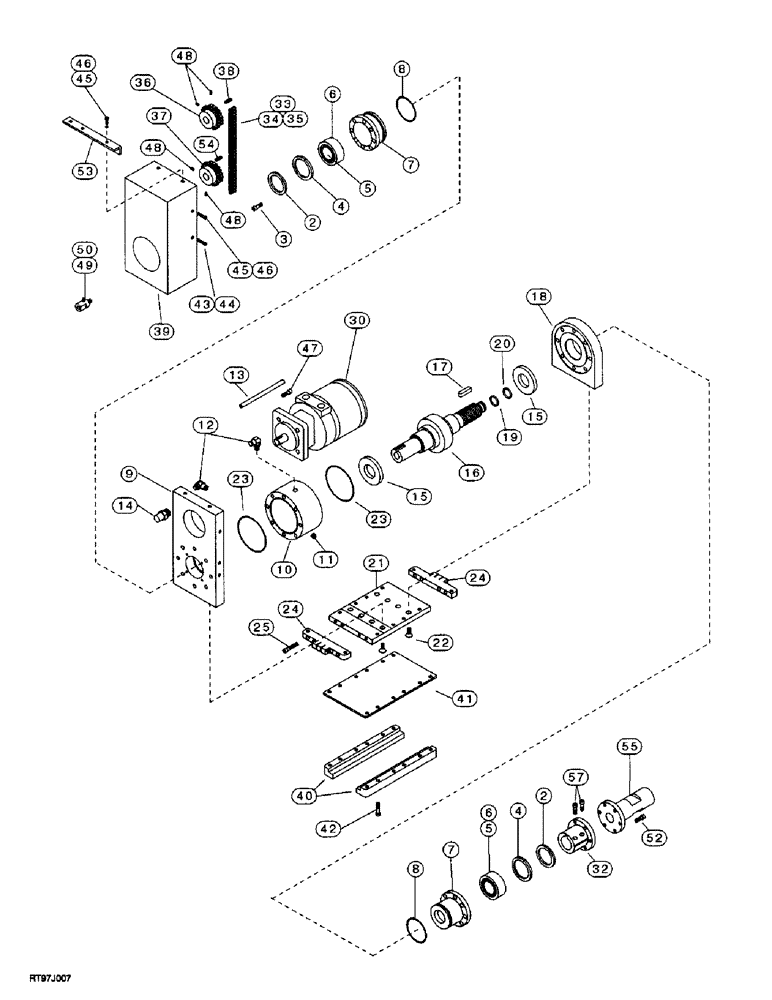

Запчасти Case 200TX (9-22) - DRILL DRIVE

301776A1

DRIVE ASSY.

DRIVE ASSEMBLY - drill, Includes: Ref. 2 - 57

1шт.

TX210043

HEAD ASSY.

HEAD ASSEMBLY - drill drive, Includes: Ref. 2 - 25

1шт.

2

47038017

SEAL

- cap

2шт.

3

NSS

NOT SOLD SEPARAT

BOLT - hex socket, 3/8 NC x 2-1/4 inch, grade 8

16шт.

4

10023116

RING, SNAP

RING - retaining

2шт.

5

28372016

BEARING, NEEDLE

BEARING - needle

2шт.

6

24282016

RACE

- needle bearing

2шт.

7

10010222

HEAD ASSY.

CAP - bearing

2шт.

Shaft OD is 3.745, O-ring groove width is 0.135 and the groove depth is 0.0875 per Carol at supplier Cermack 715 458 2655.

1шт.

8

10023817

O-RING

- bearing cap

2шт.

O-ring is 3.750 OD, 3.500 ID, 1/8 in cross section, Buna 70, 238 std o-ring per Pattie at supplier Lutz 630 539 5500.

1шт.

9

10010722

PLATE

- end, drill head

1шт.

Up until 1996 the dimensions for this plate were 12.875 x 7 x 1 (print rev new) After 1996 the part was modified to lift the head .75". Bormor never changed the part number. The new dimensions are 13.625x7x1(print rev a). If the new plate is used the dealer will have to replace the lower plate Ref. 21 as well.

1шт.

10

10010522

HOUSING

- drill drive

1шт.

11

00070011

PLUG

- 3/8 inch pipe tape

1шт.

12

00080011

FITTING

- hose

2шт.

13

00090011

HOSE

- breather

1шт.

14

00100011

BREATHER

- housing

1шт.

15

10018916

BEARING

- thrust

2шт.

16

10010622

SHAFT

- drill drive

1шт.

17

10011622

KEY

- drive shaft

1шт.

18

10010322

PLATE

- end, drill head

1шт.

Plate has ID 3.750 plus .010 minus .000 per per Carol at supplier Cermack 715 458 2655.

1шт.

19

10011522

BACK-UP RING

RING - back-up

1шт.

20

10011022

O-RING

- drive shaft

1шт.

21

01510932

LARGE PLATE

PLATE - base, drill head

1шт.

22

NSS

NOT SOLD SEPARAT

SCREW - flat head, 1/2 NC x 1-3/4 inch

8шт.

23

NSS

NOT SOLD SEPARAT

O-RING - housing

2шт.

NEED 1 OF 00021617 AND 1 OF 00021618.

1шт.

24

30011022

BLOCK

- thrust chain attaching

2шт.

25

NSS

NOT SOLD SEPARAT

BOLT - hex socket

8шт.

30

TX202906

MOTOR

- hydraulic, drill drive

1шт.

TX202906 should be a two bolt mount, not a 4 bolt as pictured.

1шт.

32

10011722

ADAPTER

- spindle

1шт.

33

10050212

CHAIN (AG)

CHAIN - double roller

1шт.

34

10150212

LINK

- chain connecting

1шт.

35

10250212

LINK

- chain connecting, offset

1шт.

36

10502512

SPROCKET ASSY.

SPROCKET - drive

1шт.

37

10505012

SPROCKET ASSY.

SPROCKET - driven

1шт.

38

10502522

KEY

- square, 5/16 x 5/16 x 1-1/4 inch

1шт.

39

10010832

COVER

GUARD - drill drive

1шт.

40

30011122

SLIDE

- drill head

2шт.

41

30011422

PLATE

- wear, drill head slide

1шт.

42

NSS

NOT SOLD SEPARAT

BOLT - hex socket, 3/8 NC x 1-1/2 inch, grade 8

8шт.

43

NSS

NOT SOLD SEPARAT

BOLT - hex, 1/2 NC x 3/4 inch

4шт.

44

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

45

NSS

NOT SOLD SEPARAT

BOLT - hex, 5/16 NC x 1/2 inch

4шт.

46

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

47

NSS

NOT SOLD SEPARAT

BOLT - hex socket, 1/2 NC x 1-1/4 inch, grade 8

4шт.

Ref. 47 bolt part # is 00017518 (quantity 2) and it also uses 00015007 lock washer and 00019050 lock clip.

1шт.

48

NSS

NOT SOLD SEPARAT

SCREW - set, 3/8 NC x 1/2 inch

4шт.

49

00050011

LINK

SWIVEL - drill drive

1шт.

50

00050011R

KIT

- swivel repair

1шт.

52

NSS

NOT SOLD SEPARAT

BOLT - hex socket, 3/8 NC x 1 inch, grade 8

6шт.

53

10180222

BRACKET

- power tube

1шт.

54

10502622

KEY

- square, 5/16 x 5/16 x 2 inch

1шт.

55

10011822

MANDREL

ADAPTER - drill rod

1шт.

If looking for male thread adapter use 20010123

1шт.

57

NSS

NOT SOLD SEPARAT

BOLT - hex socket, 5/16 NC x 1 inch, grade 8

2шт.
