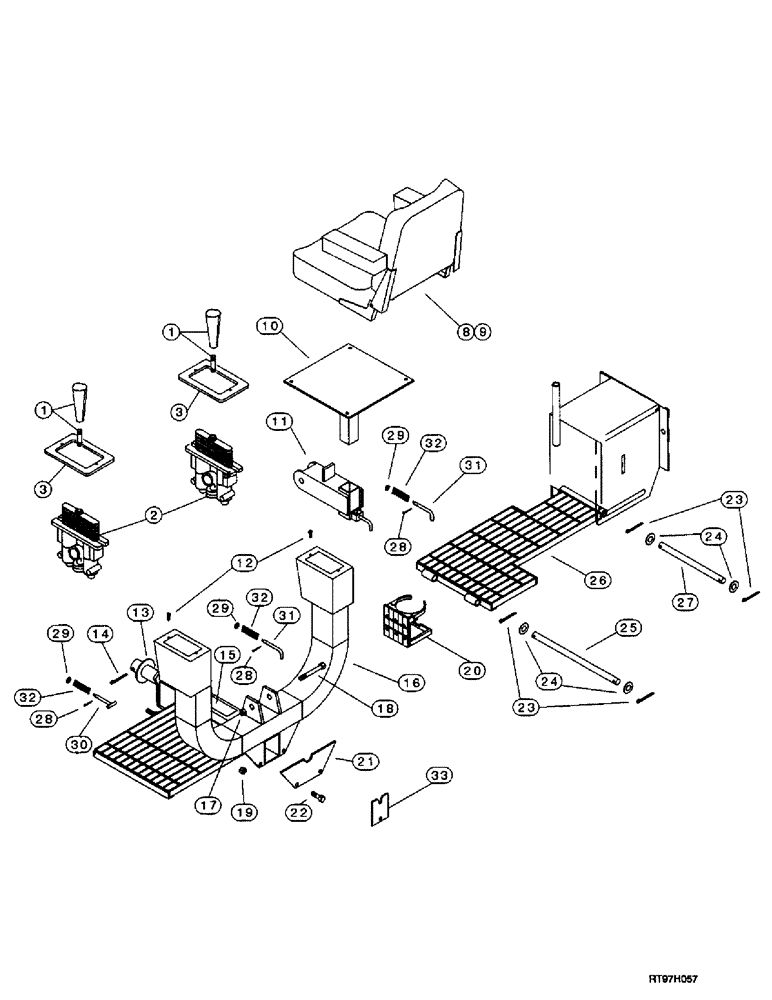

Запчасти Case 200TX (9-20) - OPERATOR CONTROL CENTER

1

TX251973

HANDLE

- joystick

2шт.

2

TX207470

CONTROL

JOYSTICK - control

2шт.

3

TX240273

CONSOLE

PLATE - joystick mounting

2шт.

8

300752A1

SEAT

- operators

1шт.

300752A1 = complete seat with switch in gray

1шт.

320974A1 = seat cushion with switch in gray

1шт.

TX402016 = complete seat with switch in brown

1шт.

TX402014 = seat cushion with switch in brown

1шт.

10

TX440183

PLATE

- seat mounting

1шт.

11

TX440126

TUBE

- seat mount

1шт.

12

NSS

NOT SOLD SEPARAT

BOLT - hex

4шт.

13

NSS

NOT SOLD SEPARAT

WASHER - flat

1шт.

14

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

15

TX478714

TREAD

- no skid (Set)

1шт.

16

TX440125

FRAME

- console

1шт.

17

NSS

NOT SOLD SEPARAT

NUT - hex

1шт.

18

NSS

NOT SOLD SEPARAT

BOLT - hex

1шт.

19

NSS

NOT SOLD SEPARAT

NUT - hex

2шт.

20

TX405912

CUP

HOLDER - cup

1шт.

21

294239A1

COVER

- console (If used)

1шт.

22

NSS

NOT SOLD SEPARAT

BOLT - hex

2шт.

23

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

4шт.

24

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

4шт.

25

TX440147

PIN

- grate pivot

1шт.

26

TX440124

GRATING

- remote seat

1шт.

27

TX440148

PIN

- grate guide

1шт.

28

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

29

NSS

NOT SOLD SEPARAT

WASHER - flat

2шт.

30

TX440173

PIN

- seat console

1шт.

31

TX440145

PIN

- seat

2шт.

32

TX400173

SPRING

- return

3шт.
