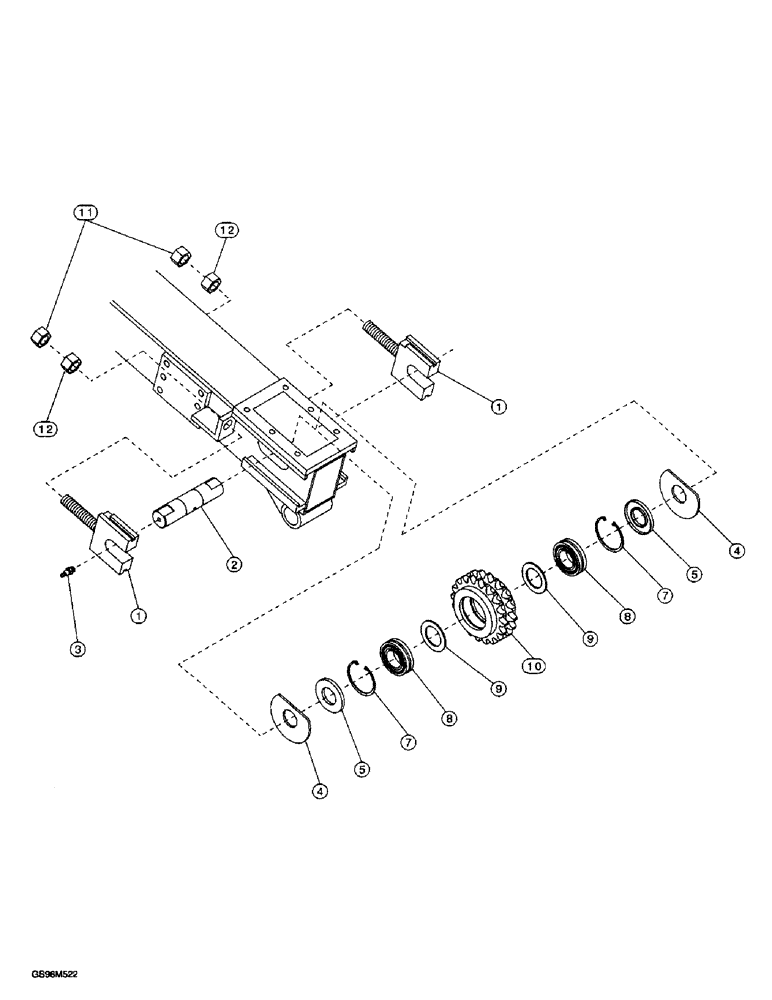

Запчасти Case 200TX (9-16) - THRUST CHAIN TENSIONER

1

TX440341

TENSIONER

- thrust chain

2шт.

If looking for a closed tensioner, it is no longer avail and must order the open style

1шт.

2

TX440338

SHAFT

- idler sprocket

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 inch NPT

1шт.

4

TX440339

WASHER

SHIM - 0.188 inch

1шт.

4

TX440340

WASHER

SHIM - 0.125 inch

1шт.

6

TX417796

SEAL

SEAL - grease, internal bearing sprocket

2шт.

7

TX423000

RING, SNAP

RING - retaining, 2 inch internal

2шт.

8

TX422209

SPHERICAL BEARING

BEARING - ball

2шт.

9

495-81279

WASHER,1.81" ID x 2.75" OD x 0.13" Thk

- spacer

2шт.

10

TX440337

SPROCKET ASSY.

SPROCKET - idler

1шт.

11

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

2шт.

12

425-1416

JAM NUT,Jam, 1"-8, G5

- jam, 1 inch NC

2шт.
