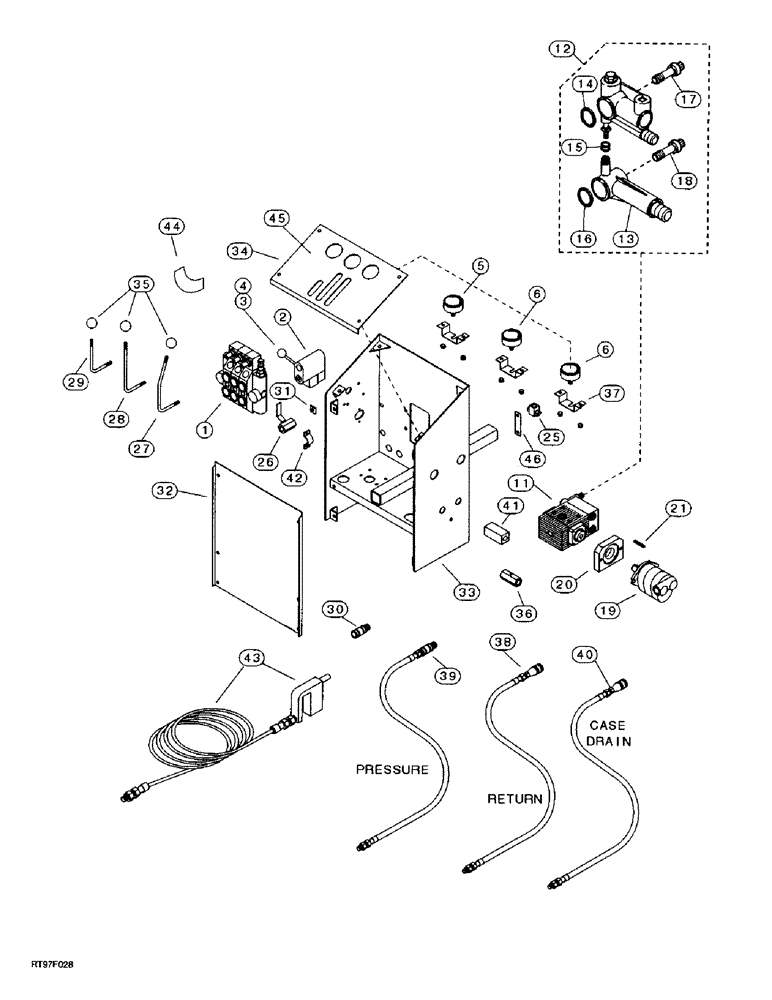

Запчасти Case 150CM (9-14) - CONTROL CONSOLE - 150CM

1

01512012

VALVE

ASSEMBLY - control, direction

1шт.

10068311D

VALVE

INLET - control valve

1шт.

10068311A

VALVE

SECTION - control valve, thrust and rotate

2шт.

15068311C

VALVE

SECTION - control valve, drill fluid

1шт.

TX440152

DETENT

- stop

1шт.

15068311A

VALVE

OUTLET - control valve

1шт.

15068311B

KIT

- tie bolt

1шт.

2

02301011

CONTROL

VALVE - flow control

1шт.

3

30604618

KNOB

- control lever

1шт.

4

30091218

LEVER

- flow control

1шт.

5

00031411

GAUGE

- pressure, 3000 PSI

1шт.

6

00031511

GAUGE

- pressure, 5000 PSI

2шт.

01530042

PUMP

ASSEMBLY - water, Includes: Ref. 11 - 21

1шт.

11

11701311

PUMP

- water, Includes: Ref. 12 - 18

1шт.

12

30490011

VALVE

UNLOADER ASSEMBLY - water pump, Includes: Ref. 13 - 16

1шт.

13

1265890

PROTECTION

HOUSING - manifold

1шт.

00490111

KIT

- repair, unloader, Includes: Ref. 14 - 16

1шт.

14

720030

O-RING

- water pump

1шт.

15

770140

O-RING

- housing

2шт.

16

1180140

O-RING

- water pump

1шт.

17

01260580

BOLT

- special, unloader, 3/8 inch

1шт.

18

01260550

BOLT

- special, unloader, 1/2 inch

1шт.

19

36001211

LOAD HOOK

MOTOR - hydraulic, water pump

1шт.

36001211C

SEAL

- motor

1шт.

36001211B

RING

- retaining

1шт.

20

10065322

LARGE PLATE

PLATE - adapter

1шт.

21

36001311

KEY

- square

1шт.

OLD STYLE MOTOR HAD 36001311 SQ KEY AND NEW STYLE MOTOR HAS 317986A1 WOODRUFF KEY PER M LISCO MEMO

1шт.

25

30012211

VALVE

- shuttle

1шт.

26

01400111

BALANCE VALVE

VALVE - ball, 1/2 inch PT

1шт.

27

NSS

NOT SOLD SEPARAT

LEVER - rotation control

1шт.

28

NSS

NOT SOLD SEPARAT

LEVER - thrust control

1шт.

29

NSS

NOT SOLD SEPARAT

LEVER - drill fluid control

1шт.

30

M0122011

VALVE, CHECK

VALVE - check

1шт.

31

00948518

NUT

- speed, 1/8 inch NC

8шт.

32

30063354

CONSOLE

PANEL - console, front

1шт.

33

10573354

BODY

CONSOLE - control

1шт.

34

10583354

PANEL

- console, top

1шт.

35

30604619

KNOB

- control lever

3шт.

36

00375011

VALVE, CHECK

VALVE - check

1шт.

37

13271112

BRACKET

- gauge mounting

3шт.

38

30075111

COUPLING

COUPLER - self sealing, female, return

1шт.

39

30075211

NIPPLE, LUBE

COUPLER - self sealing, male, pressure

1шт.

40

10020211

COUPLING

COUPLER ASSEMBLY - self sealing, male and female half, case drain

1шт.

41

10075012

VALVE, CHECK

VALVE - check

1шт.

42

15011032

BRACKET

- mounting, ball valve

1шт.

43

10029318

WASHER

WAND ASSEMBLY - pressure washer

1шт.

259311

HEATING ELEMENT

WAND - pressure washer

1шт.

01321311

NOZZLE INJECTION

NOZZLE - wand, 1/8 inch

1шт.

45

550314

ARM

DECAL - control console, 150CM

1шт.

44

30051014

DECAL

- drill fluid

1шт.

46

30026121

CLAMP

- mounting

1шт.
