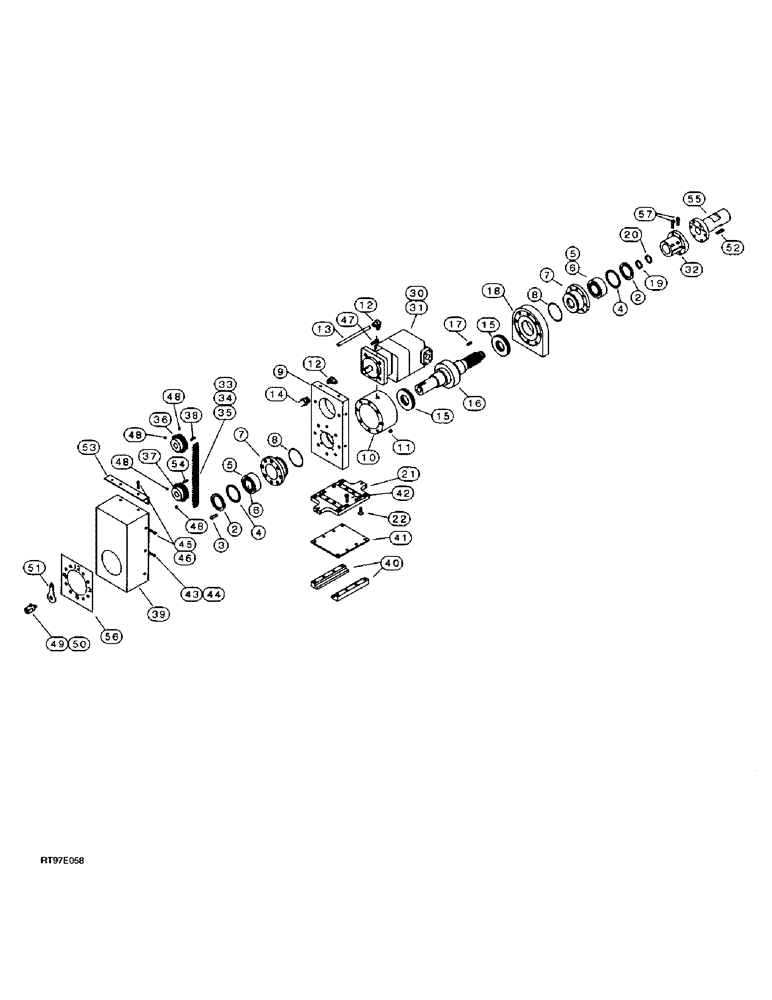

Запчасти Case 150CM (9-08) - DRILL DRIVE - 150CM

01510042

DRIVE ASSY.

DRIVE ASSEMBLY - drill, Includes: Ref. 2 - 57

1шт.

TX210043

HEAD ASSY.

HEAD ASSEMBLY - drill drive, Includes: Ref. 2 - 22

1шт.

2

47038017

SEAL

- cap

2шт.

3

NSS

NOT SOLD SEPARAT

BOLT - hex socket, 3/8 NC x 2-1/4 inch, grade 8

16шт.

4

10023116

RING, SNAP

RING - retaining

2шт.

5

28372016

BEARING, NEEDLE

BEARING - needle

2шт.

6

24282016

RACE

- needle bearing

2шт.

7

10010222

HEAD ASSY.

CAP - bearing

2шт.

8

10023817

O-RING

- bearing cap

2шт.

9

10010722

PLATE

- end, drill head

1шт.

Up until 1996 the dimensions for this plate were 12.875 x 7 x 1(print rev new) for the model 100. After 1996 the part was modified to lift the head .75" for the model 150. Bormor never changed the part number. The new dimensions are 13.625 x 7 x 1 (print rev a). The current quote listed below is for print revision a. If the new plate is used the dealer will have to replace the low plate as well.

1шт.

10

10010522

HOUSING

- drill drive

1шт.

11

00070011

PLUG

- 3/8 inch pipe tape

1шт.

12

00080011

FITTING

- hose

2шт.

13

90011

WINDSHIELD

HOSE - breather

1шт.

14

00100011

BREATHER

- housing

1шт.

15

10018916

BEARING

- thrust

2шт.

16

10010622

SHAFT

- drill drive

1шт.

17

10011622

KEY

- drive shaft

1шт.

18

10010322

PLATE

- end, drill head

1шт.

19

10011522

BACK-UP RING

RING - back-up

1шт.

20

10011022

O-RING

- drive shaft

1шт.

21

10010932

PLATE

- base, drill head

1шт.

22

NSS

NOT SOLD SEPARAT

SCREW - flat head, 1/2 NC x 1-3/4 inch

8шт.

30

10412211

MOTOR, HYDRAULIC

MOTOR - hydraulic, drill drive, single speed

1шт.

30

10420111

MOTOR, HYDRAULIC

MOTOR - hydraulic, drill drive, two speed

1шт.

31

16125811

KIT

- seal, drill drive motor

1шт.

32

10011722

ADAPTER

- spindle

1шт.

33

01550212

CHAIN (AG)

CHAIN - double roller, Includes: Ref. 34 and 35

1шт.

34

10150212

LINK

- chain connecting

1шт.

35

10250212

LINK

- chain connecting, offset

1шт.

36

10502512

SPROCKET ASSY.

SPROCKET - drive

1шт.

37

10505012

SPROCKET ASSY.

SPROCKET - driven

1шт.

38

10502522

KEY

- square, 5/16 x 5/16 x 1-1/4 inch

1шт.

39

10010832

COVER

GUARD - drill drive

1шт.

40

10011122

STRIP

SLIDE - drill head

2шт.

41

10011422

LARGE PLATE

PLATE - wear, drill head slide

1шт.

42

NSS

NOT SOLD SEPARAT

BOLT - hex socket, 3/8 NC x 1-1/2 inch, grade 8

8шт.

43

NSS

NOT SOLD SEPARAT

BOLT - hex, 1/2 NC x 3/4 inch

4шт.

44

NSS

NOT SOLD SEPARAT

WASHER - lock, 1/2 inch

4шт.

45

NSS

NOT SOLD SEPARAT

BOLT - hex, 5/16 NC x 1/2 inch

4шт.

46

NSS

NOT SOLD SEPARAT

WASHER - lock, 5/16 inch

4шт.

47

NSS

NOT SOLD SEPARAT

BOLT - hex socket, 1/2 NC x 1-1/4 inch, grade 8

4шт.

48

NSS

NOT SOLD SEPARAT

SCREW - set, 3/8 NC x 1/2 inch

4шт.

49

00050011

LINK

SWIVEL - drill drive

1шт.

50

00050011R

KIT

- swivel repair

1шт.

51

10135022

POINTER

- direction

1шт.

52

NSS

NOT SOLD SEPARAT

BOLT - hex socket, 3/8 NC x 1 inch, grade 8

6шт.

53

10180222

BRACKET

- power tube

1шт.

54

10502622

KEY

- square, 5/16 x 5/16 x 2 inch

1шт.

55

10011822

MANDREL

ADAPTER - drill rod

1шт.

56

10050214

DECAL

- clock face

1шт.

57

NSS

NOT SOLD SEPARAT

BOLT - hex socket, 5/16 NC x 1 inch, grade 8

2шт.
