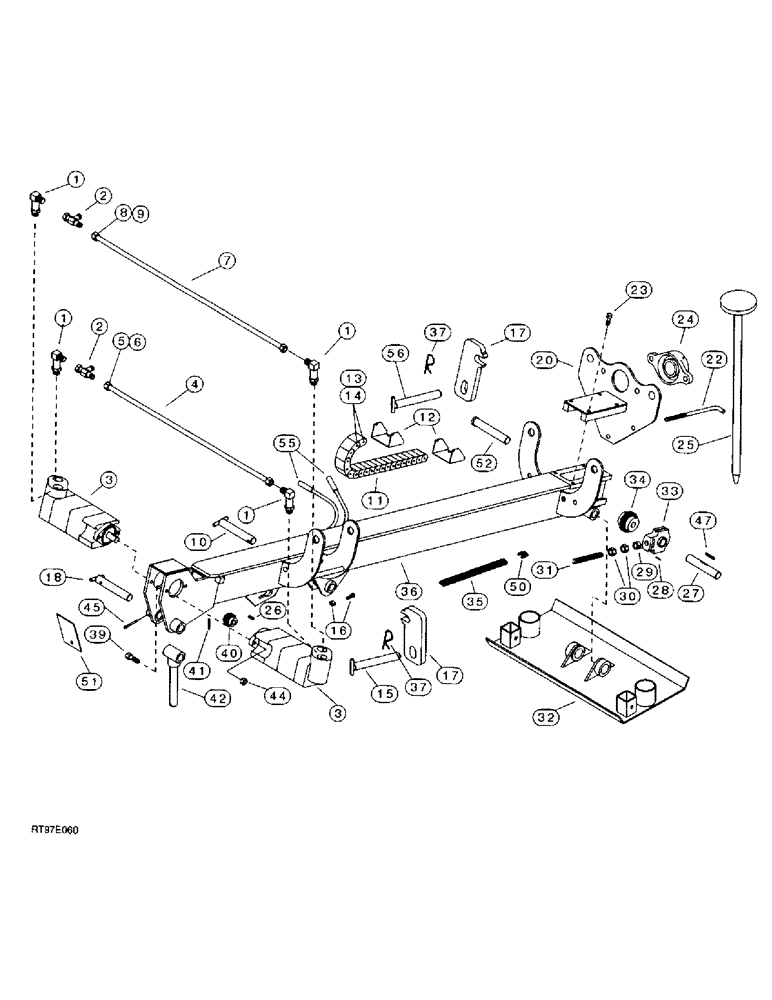

Запчасти Case 150CM (9-02) - BOOM - 150CM

1

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel

2шт.

2

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x swivel

2шт.

3

11041027

MOTOR, HYDRAULIC

MOTOR - hydraulic, thrust drive

2шт.

4

CK0103

TUBE ASSY.

TUBE - thrust motor, 1/2 inch ID, Includes: Ref. 5 and 6

1шт.

CK0103 - THIS IS A PRIME PART, NOT A COMPLETE ASSY. DO NOT ORDER.

1шт.

5

FF9605-08

SLEEVE

- tapered

2шт.

FF9605-08 - THIS IS A PRIME PART, NOT A COMPLETE ASSY. DO NOT ORDER

1шт.

6

FC2875-08

NUT

- tube

2шт.

7

CK0103

TUBE ASSY.

TUBE - thrust motor, 1/2 inch ID, Includes: Ref. 8 and 9

1шт.

8

FF9605-08

SLEEVE

- tapered

2шт.

9

FC2875-08

NUT

- tube

2шт.

10

10066322

PIN

- attaching

1шт.

01501290

TUBE

ASSEMBLY - power, Includes: Ref. 11 - 14

1шт.

11

51290011

TUBE

- power, 12 inch

1шт.

12

51290111

BRACKET

- power tube

2шт.

13

TX401291

WASHER

- nylatron, 1/8 x 3/4 x 7/32 inch

1шт.

14

93121330

SCREW,#8 - 32 x 3", Aluminum

- special

1шт.

15

01200022

PIN

- attaching

1шт.

FC2875-08 - THIS IS A PRIME PART, NOT A COMPLETE ASSY. DO NOT ORDER

1шт.

16

NSS

NOT SOLD SEPARAT

BOLT - hex

1шт.

17

01210022

OPEN END WRENCH

WRENCH - locking

2шт.

18

01200022

PIN

- attaching

1шт.

20

01520154

BRACKET

- rod guide

1шт.

22

30581118

STOP

- wrench

1шт.

23

NSS

NOT SOLD SEPARAT

BOLT - hex

4шт.

24

30647822

GUIDE

BEARING - rod guide, 2-1/8 inch

1шт.

CONFIRMED WITH SUPPLIER THAT ID ON THIS PART IS 2.25". NOT 2.125"

1шт.

25

30199032

PIN

- hold down

4шт.

26

10041222

KEY

- square, 4-1/2 inch

1шт.

27

10063422

SHAFT

- idler

1шт.

28

10012522

PIN

- roll

1шт.

29

10020018

NUT

- hex, with hole

2шт.

30

NSS

NOT SOLD SEPARAT

NUT - hex, 3/4 inch NC

4шт.

31

10011322

ROD

- threaded

2шт.

32

30060052

LARGE PLATE

PLATE - hold down

1шт.

33

10025016

BEARING

- take-up

2шт.

34

10602512

SPROCKET ASSY.

SPROCKET - idler

1шт.

35

01560212

CHAIN (AG)

CHAIN - roller

1шт.

36

01511232

BOOM

- thrust

1шт.

37

NSS

NOT SOLD SEPARAT

PIN - hair

2шт.

39

NSS

NOT SOLD SEPARAT

BOLT - hex

4шт.

40

01561212

SPROCKET ASSY.

SPROCKET - drive, thrust

1шт.

41

01561312

PIN

- roll

1шт.

42

30011222

PIN

- pivot

1шт.

44

NSS

NOT SOLD SEPARAT

NUT - hex, lock, 1/2 inch NC

4шт.

45

NSS

NOT SOLD SEPARAT

BOLT - hex

1шт.

47

30020022

KEY

- square, 3/8 x 3/8 x 2-1/2 inch

1шт.

50

50110112

LINK

- chain connecting

2шт.

51

10546522

COVER

- chain

1шт.

52

30120122

PIN

- hold down

1шт.

55

10060743

CABLE

PIGTAILS - grounding mat

2шт.

56

30120022

PIN

- attaching

1шт.
