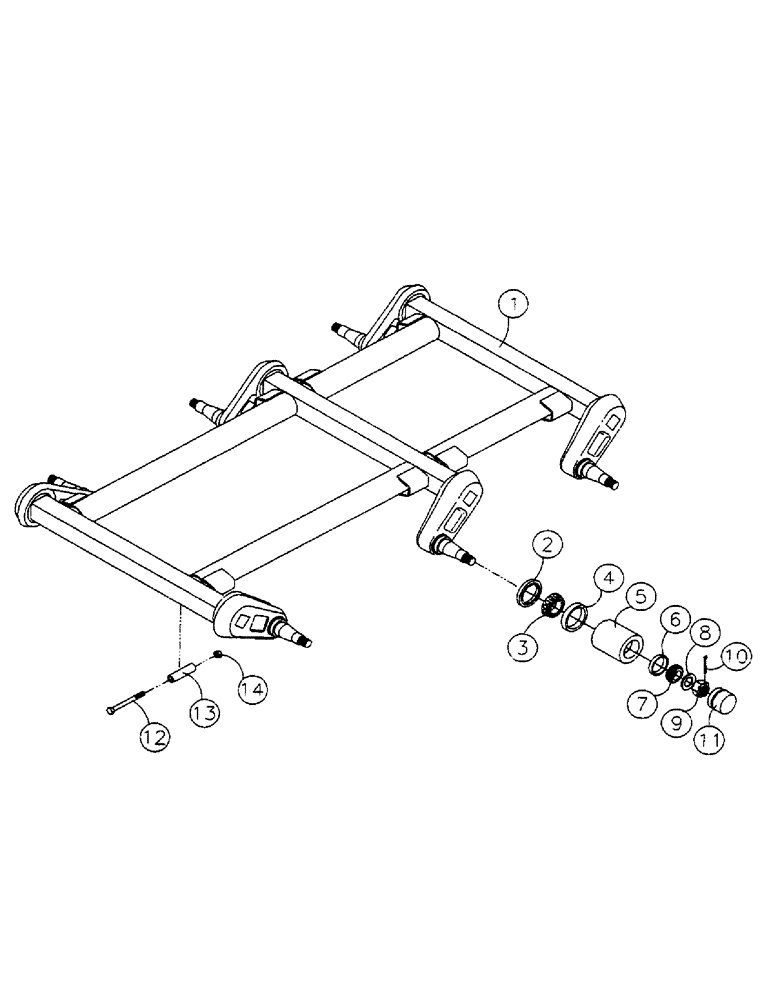

Запчасти Case 1500TX (9-014) - AXLE ASSEMBLY

TX041012

FRAME

Under Carriage, Complete

1шт.

1

0302-065

Wldmt, frame, suspension

1шт.

2

0301-574

Seal

6шт.

3

0301-570

Bearing, cone, 1.75

6шт.

4

0301-571

Cup, bearing

6шт.

5

0301-423

Hub, frame

2шт.

6

0301-573

Cup, bearing

6шт.

7

0301-572

Bearing, cone, 1.25

6шт.

8

0301-576

Washer, spindle

6шт.

9

0301-575

Nut, castle, 1.0-14 UNC

6шт.

10

0301-577

Pin, cotter, 5/32 x 1-3/4

6шт.

11

0301-578

Cap, dust (24400) 2.448

6шт.

12

8002-415

Capscrew, HH, 1/2-13 UNC x 4.5, Gd 5, ZN

6шт.

13

0302-433

Spacer, mtg, suspension

6шт.

14

8041-606

Nut, hex, nylock, 1/12-13 UNC, thin, ZN

6шт.
