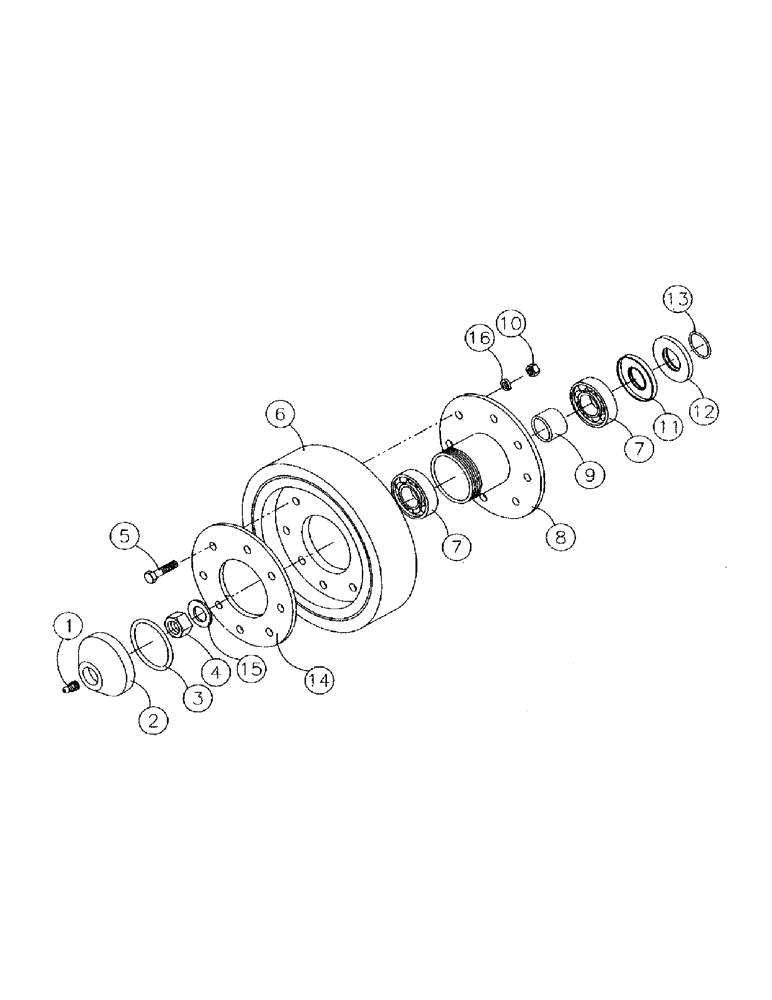

Запчасти Case 1500TX (9-012) - WHEEL

1

0300-946

Fitting, Grease, 1/8 NPT

1шт.

2

0302-791

Cap, Wheel, Machined

1шт.

3

0302-595

O-ring, 2.125 ID x 2.5 OD x .187

1шт.

4

8041-786

Nut, hex, nylock, 3/4-10 UNC, thin, ZN

1шт.

5

8004-225

Capscrew, HH, 3/8-24 UNF x 1.5, Gd 5, ZN

8шт.

6

0302-566

Wheel, uhmw, 10"

1шт.

7

0302-591

Bearing, ball, 6205 w/o Seals

2шт.

8

0302-590

Wldmt, hub, wheel, 10"

1шт.

9

0302-593

Spacer, bearing, wheel

1шт.

10

8040-516

Nut, hex, nylock, 3/8-24 UHF, ZN

8шт.

11

0302-596

Seal, 1.25 Bore x 2.066 OD x .25

1шт.

12

0302-551

Shield, seal, wheel

1шт.

13

0302-592

O-ring, 1.25 x 1.50 x .125

1шт.

14

0302-567

Plate, mtg, wheel, 10"

1шт.

15

8050-440

Washer, wrought, 3/4, sae, ZN

1шт.

16

8051-272

Washer, spring Lock, 3/8, ZN

8шт.
