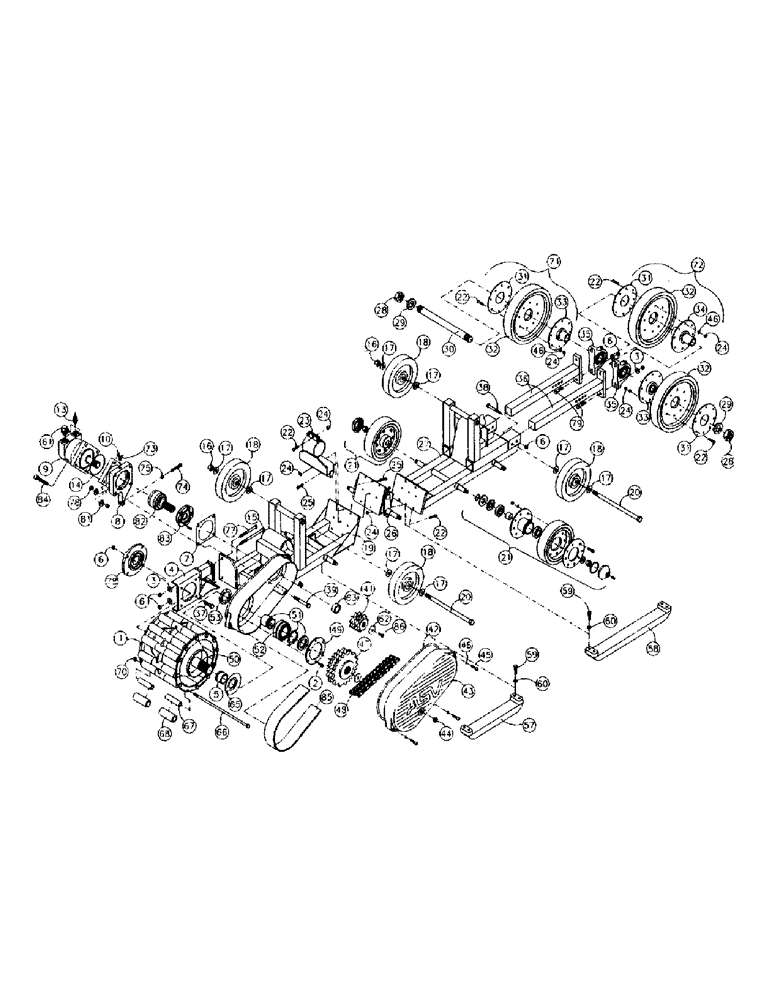

Запчасти Case 1500TX (9-008) - SUSPENSION, LEFT SIDE

1

0302-915

Ring, Sprocket, Formed

2шт.

2

8012-222

Capscrew, HH, 3/8-16 UNC x 1.0, Nylock

7шт.

3

8050-347

Washer, Wrought, 1/2, STD, ZN

6шт.

4

0302-849

Wldmt, Mount, Bearing

1шт.

5

0302-836

Sleeve, Seal

1шт.

6

8040-606

Nut, Hex, Nylock, 1/2-13 UNC, ZN

12шт.

7

0302-711

Gasket, Motor, Danfoss

1шт.

8

0303-119

Weldment, Pack, Bearing, LH

1шт.

9

0303-117

Motor, Vis-30, Eaton

1шт.

10

0302-025

Adapter, 4MJ-4MP

1шт.

13

0300-290

Adapter, O-Ring to Flare (12-12)

1шт.

14

0302-752

O-Ring, Buna, .100 x 5.0

1шт.

15

8002-420

Capscrew, HH, 1/2-13 UNC x 7.50, GD 5, ZN

1шт.

16

8040-786

Nut, Hex, Nylock, 3/4-10 UNC x 18.0, GD 5, ZN

2шт.

17

8050-436

Washer, Wrought, 3/4, STD, Zn

8шт.

18

0300-220

Wheel, 10"

4шт.

19

0302-844

Wldmt, Carriage, Front, LH

1шт.

20

8002-694

Capscrew, HH, 3/4-10 UNC x 18.0, GD 5, ZN

2шт.

21

0302-589

Assy, Wheel, 10"

10шт.

22

8004-226

Capscrew, HH, 3/8-24 UNF x 1.75, GD 5, ZN

30шт.

23

0302-858

Wldmt, Clamp, Ctr, LH

1шт.

24

8040-516

Nut, Hex, Nylock, 3/8-24 UNF, ZN

123шт.

25

8004-225

Capscrew, HH, 3/8-24 UNF x 1.5, GD5, ZN

93шт.

26

0302-888

Wldmt, Equalizer

1шт.

27

0302-419

Wldmt, Carriage, Rear, LH

1шт.

28

8041-800

Nut, Hex, Nylock, 1.5-12 UNC, Thin, ZN

2шт.

29

8051-500

Washer, Spring Lock, 1 1/2, ZN

2шт.

30

0302-456

Axle, Tensioner

1шт.

31

0302-036

Plate, Hub, Center

3шт.

32

0302-054

Wheel, 14"

3шт.

33

0302-499

Wldmt, Hub, Outside

2шт.

34

0302-452

Wldmt, Hub, Center

1шт.

35

0303-023

Assy, Bearing, 1.5

2шт.

36

0302-467

Wldmt, Tensioner

2шт.

37

8002-407

Capscrew, HH, 1/2-13 UNC x 2.0, GD 5, ZN

4шт.

38

8002-413

Capscrew, HH, 1/2-13 UNC x 3.5, GD 5, ZN

2шт.

39

8004-499

Capscrew, HH, 9/16-18 UNC x 2.50, GD 5, ZN

4шт.

41

TX603622A

Gearbox Drive

1шт.

42

0302-690

Seal, Cord, Chaincase

1шт.

43

0302-610

Cover, Chain, Mach, LS

1шт.

44

1069-030

Pipe Plug, SOC HD, 3/4" NPT

1шт.

45

8005-677

Capscrew, SOC HD, 3/8-16 UNHC x 2.0, ZN

3шт.

46

8051-272

Washer, Spring Lock, 3/8, ZN

128шт.

47

TX601222A

Sprocket, Under Carriage

1шт.

48

50110012

CHAIN (AG)

Chain 60-2 Roller

1шт.

50110112

LINK

Connector 60-2

1шт.

50110212

OFFSET LINK

Link Offset 60-2

1шт.

49

0302-824

Ring, Retainer, Bearing

1шт.

50

0302-897

Wldmt, Sprocket, Coned

1шт.

51

0302-886

Adapter, Tapered, 2.0"

1шт.

52

0302-885

Bearing, Roller, Spher

1шт.

53

0302-883

Seal, 2.375 x 3.256 x 438V

1шт.

57

0302-695

Rail, Short, Machined

1шт.

58

0302-696

Rail, Long, Machined

1шт.

59

8002-404

Capscrew, HH, 1/2-13 UNC x 1.25, GD 5, ZN

8шт.

60

8051-332

Washer, Spring Lock, 1/2, ZN

8шт.

61

0302-642

Adapter, O-Ring to Flare 90 (12-12)

1шт.

62

0300-980

Washer, 1.447 x .406 x .125

2шт.

63

0303-142

Spacer, Sprocket

1шт.

65

0302-906

Seal, Excluder

1шт.

66

0302-374

Capscrew, HH, 1/2-13 UNC x 12.438

12шт.

67

0302-635

Tooth, Drive, Sprocket

24шт.

68

0302-765

Sleeve, Outer, Tooth, Sprocket

24шт.

70

0301-644

Nut, Top Lock, STL, 1/2-13 UNC, ZN

12шт.

71

0302-500

Assy, Wheel, Outside, 14"

2шт.

72

0302-463

Assy, Wheel, Center, 14"

1шт.

73

0302-771

Adapter, Pipe to Flare 90 (2-4)

1шт.

74

0302-914

Capscrew, HH, 1/2-13 UNC x 2.25, FLTHD, ZN

1шт.

75

8042-602

Nut, Hex, 1/2-13 UNC, ZN

1шт.

76

8040-696

Nut, Hex, Nylock, 9/16-18 UNF, ZN

8шт.

77

8002-417

Capscrew, HH, 1/2-13 UNC x 5.50, GD 5, ZN

1шт.

78

0302-855

Bearing, Flanged, Piloted, 2"

1шт.

79

8002-409

Capscrew, HH, 1/2-13 UNC x 2.5, GD 5, ZN

4шт.

81

0303-171

Washer, Trimmed

8шт.

82

0303-120

Pack, Bearing

1шт.

83

0303-121

Kit, Retainer

1шт.

84

8006-771

Capscrew, SOC, HD, 9/16-18 UNF x 3.0

4шт.

85

0302-904

Slide, Plastic

1шт.

86

8002-225

Capscrew, HH, 3/8-16 UNC x 1.5, GR 5, ZN

1шт.
