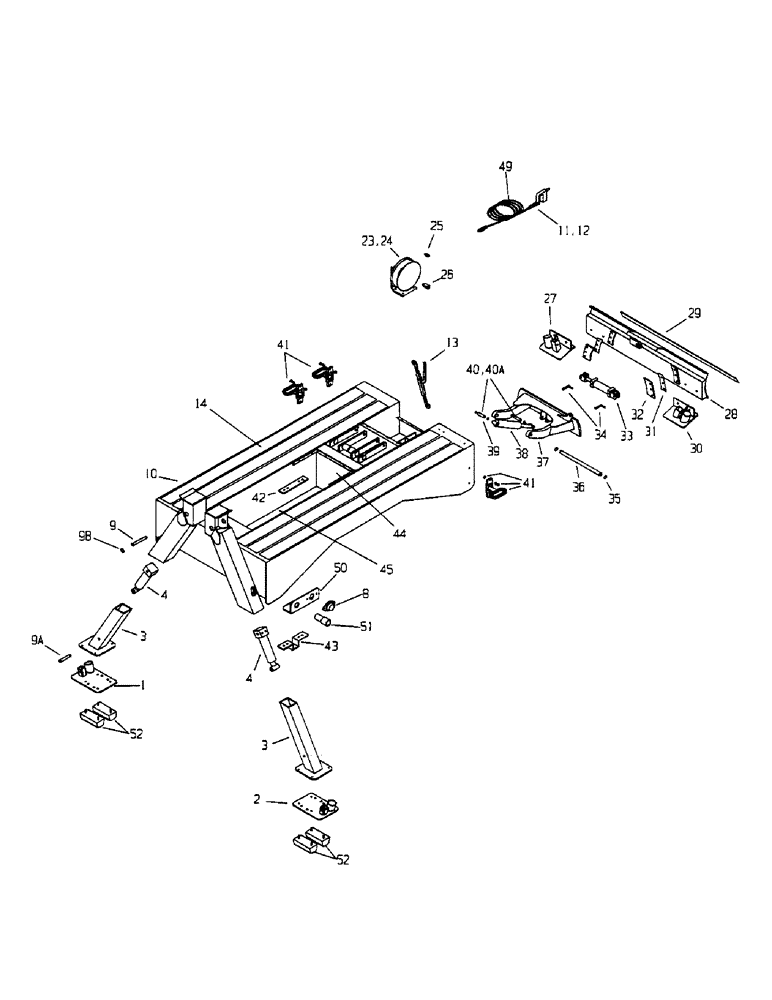

Запчасти Case 1500TX (9-002) - FRAME WELDMENT AND STABILIZERS, ETC.

1

TX120143

ANCHOR

Stab/Auger Holddown LH

1шт.

2

TX120144

ANCHOR

Stab/Auger Holddown RH

1шт.

3

TX014052

Stab Leg

1шт.

4

TX054012

CYLINDER

Stab Cylinder

1шт.

8

02360313

PLUG

6-way

1шт.

9

TX087012

PIN

Stab Pin, Upper

2шт.

9a

TX087112

PIN

Stab Pin, Lower

2шт.

9b

01539812

RING, SNAP

Snap Ring

4шт.

10

TX042032

Bed Fabrication

1шт.

11

10010311

COUPLING

Coupler, 3/8 Brass

1шт.

12

10010312

NIPPLE, LUBE

Nipple, 3/8 Brass

1шт.

13

15283215

BINDER

Load Binder, 1/2"

1шт.

23

2300050011

Swivel High Speed

1шт.

24

02230011

REEL

Hose Reel

1шт.

25

60207211

Hose Reel Bumper

1шт.

26

00050011

LINK

Swivel

1шт.

27

TX850132

BLADE

/Auger Holddown LH

1шт.

28

H673758

BLADE

Dozer

1шт.

29

Blade, Cutting Edge

1шт.

30

TX850232

BLADE

Auger Holddown RH

1шт.

31

Blade Shims

1шт.

32

Blade Mount Bracket

1шт.

33

H673747

CYLINDER

Tilt Cylinder

1шт.

34

439-11648

HEADED PIN,1" x 3", G2

Tilt Cylinder Pins

2шт.

34a

136-162

HAIR PIN COTTER,Int, 1/2" x .250"

Pin, Hair Cotter

2шт.

35

D25279

SNAP RING,M35, Int

Large Pin Retaining Ring

2шт.

36

103993A1

PIN

Large Blade Pin

1шт.

37

103984A1

ARM

Blade Mount

1шт.

38

H674312

CYLINDER

Lift Cylinder

1шт.

39

H437684

PIN

Lift Cylinder Pin

1шт.

40

H437684

PIN

Lift Cylinder

2шт.

40a

H753244

SNAP RING,#98, Ext

Ring, Snap, #98, Ext

4шт.

41

00100215

STEP

Folding Step

3шт.

42

TX034628

BRACKET

Flat

1шт.

43

TX034728

BRACKET

U

1шт.

44

TX151832

PANEL

Tool Box Front Wall

1шт.

45

TX151932

PANEL

False Floor

1шт.

49

00259311

WASHER

Pressure Washer Gun

1шт.

50

Bracket, Quick Coupler

1шт.

51

00410511

COUPLING

Quick Coupler, SS

1шт.

52

R31222

SHOE

Pad, Stabilizer

4шт.
