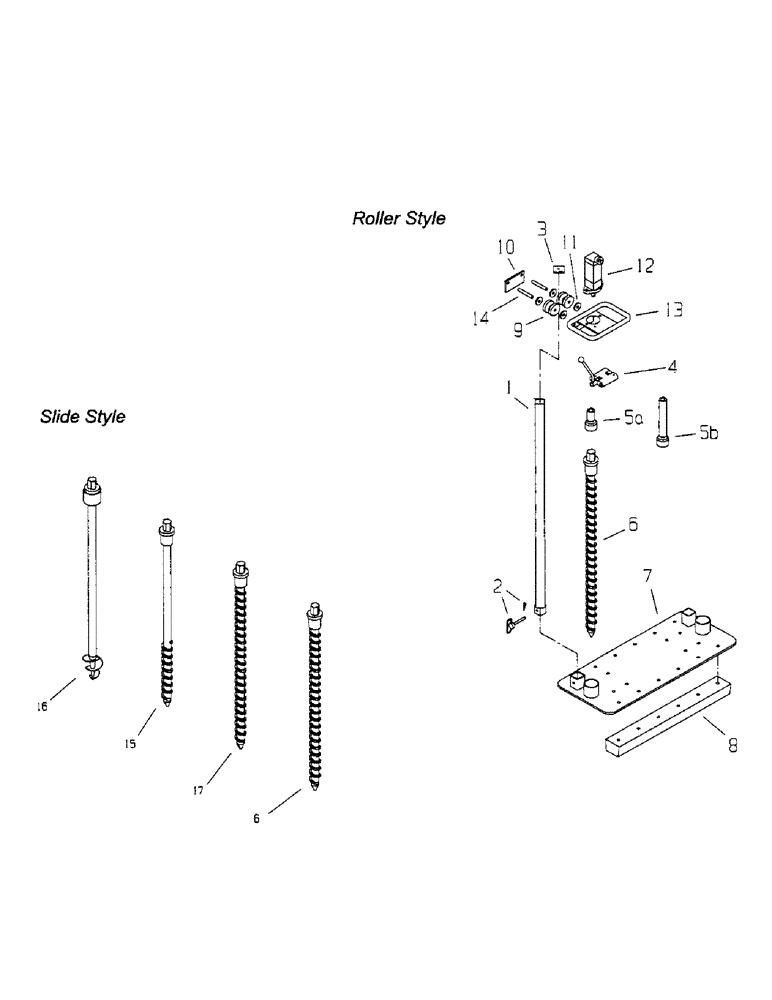

Запчасти Case 1500TX (9-036[1]) - POWER HAND AUGERS

1

BAR, guide

1шт.

2

PIN, auger with flighting

1шт.

3

PLATE, END, guide bar

1шт.

4

85030911

VALVE, CONTROL

VALVE

1шт.

4

85030911

VALVE, CONTROL

VALVE

1шт.

5a

85036811

SOCKET/RECEPTACLE

SOCKET, short

1шт.

5b

85017552

EXTENSION

SOCKET, long

1шт.

6

85036052

PIN

with flighting

1шт.

7

00060652

PLATE

HOLD DOWN PLATE

1шт.

8

05287914

BUMPER

S

1шт.

9

ROLLER, guide bar

1шт.

10

FRAME, ROLLER

1шт.

11

BAR, GUIDE

1шт.

12

MOTOR

1шт.

13

FRAME, ROLLER

1шт.

15

PIN, auger with 13 inch flighting

1шт.

16

PIN, auger with cast flighting, sand point (used with stabilizer pad with 4-1/2 inch auger hole)

1шт.

17

PIN, auger with flighting

1шт.
