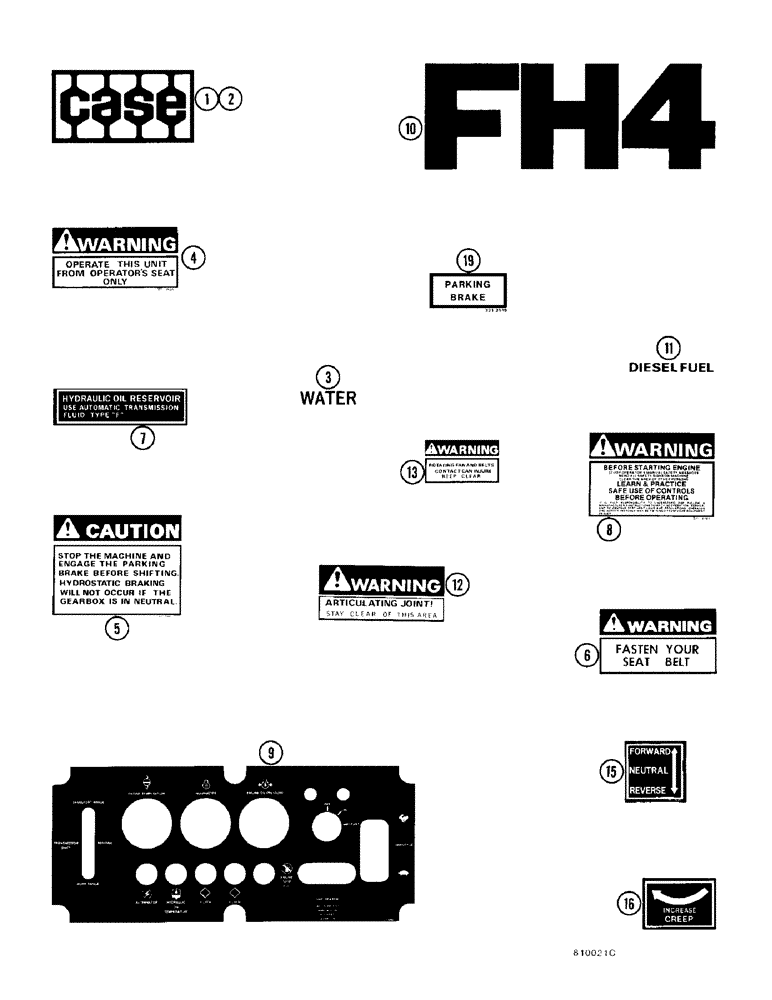

Запчасти Case FH4 (4-02) - DECALS - BASIC UNIT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

321-4739

EMBLEM

MEDALLION - CASE

1шт.

2

131-431

PUSH-ON NUT,Self, Threading, 1/4"

PALNUT

2шт.

3

321-719

DECAL

- water

1шт.

4

321-3905

DECAL

- warning, operator's seat

1шт.

5

321-5501

DECAL

- caution, gearbox

1шт.

6

321-3217

DECAL

- warning, seat belt

1шт.

7

H277723

DECAL

- oil type

1шт.

8

321-3705

DECAL

- warning, before starting engine

1шт.

9

321-5090

DECAL

- instrument panel

1шт.

Used on 1.8 litre engine only

1шт.

10

H415570

DECAL

- FH4 logo

2шт.

11

321-230

DECAL

- diesel fuel

2шт.

12

321-3218

DECAL

- warning, articulating joint

3шт.

13

321-3596

DECAL

- warning, fan

2шт.

14

H418020

DECAL

- parking brake release (Not shown)

1шт.

15

321-4443

DECAL

- forward/reverse shift lever

1шт.

16

321-2989

DECAL

- creep control

1шт.

17

H416396

DECAL

- throttle, engine stop, pre-heater (Not shown)

1шт.

Used on 2.1 litre engine only.

1шт.

18

H416388

DECAL

- ignition, pre-heat indicator, transmission shift (Not shown)

1шт.

Used on 2.1 litre engine only.

1шт.

19

321-5219

DECAL - parking brake

1шт.
