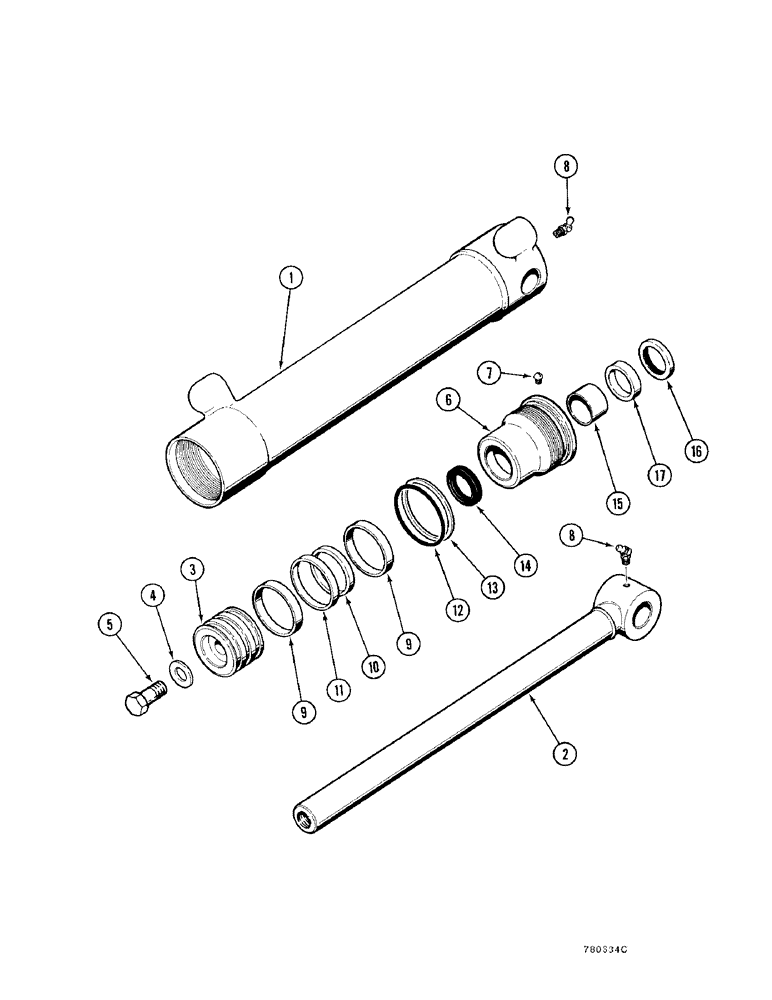

Запчасти Case FH4 (3-28) - BACKHOE BOOM, DIPPER, BUCKET, STABILIZER CYLINDER ASSEMBLY (84) - BOOMS, DIPPERS & BUCKETS

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

ASSEMBLY - boom, dipper (D-100), bucket, stabilizer, Includes: Refs. 1-17

5шт.

1

G100937

TUBE,76.2 mm DIA x 550.9 mm L

BARREL

1шт.

2

G101357

ROD

- piston

1шт.

3

G100441

PISTON

1шт.

4

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special, Includes: Ref. 5

1шт.

5

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

6

G35218

GLAND

Includes: Ref. 7

1шт.

7

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - NC self-tapping (#8 x 1/4)

1шт.

8

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease

2шт.

G102404

SEAL

KIT - seal repair

1шт.

G105548

KIT

seal repair, Includes: Refs. 9-16

1шт.

9

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear

2шт.

Included with Ref. 3.

1шт.

10

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Included with Ref. 3.

1шт.

11

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING - piston

1шт.

Included with Ref. 3.

1шт.

12

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Included with Ref. 6.

1шт.

13

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

WASHER - backup

1шт.

Included with Ref. 6.

1шт.

14

D36969

CUP

SEAL - rod

1шт.

Included with Ref. 6.

1шт.

15

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

BEARING - Rod

1шт.

Included with Ref. 6.

1шт.

16

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - rod

1шт.

Included with Ref. 6.

1шт.

17

NSS

NOT SOLD SEPARAT

RING - steel

1шт.

G104224

SEAL

buffer

1шт.

G100931

CYLINDER

ASSEMBLY - dipper (D-100), Includes: Refs. 1-16

1шт.

1

G100932

TUBE

BARREL

1шт.

2

G34179

ROD

- piston

1шт.

3

G35263

PISTON

1шт.

4

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special, Another washer used (NOT A SUB) Part S94643, Includes: Ref. 5

1шт.

5

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

6

G35218

GLAND

Includes: Ref. 7

1шт.

7

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - NC self-tapping (#8 x 1/4)

1шт.

8

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease

2шт.

G34656

SEAL

KIT - seal repair

1шт.

G105502

SEAL

KIT seal repair, Includes: Refs. 9-16

1шт.

9

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear

1шт.

Included with Ref. 3.

1шт.

10

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

Included with Ref. 3.

1шт.

11

G32034

RING

1шт.

Included with Ref. 3.

1шт.

12

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Included with Ref. 6.

1шт.

13

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

WASHER - backup

1шт.

Included with Ref. 6.

1шт.

14

D36969

CUP

SEAL - rod

1шт.

Included with Ref. 6.

1шт.

15

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

BEARING - Rod

1шт.

Included with Ref. 6.

1шт.

16

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - rod

1шт.

Included with Ref. 6.

1шт.

G104224

SEAL

buffer

1шт.
