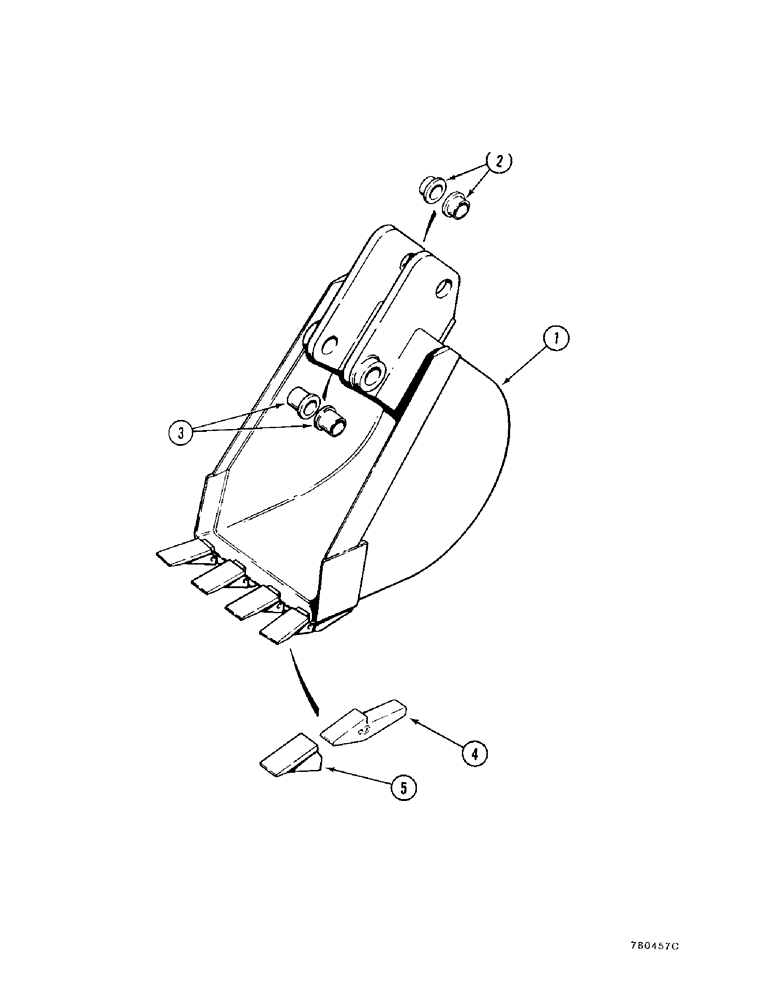

Запчасти Case FH4 (3-12) - BACKHOE BUCKETS - STANDARD (84) - BOOMS, DIPPERS & BUCKETS

1

BUCKET ASSEMBLY - 12", Includes: Refs. 2-5

1шт.

Machinery item - see equipment price list.

1шт.

2

H50823

BUSHING

- cylinder pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- bucket hinge

2шт.

4

H36657

TOOTH

SHANK - tooth

4шт.

5

T41166

TOOTH

POINT - tooth

4шт.

1

BUCKET ASSEMBLY - 16", Includes: Refs. 2-5

1шт.

Machinery item - see equipment price list.

1шт.

2

H50823

BUSHING

- cylinder pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- bucket hinge

2шт.

4

H36657

TOOTH

SHANK - tooth

4шт.

5

T41166

TOOTH

POINT - tooth

4шт.

1

BUCKET ASSEMBLY - 20", Includes: Refs. 2-5

1шт.

Machinery item - see equipment price list.

1шт.

2

H50823

BUSHING

- cylinder pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- bucket hinge

2шт.

4

H36657

TOOTH

SHANK - tooth

4шт.

5

T41166

TOOTH

POINT - tooth

4шт.

1

BUCKET ASSEMBLY - 24", Includes: Refs. 2-5

1шт.

Machinery item - see equipment price list.

1шт.

2

H50823

BUSHING

- cylinder pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- bucket hinge

2шт.

4

H36657

TOOTH

SHANK - tooth

5шт.

5

T41166

TOOTH

POINT - tooth

5шт.

1

BUCKET ASSEMBLY - 36", Includes: Refs. 2-5

1шт.

Machinery item - see equipment price list.

1шт.

2

H50823

BUSHING

- cylinder pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- bucket hinge

2шт.

4

H36657

TOOTH

SHANK - tooth

7шт.

5

T41166

TOOTH

POINT - tooth

7шт.

H51565

EDGE, CUTTING

BLADE 12"

1шт.

H51615

EDGE, CUTTING

BLADE 16"

1шт.

H51664

EDGE, CUTTING

BLADE 20"

1шт.

H50781

HALF BLADE

BLADE 24"

1шт.

H51714

EDGE

BLADE 36"

1шт.
