Запчасти Case FH4 (3-08) - BACKHOE BOOM, DIPPER, BUCKET INSTALLATION (84) - BOOMS, DIPPERS & BUCKETS

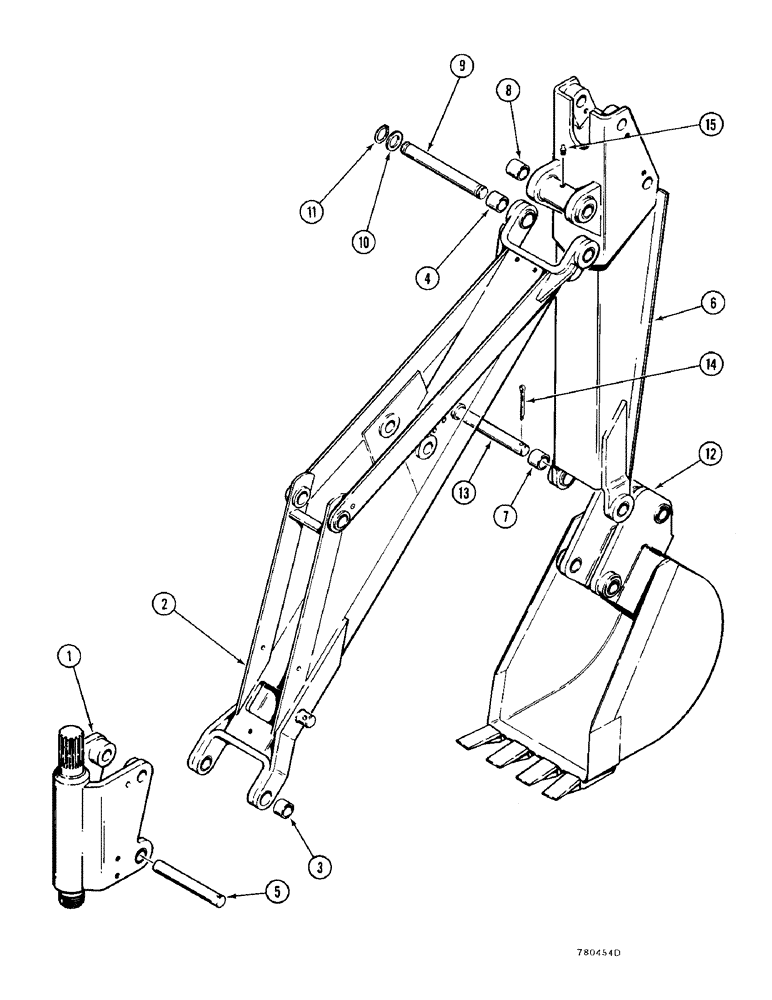

Схема запчастей Case FH4 - (3-08) - BACKHOE BOOM, DIPPER, BUCKET INSTALLATION (84) - BOOMS, DIPPERS & BUCKETS

Артикул

Название

Примечание

Количество

1

KINGPOST - (See figure 3-4)

1шт.

2

H514620

BOOM

ASSEMBLY - D-100

1шт.

H644922

BOOM

ASSEMBLY - D-100XR, Includes: Refs. 3-5

1шт.

3

H50435

BUSHING,28.91mm ID x 36.63mm OD x 25.4mm L

2шт.

4

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

2шт.

5

H50526

PIN

- (1-1/4 x 8-3/16)

1шт.

6

H514687

BOOM

DIPPERSTICK ASSEMBLY

1шт.

Used on D-100

1шт.

H645234

BOOM

DIPPERSTICK ASSEMBLY, Includes: Refs. 7-11

1шт.

Used on D-100XR

1шт.

7

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

2шт.

8

H56192

BUSHING,28.91mm ID x 36.63mm OD x 44.45mm L

2шт.

9

H50658

PIVOT

PIN - (1-1/8 x 9-1/16)

1шт.

10

195-454

WASHER,1.140" x 1 7/8" x .032"

- special (1-1/8)

1шт.

11

F62235

SNAP RING,#112, Ext

RING, Snap, #112, Ext

2шт.

12

BUCKET - (See figures 3-12 & 3-14), Includes: Refs. 13, 14

1шт.

13

H50682

PIN

- clevis (1-1/8 x 8-3/4)

1шт.

14

132-355

COTTER PIN,3/8" x 2"

Pin, Split (Cotter), 3/8" x 2"

1шт.

15

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

Выбрано товаров: 19
