Запчасти Case FH4 (3-07A) - REAR MOUNTED BACKHOE CONTROL INSTALLATION - DUAL LEVER (84) - BOOMS, DIPPERS & BUCKETS

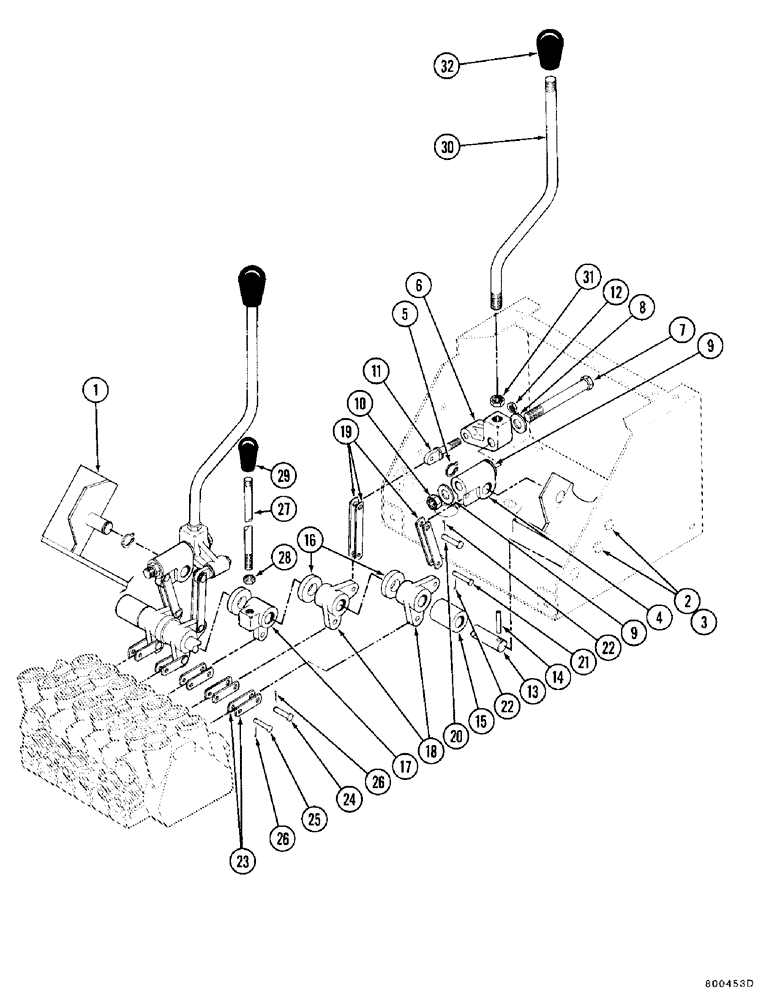

Схема запчастей Case FH4 - (3-07A) - REAR MOUNTED BACKHOE CONTROL INSTALLATION - DUAL LEVER (84) - BOOMS, DIPPERS & BUCKETS

Артикул

Название

Примечание

Количество

H656017

BRACKET

ASSEMBLY - lever, Includes: Refs. 2, 3

1шт.

2

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

3

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC HH C/L (5/16)

4шт.

4

H302851

LEVER

TRUNNION - lever, Includes: Ref. 5

2шт.

5

D32101

SNAP RING,#62, Ext

RING, Snap, #62, Ext

1шт.

6

H302810

PIVOT

- lever, Includes: Refs. 7-10

2шт.

7

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

8

195-533

WASHER,1/2", SAE

- Flat (1/2)

1шт.

9

H256305

WASHER

- friction

2шт.

10

113-1182

NUT - NC HH (1/2)

1шт.

11

H217109

BOLT

BOLT - eye, Includes: Ref. 12

2шт.

12

131-1169

LOCK NUT,5/16"-24, GA

NUT, LOCK, 5/16"-24, GA

1шт.

13

H382317

SHAFT

- lever, Includes: Ref. 14

1шт.

14

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1 1/8", Slotted

1шт.

15

H195099

SPACER

- long

2шт.

16

H191908

SPACER

- short

5шт.

17

H275263

LEVER

CASTING - lever

2шт.

18

H302836

LEVER

BELLCRANK - lever

4шт.

19

H219006

DRAG LINK

LINK, Includes: Refs. 20-22

8шт.

20

H169318

CLEVIS COUPLING,6.35mm OD x 22.62mm L

PIN - clevis (1/4 x 3/4)

4шт.

21

H35279

AXLE PIN,4.72mm OD x 23.76mm L

PIN - clevis (3/16 x 57/64)

4шт.

22

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

8шт.

23

H379057

LINK

- valve, Includes: Refs. 24-26

12шт.

24

H169318

CLEVIS COUPLING,6.35mm OD x 22.62mm L

PIN - clevis (1/4 x 3/4)

6шт.

25

H35279

AXLE PIN,4.72mm OD x 23.76mm L

PIN - clevis (3/16 x 57/64)

6шт.

26

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

12шт.

27

H191924

LEVER

HANDLE - lever

2шт.

28

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

29

A14051

GRIP

KNOB

2шт.

30

H242693

HANDLE

- lever

2шт.

31

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

32

H182113

KNOB

2шт.

Выбрано товаров: 32
