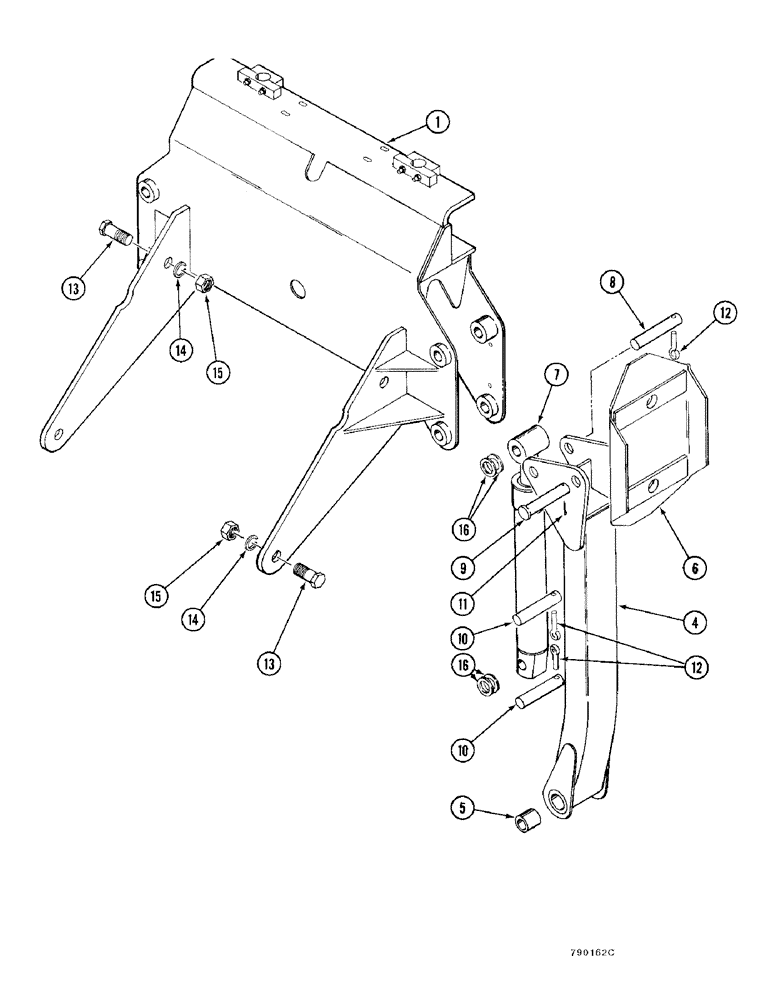

Запчасти Case FH4 (3-02) - BACKHOE FRAME, STABILIZER INSTALLATION (84) - BOOMS, DIPPERS & BUCKETS

1

FRAME - main (See figure 3-4)

1шт.

4

H642975

STABILIZER

ARM - stabilizer, Includes: Ref. 5

2шт.

5

H56192

BUSHING,28.91mm ID x 36.63mm OD x 44.45mm L

- arm

2шт.

6

H533646

LARGE PLATE

PAD - stabilizer

2шт.

7

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

STABILIZER CYLINDER ASSEMBLY - (See figure 3-28)

2шт.

8

H109801

AXLE PIN

PIN -, Serial Range: cylinder-stabilizer

2шт.

9

H79285

PIN

-, Serial Range: stabilizer-pad

2шт.

10

H382234

PIN

- cylinder and stabilizer mounting

4шт.

11

B88476

PIN - cotter (3/8 x 1-1/2)

2шт.

12

H313981

PIN

RETAINER - pin

6шт.

13

113-924

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5, Full Thd

4шт.

14

192-31

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

15

131-1184

LOCK NUT,1"-8, GA

NUT - hex (1 NC)

4шт.

16

195-112

WASHER,1 1/4" x 2 3/4" x .164"

- flat (1-1/8)

1шт.
