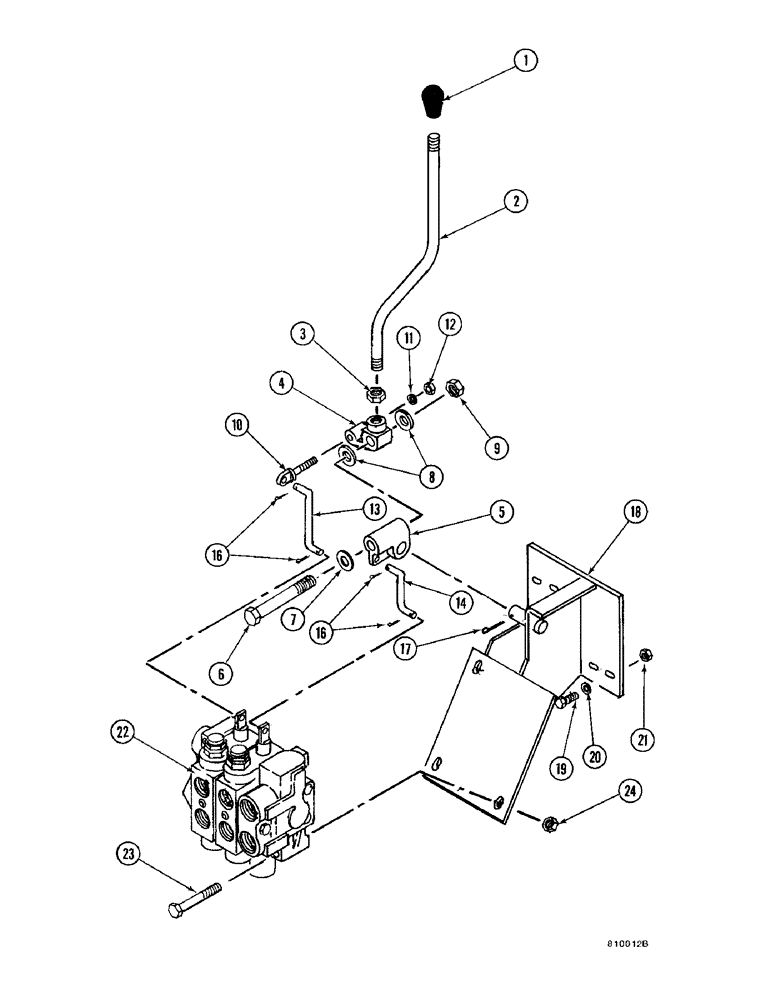

Запчасти Case FH4 (2-06) - LOADER CONTROL INSTALLATION (82) - FRONT LOADER & BUCKET

1

H182113

KNOB

1шт.

2

H293084

HANDLE

LEVER

1шт.

3

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

4

H302810

PIVOT

- lever

1шт.

5

H302851

LEVER

TRUNNION - lever

1шт.

6

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

7

195-533

WASHER,1/2", SAE

- Flat (1/2)

1шт.

8

H256305

WASHER

- friction

2шт.

9

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC hex lock (1/2)

1шт.

10

H217109

BOLT

BOLT - eye

1шт.

11

195-518

WASHER,1/4", SAE

- flat (1/4)

1шт.

12

131-1169

LOCK NUT,5/16"-24, GA

NUT, LOCK, 5/16"-24, GA

1шт.

13

H419200

LINK

- long

1шт.

14

H419192

LINK

- short

1шт.

16

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

4шт.

17

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

18

H663781

BRACKET - valve mounting

1шт.

19

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

20

195-518

WASHER,1/4", SAE

- flat (1/4)

4шт.

21

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

4шт.

22

H660290

VALVE

LOADER CONTROL VALVE ASSEMBLY - (See figure 2-14)

1шт.

23

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

3шт.

24

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC hex lock (3/8)

3шт.
