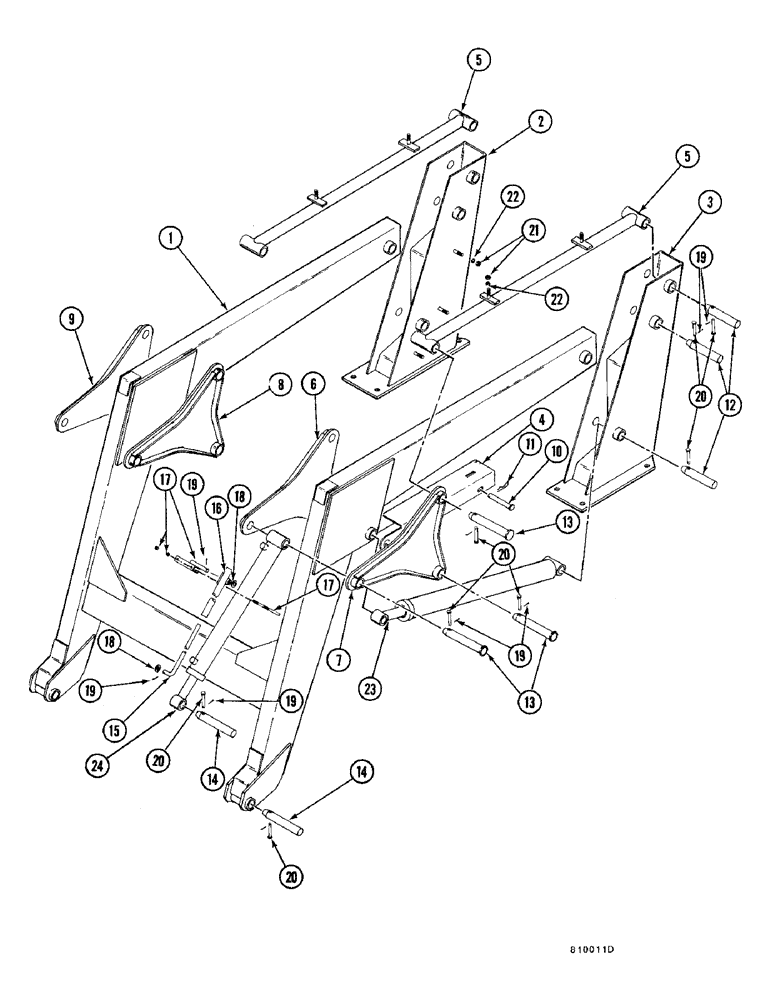

Запчасти Case FH4 (2-02) - LOADER ARMS, CYLINDER INSTALLATION (82) - FRONT LOADER & BUCKET

1

H663336

ARM ASSY.

LIFT ARM ASSEMBLY

1шт.

2

H663344

PEDESTAL - left-hand

1шт.

3

H663351

PEDESTAL - right-hand

1шт.

4

H663443

BRACKET - lift arm safety, left-hand

1шт.

5

H663450

LINK

- leveling

2шт.

6

H663468

PLATE - pivot, inside, left-hand

1шт.

7

H663476

PLATE - pivot, outside, left-hand

1шт.

8

H663484

PLATE

- pivot, inside, right-hand

1шт.

9

H663492

PLATE

- pivot, outside, right-hand

1шт.

10

H120683

PIN,15.88mm OD x 94.06mm L

- clevis (5/8 x 3-1/2)

1шт.

11

T54573

PIN

- hair

1шт.

12

T50016

PIN

- hdls (1-1/8 x 6-1/2)

6шт.

13

H418913

PIN - hdls (1-1/8 x 6-13/32)

6шт.

14

H418905

PIN - hdls (1-1/8 x 7)

4шт.

15

H418863

ROD - bucket level

1шт.

16

T55695

TUBE - rod support

1шт.

17

T55696

CLAMP

- tube

1шт.

18

195-533

WASHER,1/2", SAE

- Flat (1/2)

2шт.

19

132-46

COTTER PIN,1/8" x 3/4"

PIN, Split (Cotter), 1/8" x 3/4"

12шт.

20

H418871

CLEVIS PIN

PIN - clevis (5/16 x 2-1/4)

16шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

10шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

23

H662734

CYLINDER

LOADER ARM CYLINDER ASSEMBLY - (See figure 2-16)

2шт.

24

H662734

CYLINDER

LOADER BUCKET CYLINDER ASSEMBLY - (See figure 2-16)

2шт.

Grease Fitting where Ref.14 is located on lift arm 219-15.

1шт.
