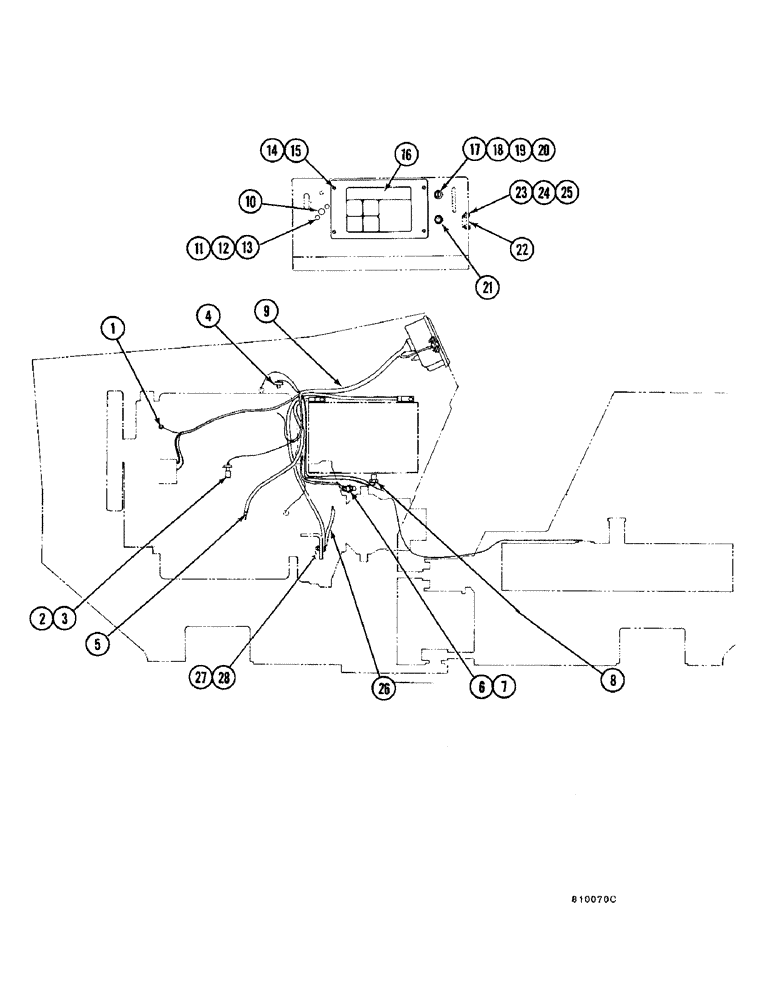

Запчасти Case FH4 (1-31A) - ELECTRICAL SYSTEM - 2.1 LITRE DIESEL ENGINE (55) - ELECTRICAL SYSTEMS

1

D70089

TRANSMITTER

SENDER - water

1шт.

2

D67721

SWITCH

- air cleaner

1шт.

3

221-335

COUPLING,Pipe, 1/8" NPT

- pipe (1/8)

1шт.

4

H342766

SWITCH

- oil filter

1шт.

5

H107979

NEG BATTERY CABLE

CABLE - battery (#4 x 36")

2шт.

6

H406363

NEUTRAL START SWITCH

SWITCH - neutral start

2шт.

7

H380386

NUT

- palnut

2шт.

8

H81935

SENDER UNIT

SENDER - hydraulic oil

1шт.

9

H416149

HARNESS

- wiring

1шт.

10

H35048

IGNITION SWITCH

SWITCH - engine heater

1шт.

11

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

12

195-518

WASHER,1/4", SAE

- flat (1/4)

2шт.

13

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

14

178-212

SCREW - rd hd (10-24 x 1/2)

4шт.

15

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, #10-24, GA

4шт.

16

H662247

CLUSTER

- instrument (See figure 1-31C)

1шт.

17

A77312

SWITCH

- ignition

1шт.

18

A77313

SET OF 2 KEYS

KEYS

1шт.

19

A77314

NUT

1шт.

20

F67231

WASHER

SPACER

1шт.

21

H409987

LAMP

INDICATOR - engine heater

1шт.

22

D37252

BREAKER

- circuit (10 amp)

1шт.

23

163-32

SCREW,Hex, #10 - 24 x 1/2"

BOLT - NC HH (#10 x 1/2)

2шт.

24

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

25

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, #10-24, GA

2шт.

26

H256990

CABLE PULLING GRIP

CABLE - solenoid (#4 x 10)

1шт.

27

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

28

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC hex (3/8)

1шт.

Cable 24" H167726.

1шт.

Cable 52" H302950

1шт.
