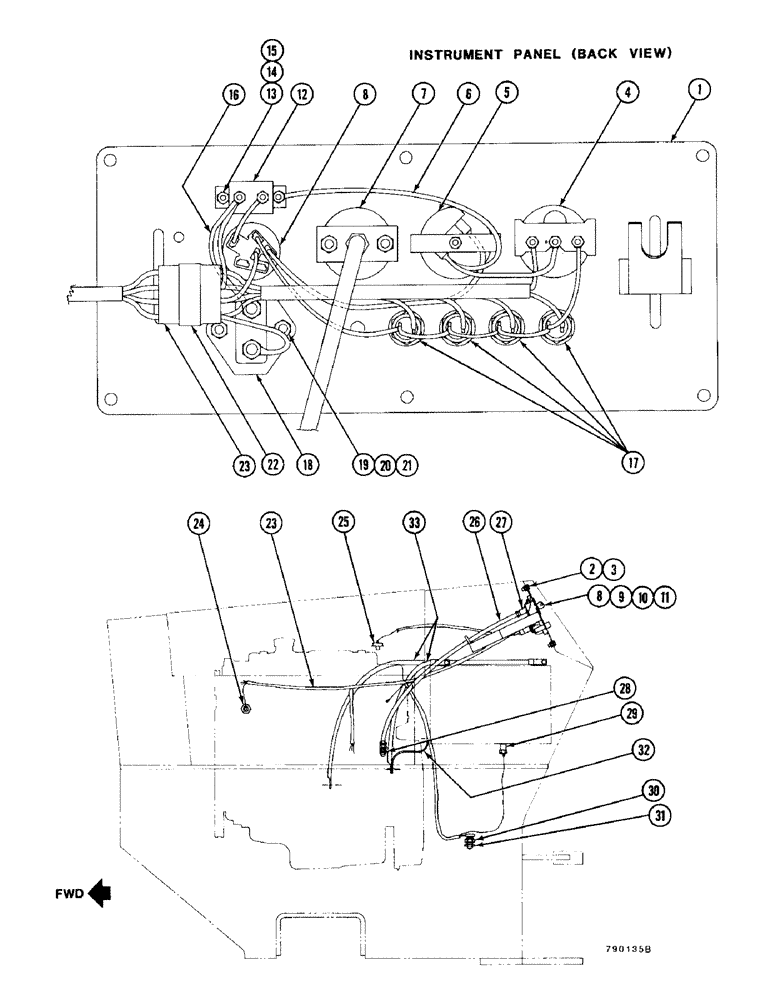

Запчасти Case FH4 (1-30) - ELECTRICAL SYSTEM - 1.8 LITRE DIESEL ENGINE (55) - ELECTRICAL SYSTEMS

1

H640581

PANEL - instrument, Includes: Refs. 2, 3

1шт.

2

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

3

H346650

NUT

- U (5/16)

6шт.

4

H347872

GAUGE ASSY.

GAUGE - water temperature

1шт.

5

H347898

HOURMETER

1шт.

6

H377853

WIRE -, Serial Range: gauges-ground

1шт.

7

H331850

GAUGE ASSY.

GAUGE - engine oil pressure

1шт.

8

A77312

SWITCH

- ignition, Includes: Refs. 9, 10

1шт.

9

F67231

WASHER

- special (1-1/32 I.D. x 1-1/2 O.D. x 16 GA)

1шт.

10

A77314

NUT

1шт.

11

A77313

SET OF 2 KEYS

KEY

1шт.

12

D37252

BREAKER

- circuit (10 amp), Includes: Refs. 13-15

1шт.

13

163-32

SCREW,Hex, #10 - 24 x 1/2"

BOLT - NC HH (#10 x 1/2)

2шт.

14

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

15

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, #10-24, GA

2шт.

16

H377887

WIRE - circuit breaker to glow plug switch

1шт.

17

H603852

LIGHT

- indicator

4шт.

18

H35048

IGNITION SWITCH

SWITCH - glow plug, Includes: Refs. 19, 21

1шт.

19

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

20

195-518

WASHER,1/4", SAE

- flat (1/4)

2шт.

21

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

22

H377739

HARNESS - instrumental panel wiring

1шт.

23

H415976

HARNESS - main wiring

1шт.

24

H344580

SENDER UNIT

SENDER - water temperature

1шт.

25

H342766

SWITCH

SENDER - hydraulic oil filter

1шт.

26

H71894

HOSE - engine oil pressure

1шт.

27

221-335

COUPLING,Pipe, 1/8" NPT

- pipe (1/8)

1шт.

28

218-909

HYD CONNECTOR,1/8" NPT x 1/4" NPSM Fem

ADAPTER

1шт.

29

H81935

SENDER UNIT

SENDER - hydraulic oil temperature

1шт.

30

H406363

NEUTRAL START SWITCH

SWITCH - neutral start, Includes: Ref. 31

2шт.

31

H380386

NUT

PALNUT

2шт.

32

H377838

WIRE - engine to frame ground

1шт.

33

CABLE - battery (See figure 1-26)

2шт.
