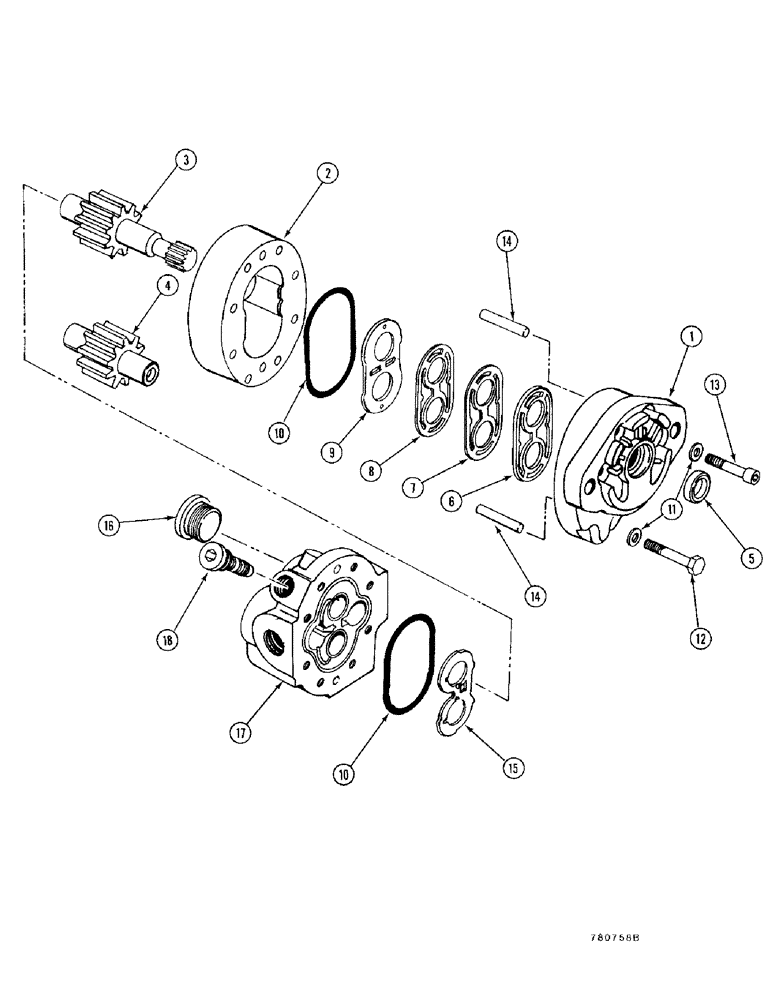

Запчасти Case FH4 (1-62) - STEERING PUMP ASSEMBLY (41) - STEERING

H626895

PUMP

ASSEMBLY - loader/steering, Includes: Refs. 1-18

1шт.

1

R31026

COVER

FRONT COVER ASSEMBLY

1шт.

2

H380972

HOUSING

SECTION - center

1шт.

3

H643924

DRIVE GEAR ASSEMBLY

1шт.

4

H643932

GEAR, IDLER

IDLER GEAR ASSEMBLY

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL

1шт.

6

NSS

NOT SOLD SEPARAT

PLATE - wear

1шт.

7

NSS

NOT SOLD SEPARAT

SHIELD - heat

1шт.

8

NSS

NOT SOLD SEPARAT

GASKET

1шт.

9

NSS

NOT SOLD SEPARAT

V-SEAL

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING

2шт.

11

NSS

NOT SOLD SEPARAT

WASHER

8шт.

12

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

6шт.

13

61-532

HEX SOC SCREW,5/16"-18 x 2"

BOLT - socket hd

2шт.

14

G15011

DOWEL

PIN - dowel

2шт.

15

NSS

NOT SOLD SEPARAT

PLATE - thrust

1шт.

16

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

1шт.

17

H643940

BACK COVER ASSEMBLY

1шт.

18

H643957

VALVE, PRESSURE RELI

RELIEF VALVE ASSEMBLY

1шт.
