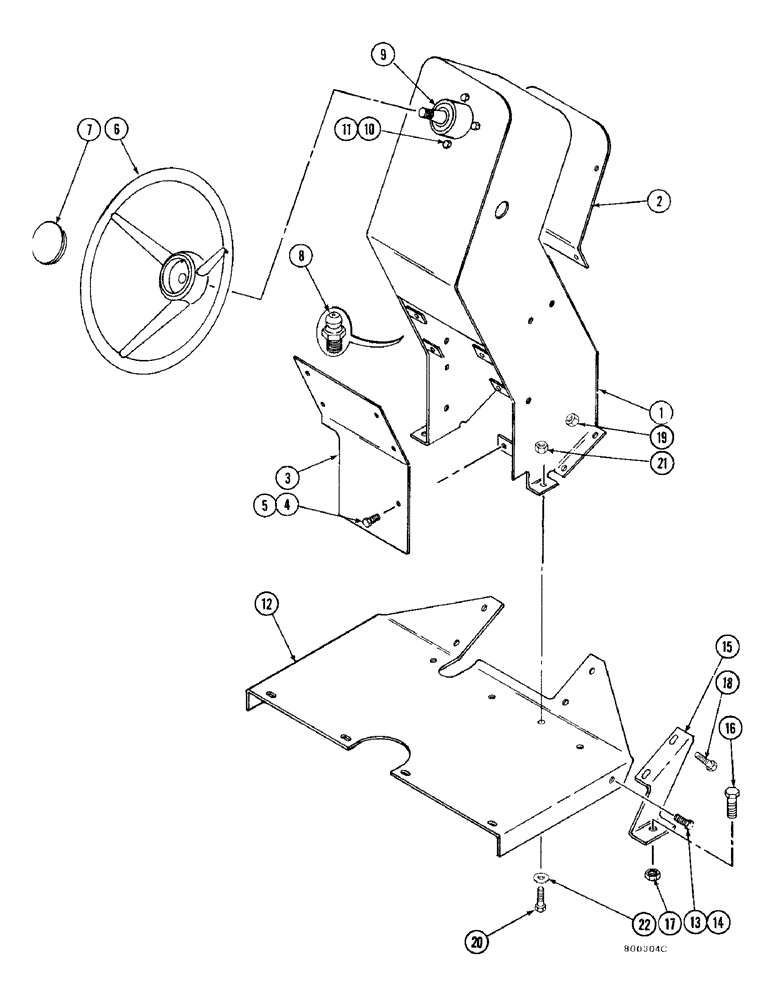

Запчасти Case FH4 (1-36) - STEERING TOWER INSTALLATION (41) - STEERING

1

H655936

TOWER - steering

1шт.

2

H404194

COVER

- tower, front

1шт.

3

H404426

COVER

- tower, rear

1шт.

4

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

9шт.

5

H346650

NUT

- U (5/16)

9шт.

6

H393280

WHEEL (STEERING)

WHEEL - steering

1шт.

7

H256701

CAP

- steering wheel

1шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

9

H651703

GUIDE

STEERING CONTROL VALVE ASSEMBLY - (See figure 1-66)

1шт.

10

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

12

H404442

DIVIDER BOARD

FLOOR BOARD

1шт.

13

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

14

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC hex (3/8 - lock)

2шт.

15

H404467

BRACKET

- right

1шт.

15

H404475

BRACKET

- left (not shown)

1шт.

16

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

17

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC hex (1/2 - lock)

2шт.

18

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

19

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC hex (3/8 - lock)

4шт.

20

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- NC HH (3/8 x 1-1/4)

2шт.

21

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC hex C/L (3/8)

2шт.

22

195-525

WASHER,3/8", SAE

2шт.
