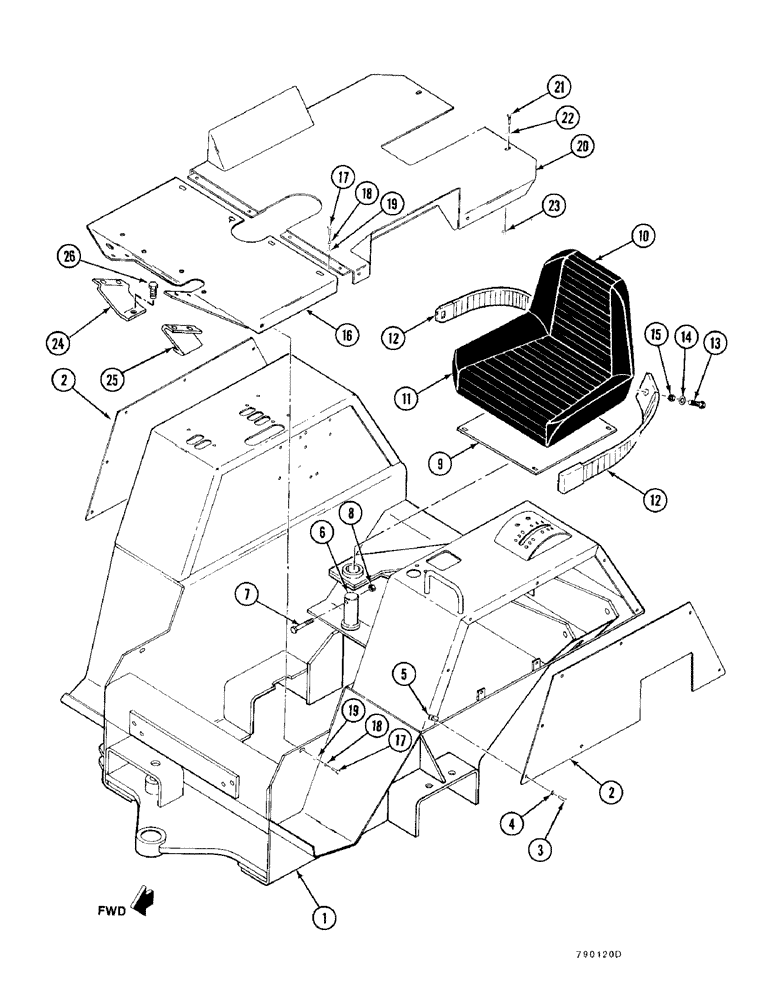

Запчасти Case FH4 (1-04) - REAR FRAME, SEAT, FLOOR PLATE INSTALLATION (39) - FRAMES AND BALLASTING

1

H637116

FRAME

- rear

1шт.

Ref. 1, there is a plate part number H637108.

1шт.

2

H372953

PANEL

- side console, Includes: Refs. 3, 4

2шт.

3

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

18шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

18шт.

5

H346650

NUT

- U (5/16)

18шт.

6

H315531

AXLE PIN

PIN - seat mounting

1шт.

7

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

8

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC hex C/L (3/8)

1шт.

9

H623496

SEAT

PLATE - seat mounting

1шт.

H594556

SEAT

SET ASSEMBLY, Includes: Refs. 10, 11

1шт.

10

H297515

CUSHION ASSY.

CUSHION - seat back

1шт.

11

H297507

SEAT

CUSHION - seat

1шт.

12

H594564

SAFETY BELT ,3.00" W

3.00" W

1шт.

13

114-302

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5, Full Thd

- NF HH (7/16 x 1-1/4)

2шт.

14

H277566

WASHER

- flat

2шт.

15

131-1170

LOCK NUT,7/16"-20, GA

NUT, LOCK, 7/16"-20, GA

2шт.

16

H404442

DIVIDER BOARD

FLOOR BOARD - front, Includes: Refs. 17-19

1шт.

17

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

19

195-521

WASHER,5/16", SAE

- flat (5/16)

6шт.

20

H640649

DIVIDER BOARD

FLOOR BOARD - rear, Includes: Refs. 21-23

1шт.

21

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

22

195-521

WASHER,5/16", SAE

- flat (5/16)

2шт.

23

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC hex C/L (5/16)

2шт.

24

H404467

BRACKET

- R.H.

1шт.

25

H404475

BRACKET

- L.H.

1шт.

26

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.
